Glove Box Lamp Connector End View

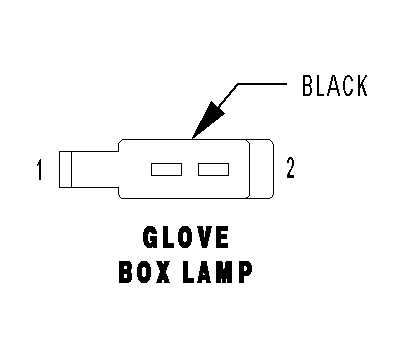

GLOVE BOX LAMP - BLACK 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	20BR	GROUND
1	20BR	GROUND
2	16BK/BL	FUSED B(+)
2	16BK/BL	FUSED B(+)
