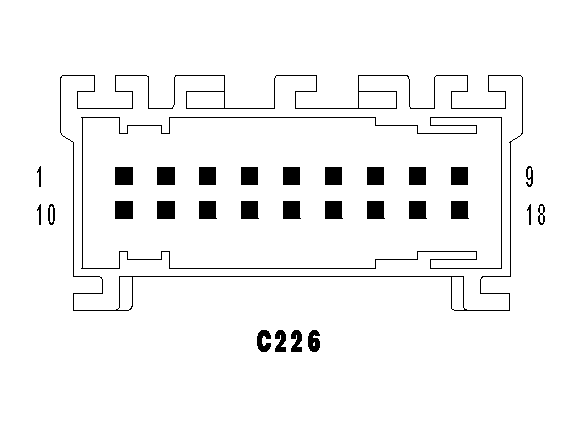

Cockpit Side Inline Connector End View (C226)

C226 - (COCKPIT SIDE)

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT
1	18GY
2	20BR/VT
3	20BR/RD
4	20BR/DG
5	22BL
6	22RD/WT
7	18BL/DG
8	22BR/YL
9	22BL/RD
10	20DG/YL
11	20BL/YL
12	22YL
13	20RD/WT
14	20BR/YL
15	-
16	-
17	-
18	-
