Cockpit Side Inline Connector End View (C206)
Cockpit Side Inline Connector End View (C206)

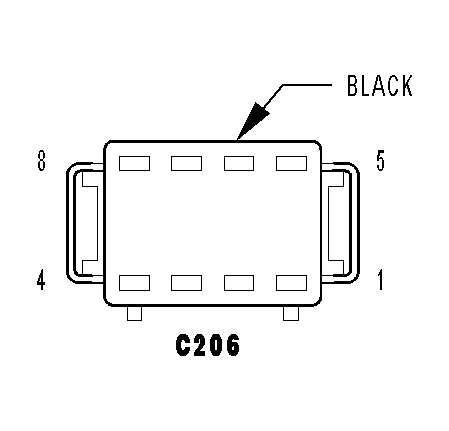

C206 - BLACK (COCKPIT SIDE)
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
1
22BK/RD
2
20BL
3
20BK
4
20BR/GY
5
20BK/WT
5
22BK/WT
6
-
7
22RD/YL
8
22DG
Courtesy of DAIMLERCHRYSLER CORP.
