Airbag Off Indicator Lamp Connector End View
Airbag Off Indicator Lamp Connector End View

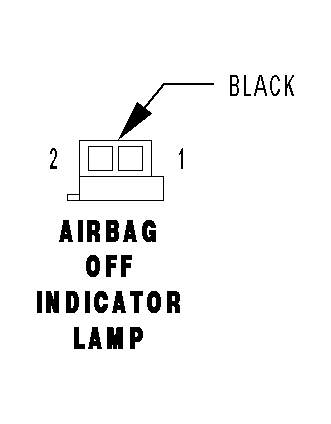

AIRBAG OFF INDICATOR LAMP - BLACK 2 WAY
Courtesy of DAIMLERCHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
20BK
AIRBAG OFF INDICATOR DRIVER
2
20PK/YL/DG
FUSED IGNITION SWITCH OUTPUT
