Vapor Canister: Removal

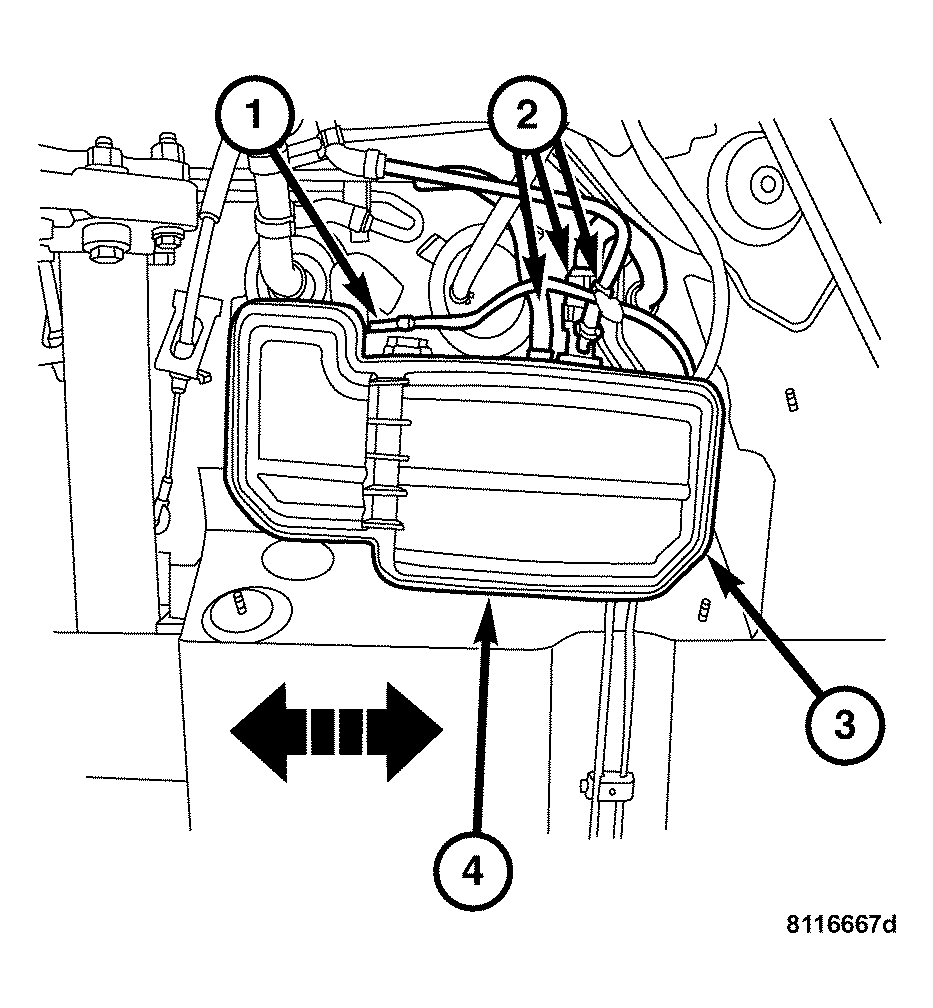

Fig 1: Locating EVAP Canister & Hoses
GC0033608Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect the negative battery cable.
  2. Raise and support the vehicle.
  3. Remove the shield retaining nuts from splash shield.
  4. Remove the splash shield.
  5. Carefully disconnect the vapor/vacuum/vent hoses (2).
  6. Slide the EVAP canister (4) to the left, off of mounting bracket.
  7. Disconnect the charcoal canister shutoff valve harness connector (1).

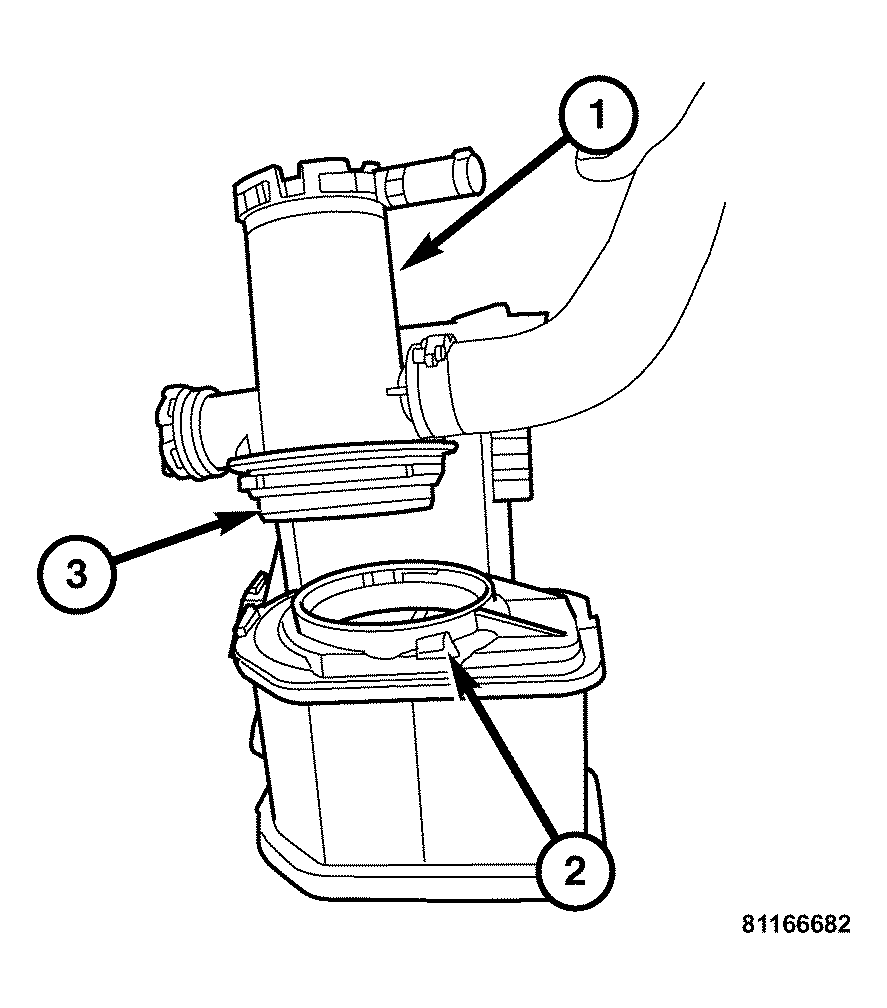

    Fig 2: Locating Shutoff Valve & O-Ring
    GC0033609Courtesy of DAIMLERCHRYSLER CORP.
  8. Depress the locking tab (2) to release charcoal canister shutoff valve (1).
  9. While holding the lock tab (2) in release position, turn charcoal canister shutoff valve (1) clockwise and remove from EVAP canister.
  10. Discard the old O-ring (3).
