Recliner Motor: Installation

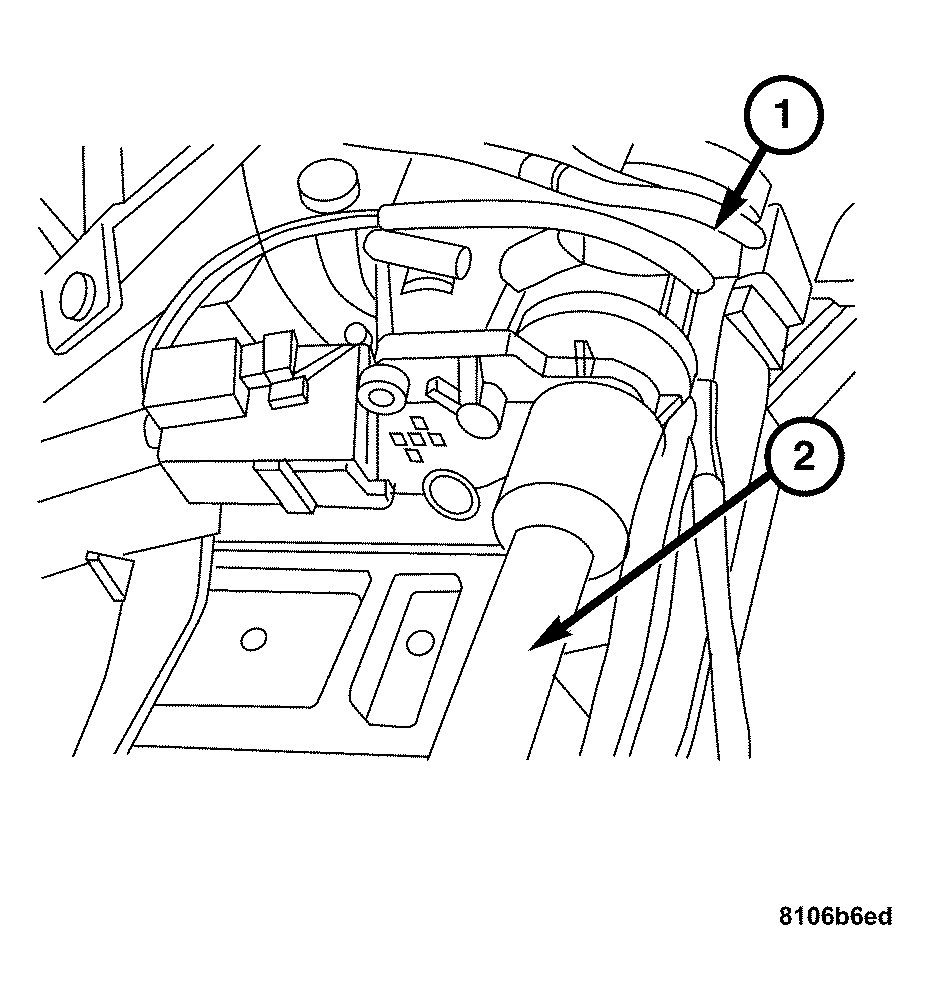

Fig 1: Identifying Seat Back Frame & Shaft

Courtesy of DAIMLERCHRYSLER CORP.

NOTE: Insure the rubber mount for the attachment bolt is seated properly.

Install the shaft (2) to the seat back frame (1) and install the snap ring.
NOTE: Insure the harness is routed and secured in its original position to avoid potential interference with moving parts.

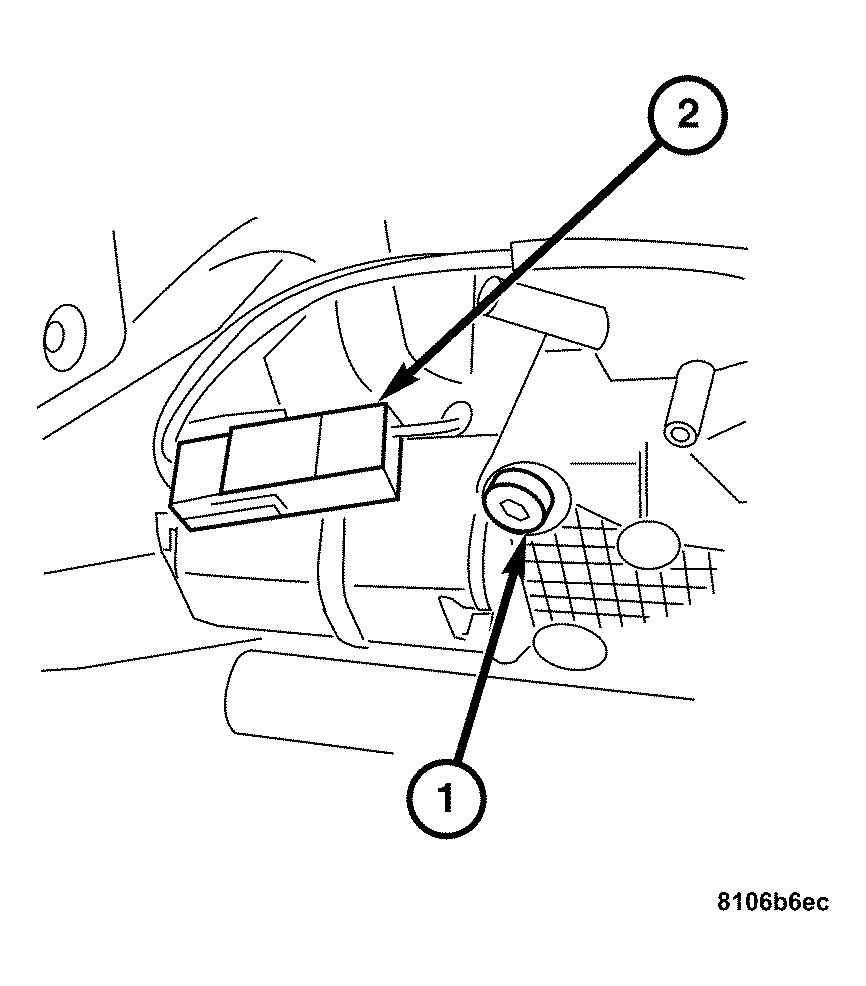

Fig 2: Disconnecting/Connecting Recliner Motor Harness Connector
Courtesy of DAIMLERCHRYSLER CORP.
Position the recliner motor to the seat back frame and install the attachment bolt (1). Tighten the motor bolt to 4 N.m (35 in. lbs.).
Connect the recliner motor harness connector (2).
Install the seat back cover. (Refer to BODY/SEATS/SEAT BACK COVER - INSTALLATION) .
Connect the negative battery cable.
