Power Seat Track: Installation

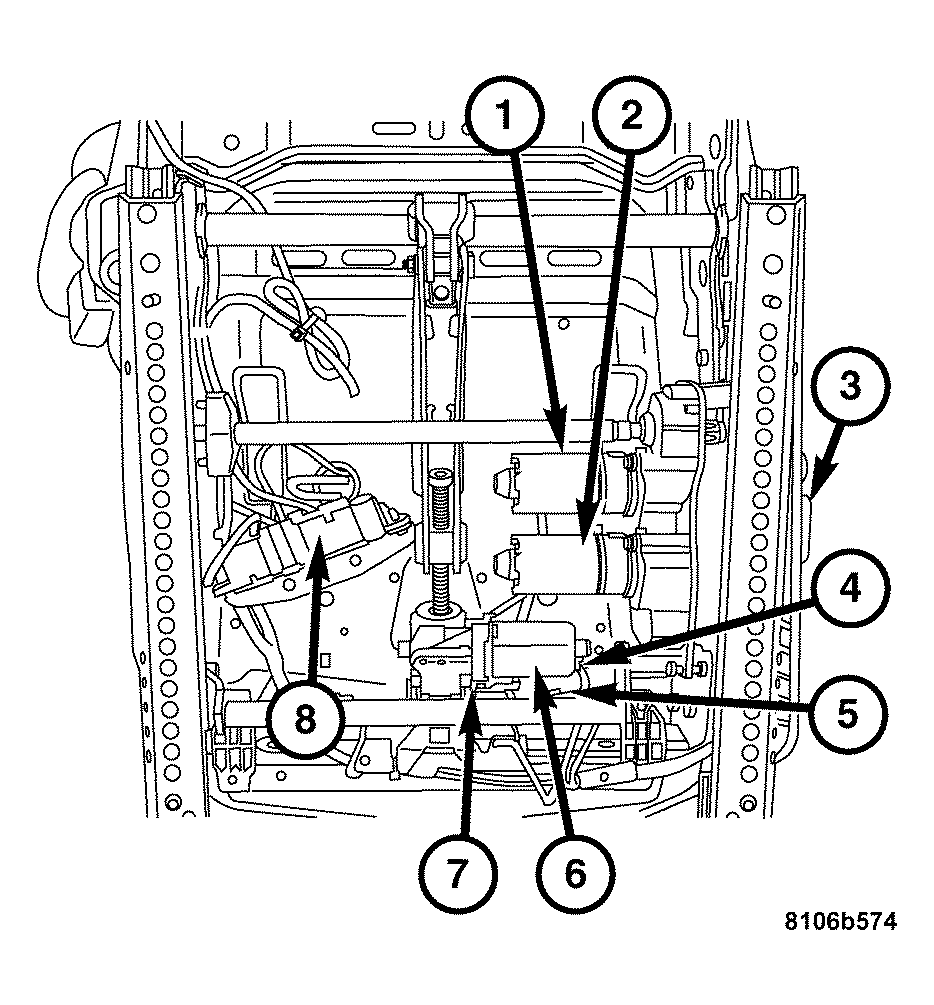

Fig 1: Identifying Seat Electrical Components
GC0035543Courtesy of DAIMLERCHRYSLER CORP.
NOTE: Insure wire harnesses are routed and secured in their original position to avoid potential interference with moving parts.
  1. Position the power seat track assembly over the seat cushion and align the mounting points.
  2. Install the power seat track power harness connector (8).

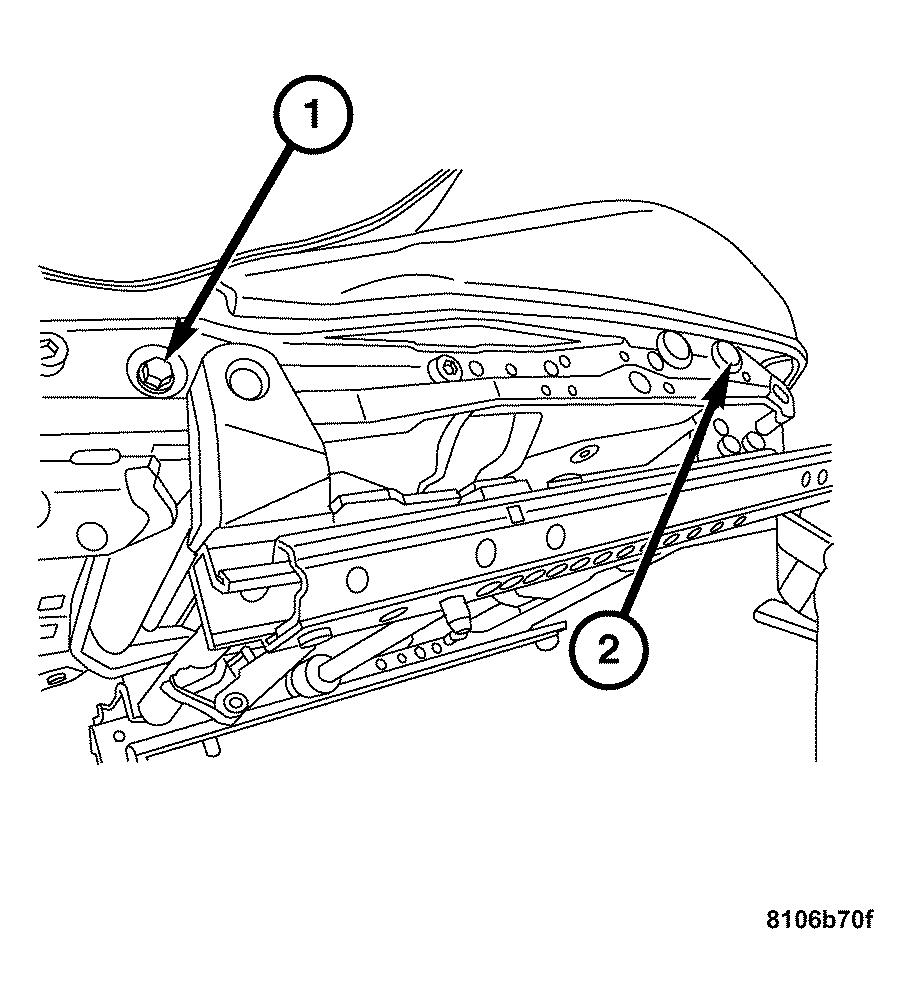

    Fig 2: Identifying Attachment Bolts
    GC0035550Courtesy of DAIMLERCHRYSLER CORP.
  3. Install the power seat track front inboard and outboard attachment bolts (2).
  4. Tilt the rear of the track mechanism inward and install the power seat track rear inboard and outboard attachment bolts (1).
  5. Install the power seat switch assembly. (Refer to ELECTRICAL/POWER SEATS/DRIVER SEAT SWITCH - INSTALLATION) .
  6. Install the front seat. (Refer to BODY/SEATS/SEAT - INSTALLATION) .
