Fluid Cooler: Installation

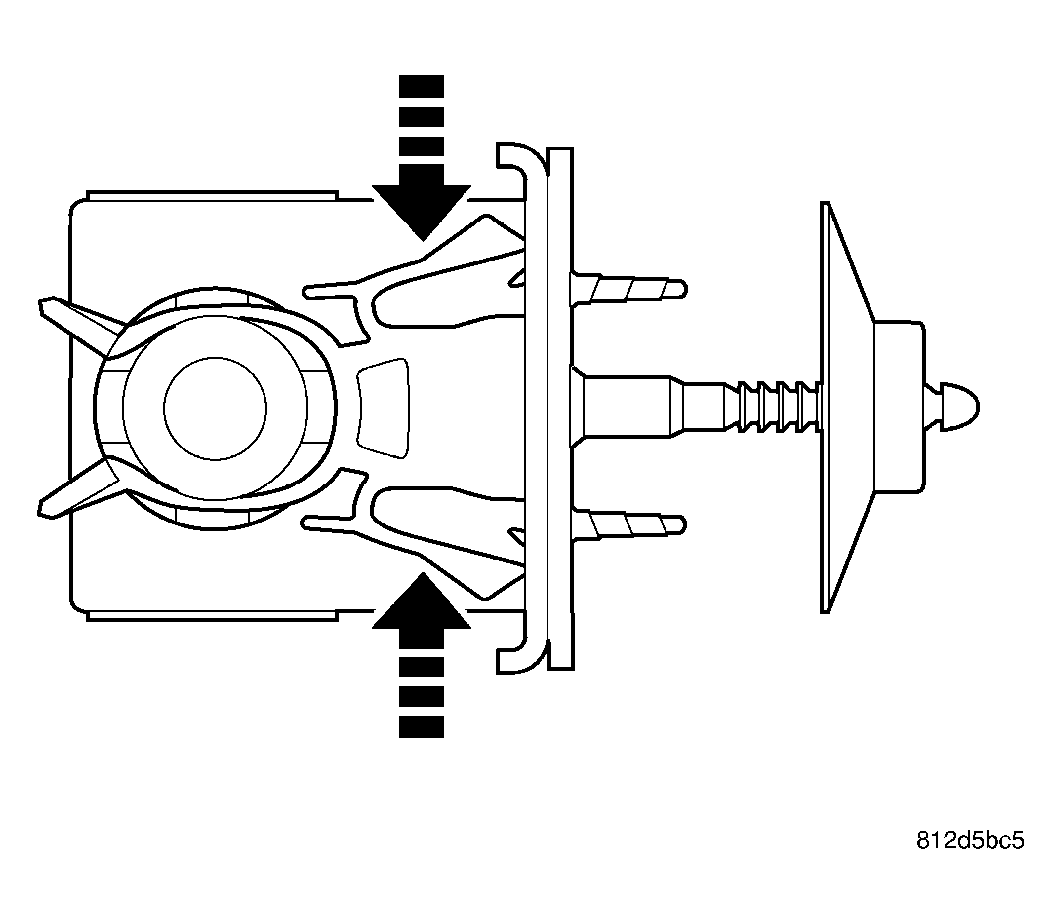

Fig 1: COOLER RETAINER CLIPS

Courtesy of DAIMLERCHRYSLER CORP.

Install cooler over mounting clips attached to cooling module. Push cooler past clip retaining tabs allowing it to lock into place.

Fig 2: FLUID COOLER & HOSES
Courtesy of DAIMLERCHRYSLER CORP.
Slide return hose to reservoir (3) onto left end of cooler (2). Install clamp securing hose in place.
Slide return hose from gear (3) onto right end of cooler (2). Install clamp securing hose in place.
Install belly pan. (Refer to BODY/EXTERIOR/BELLY PAN - INSTALLATION)
Lower vehicle.

Fig 3: LX BATTERY AND CABLES
Courtesy of DAIMLERCHRYSLER CORP.
Connect battery negative cable (2) to battery post. It is important that this is performed properly. (Refer to ELECTRICAL/BATTERY SYSTEM - STANDARD PROCEDURE)
Fill pump reservoir with fluid and perform pump initial operation procedure. (Refer to STEERING/PUMP - STANDARD PROCEDURE)
