Installation - Lower Control Arm

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

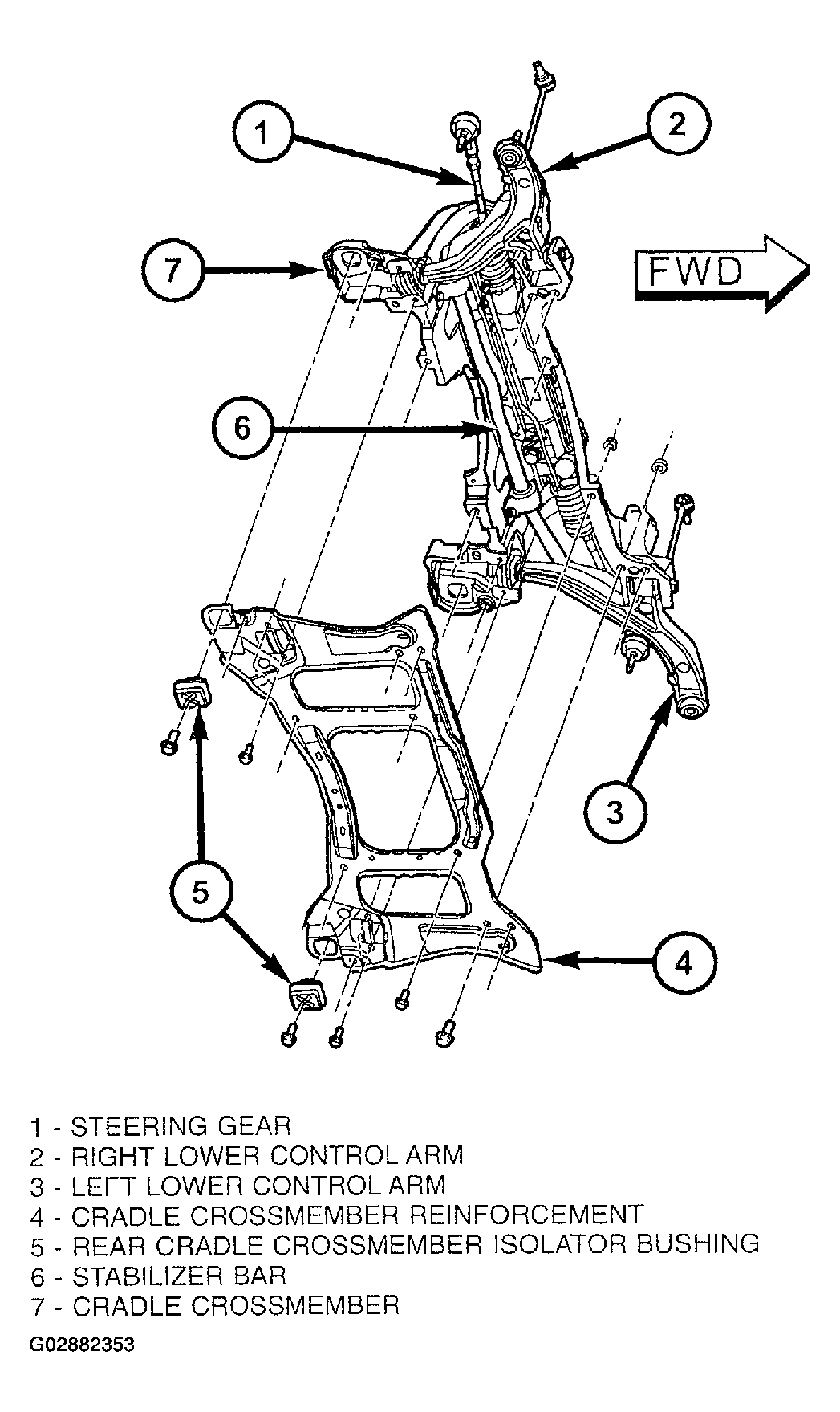

  1. Position lower control arm assembly into front suspension cradle crossmember guiding bushings into mounting position (See Figure ).
  2. Install NEW pivot bolt attaching front bushing of lower control arm to front suspension cradle crossmember (See Fig 1 ). Do not tighten or torque pivot bolt at this time.

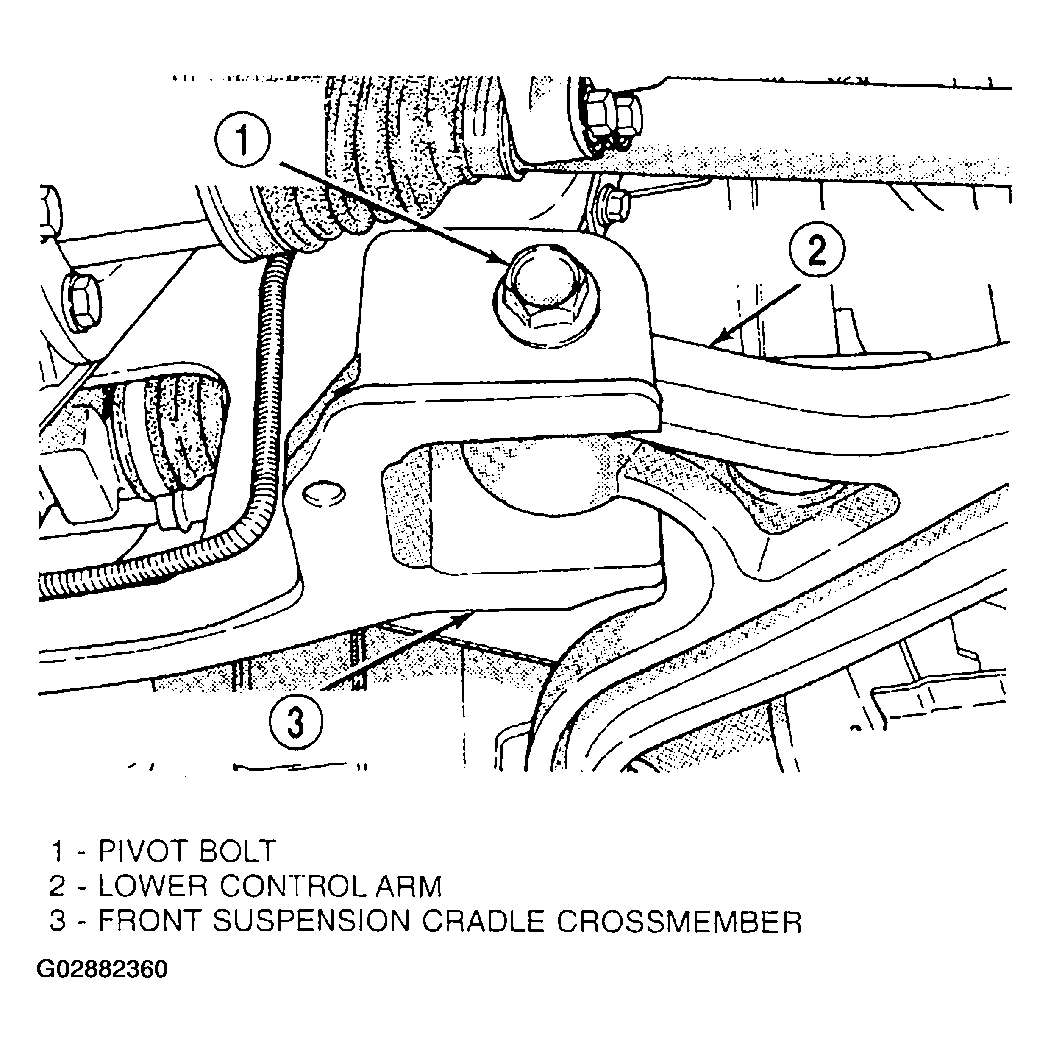

    Fig 1: Installing Lower Control Arm Bushing Pivot Bolt
    G02882360Courtesy of DAIMLERCHRYSLER CORP.
  3. Install the reinforcement on the front suspension cradle crossmember and install the bolts attaching the reinforcement to the cradle crossmember (Figure ). Tighten the M-14 size bolts to a torque of 153 N-m (113 ft. lbs.). Tighten the M-12 size bolts to a torque of 106 N-m (78 ft. lbs.).
  4. Install the lower control arm rear bushing retainer bolts through reinforcement on each side of each lower control arm rear bushing. Tighten these M-10 size bolts to a torque of 61 N-m (45 ft. lbs.).
  5. Install the two bolts and bushings attaching the reinforcement and rear of cradle crossmember to body of vehicle (See Figure ). Tighten bolts to a torque of 163 N-m (120 ft. lbs.).

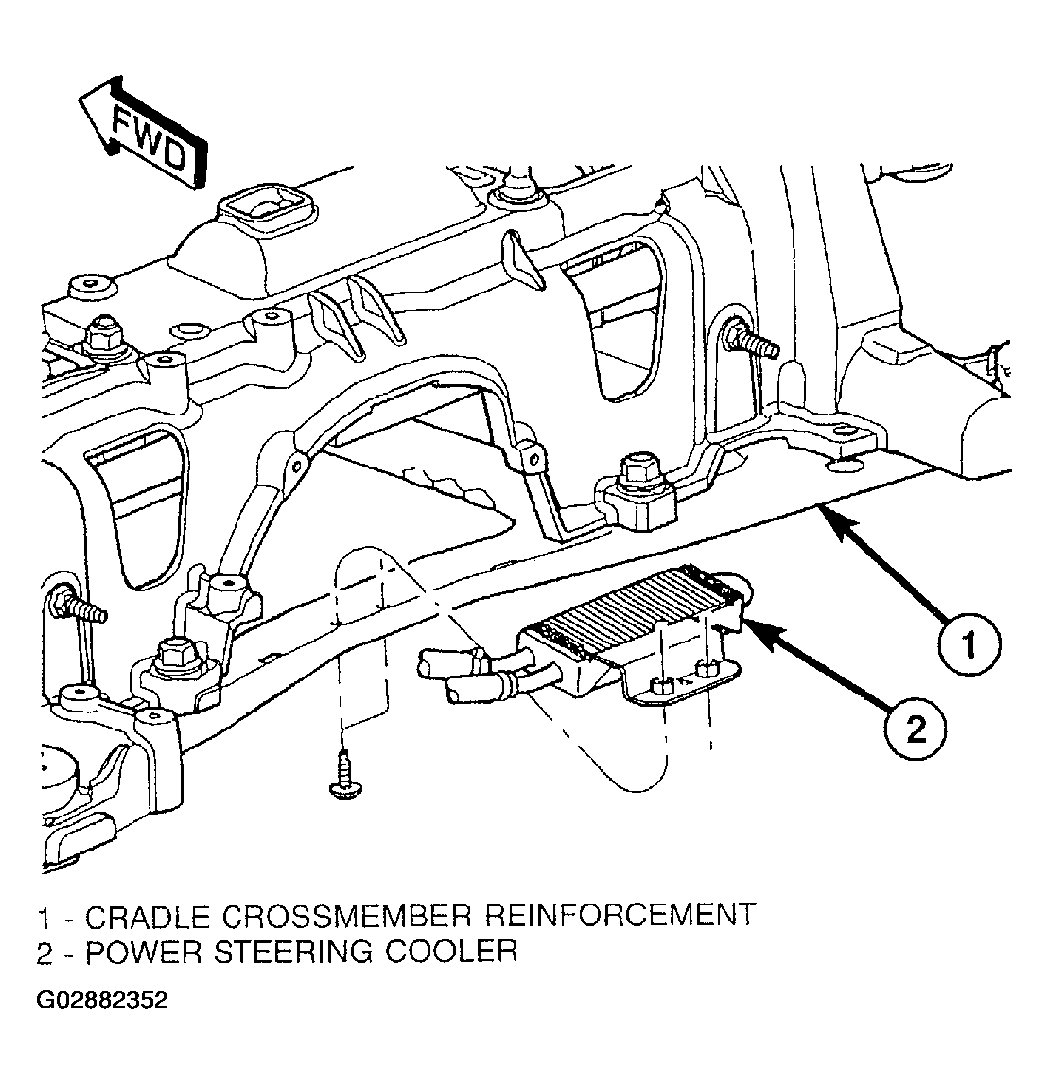

  6. Install the power steering cooler (See Figure ). Tighten bolts to a torque of 11 N-m (100 in. lbs.).
  7. Reinstall steering knuckle, brake rotor and caliper. (Refer to INSTALLATION - STEERING KNUCKLE  )
    CAUTION: When locating jack stands under lower control arms, do not place the jack stands under the ball joints (See Fig 2 ).
  8. Position jack stands under the lower control arms as close to the ball joints as possible (See Fig 2 ). Lower the vehicle onto the jack stands until the jack stands are supporting the total weight of the vehicle.

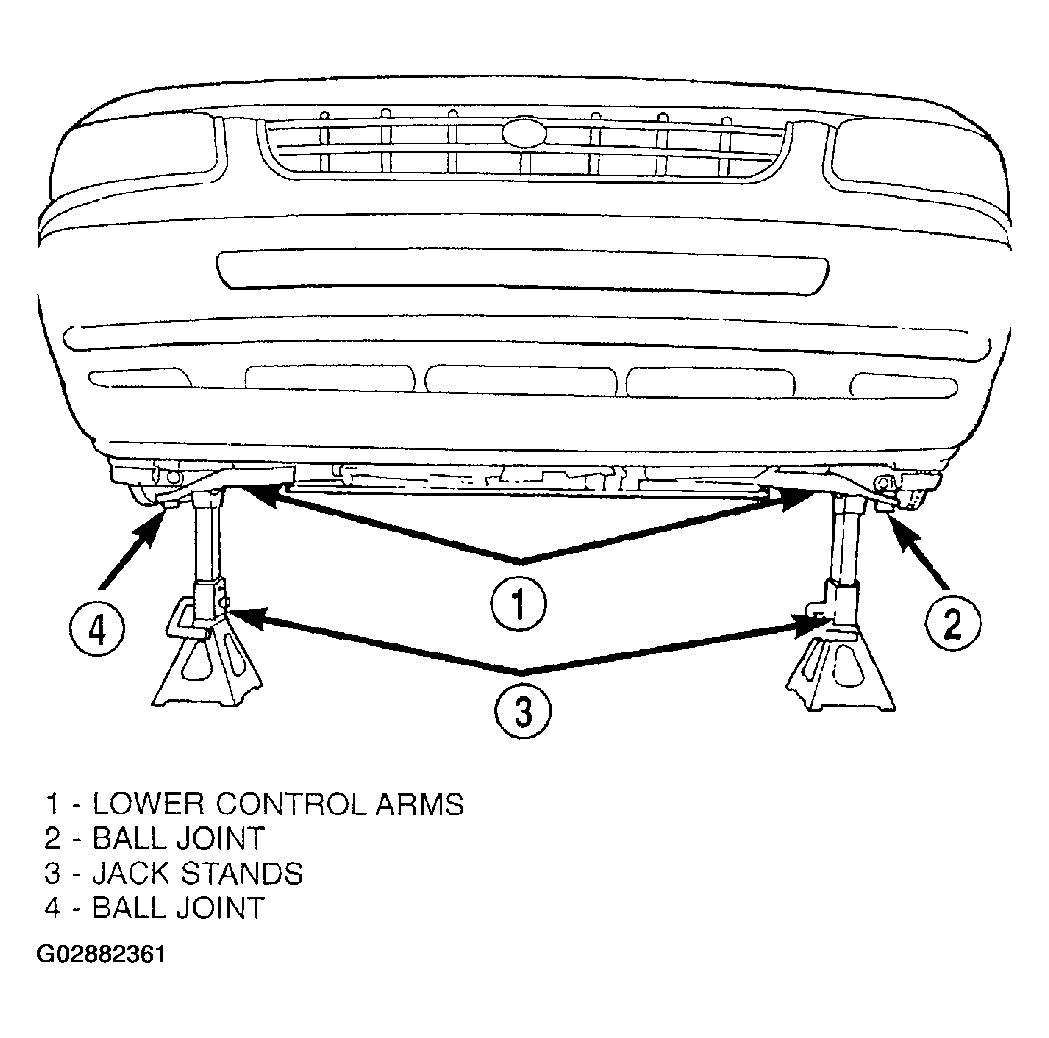

    Fig 2: Jack Stands Supporting Vehicle Weight
    G02882361Courtesy of DAIMLERCHRYSLER CORP.
  9. Tighten front lower control arm pivot bolt to a torque of 183 N-m (135 ft. lbs.).
  10. Install the wheel and tire assembly. Install and tighten the wheel mounting stud nuts in proper sequence until all nuts are torqued to half specification. Then repeat the tightening sequence to the full specified torque of 135 N-m (100 ft. lbs.).
  11. Raise vehicle, remove jack stands and lower vehicle to the ground.
  12. Perform front wheel alignment as necessary. (Refer to SPECIFICATIONS & PROCEDURES )
