Steering Wheel: Installation

  1. Install remote audio control switches on steering wheel. (Refer to INSTALLATION )
  2. Install speed control switches on steering wheel. (Refer to INSTALLATION )
  3. Match splines on steering wheel hub with that on steering shaft and slide steering wheel onto column shaft.

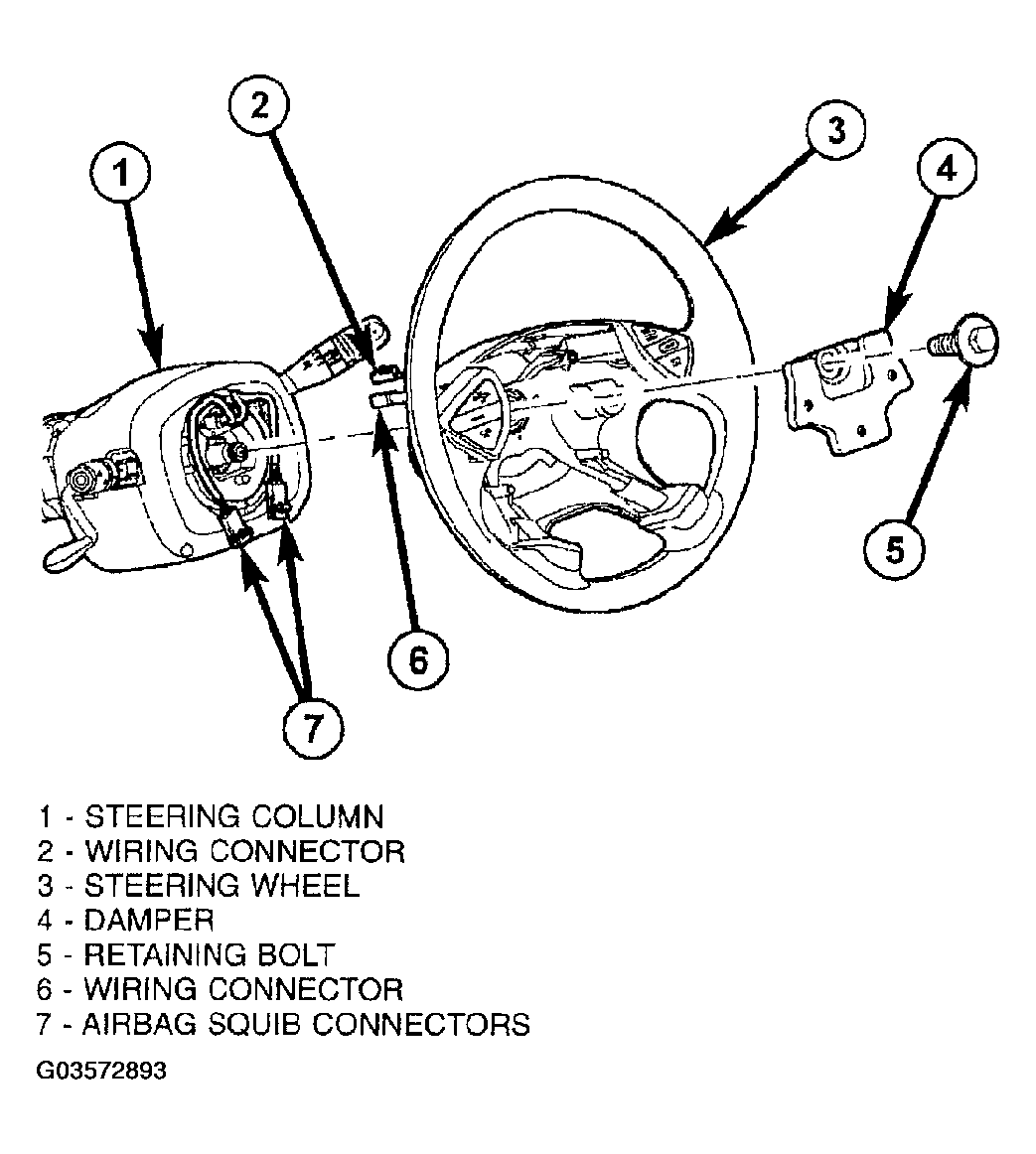

  4. Install damper on steering wheel (Figure ).
  5. Install steering wheel retaining bolt (Figure ). Tighten bolt to 61 N.m (45 ft. lbs.) torque.

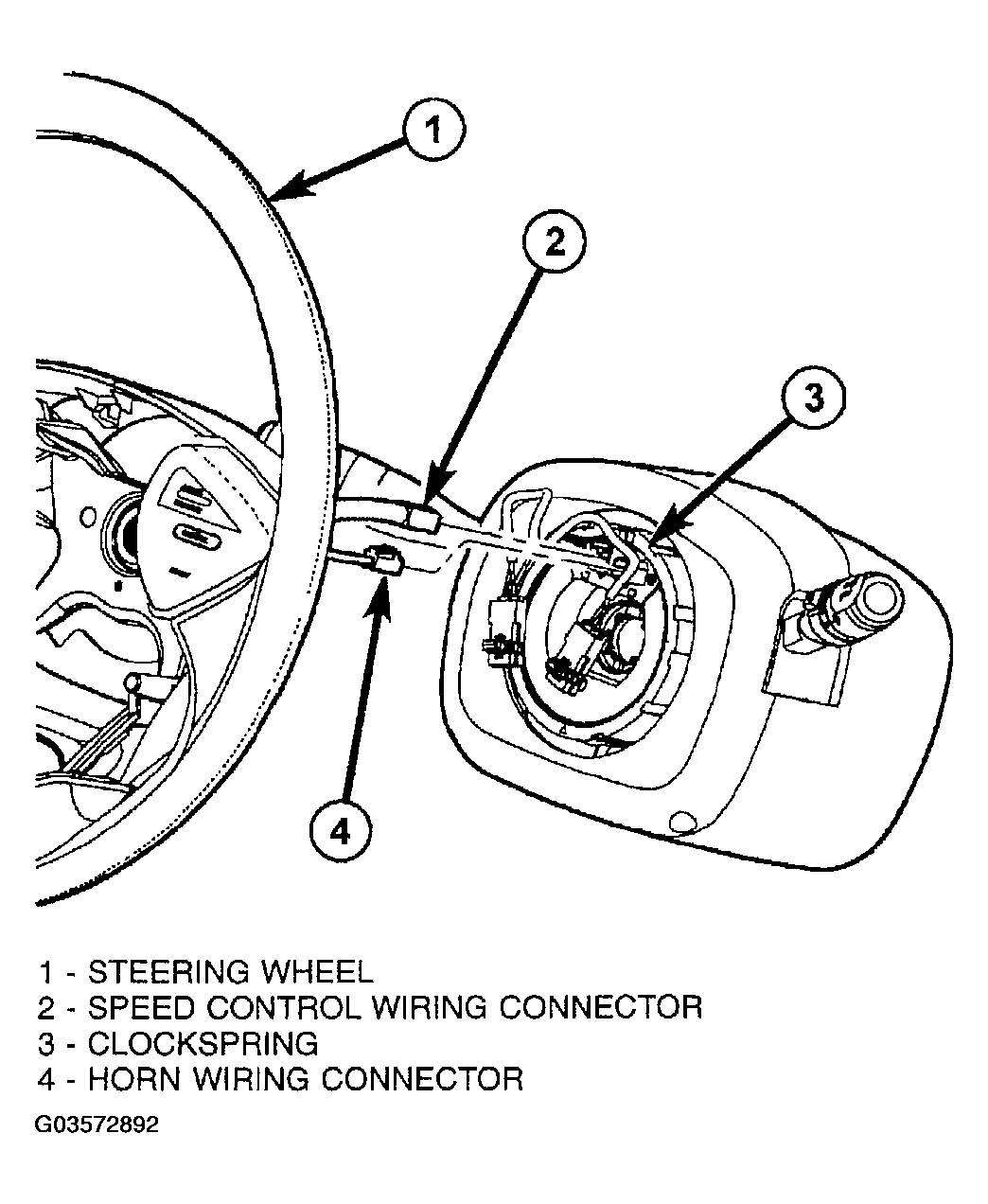

  6. Connect speed control wiring connector at clockspring (Figure ).

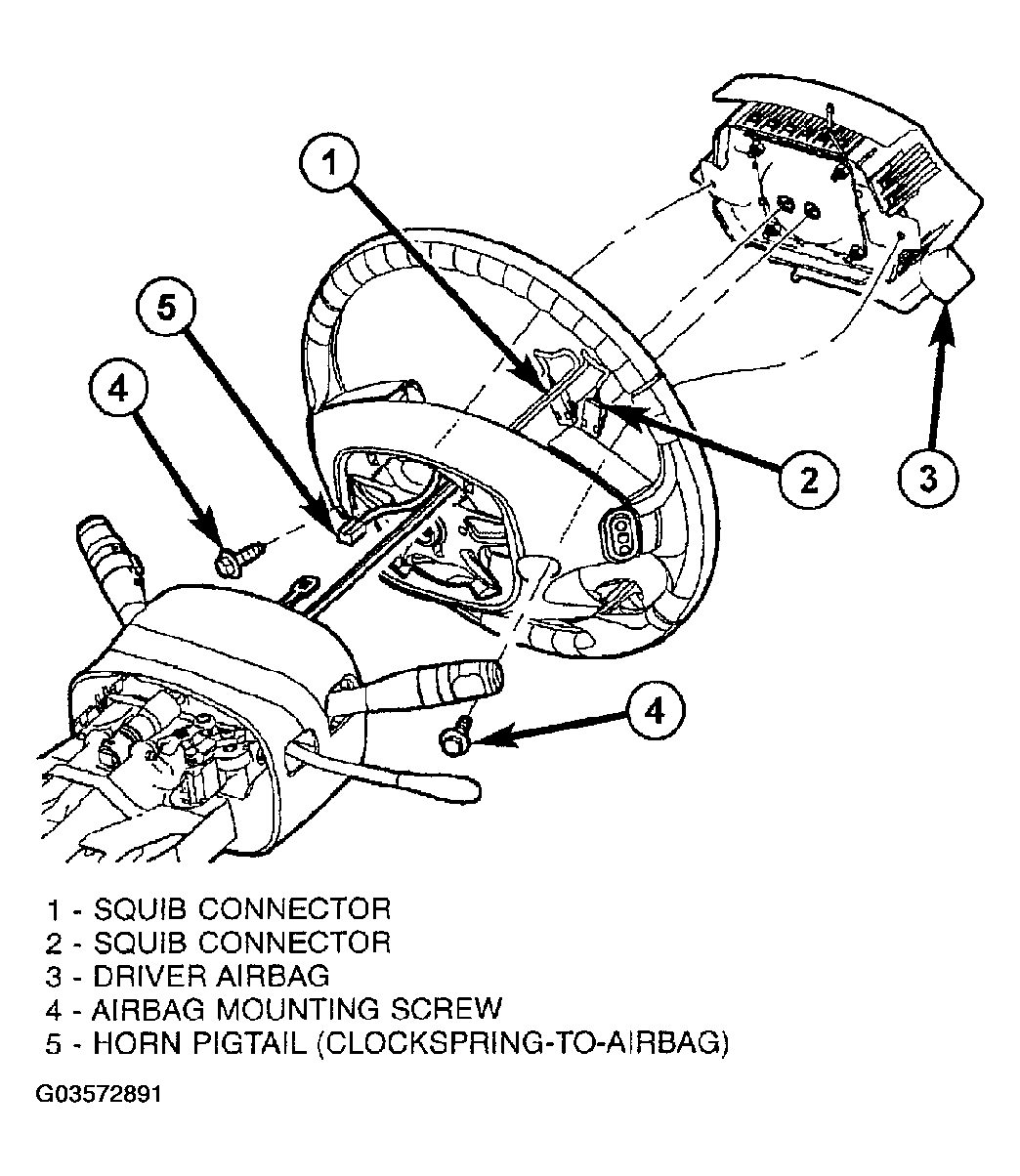

  7. Connect two airbag squib connectors and horn connector to driver airbag (Figure ).
  8. Place driver airbag on steering wheel and install mounting screws (Figure ). Tighten screws to 10 N.m (90 in. lbs.) torque.
  9. Connect battery negative (-) cable to battery post following special Diagnosis And Testing procedure. (Refer to DIAGNOSTICS )
  10. Check operation of horn, speed control and remote audio controls.
