Door Glass: Installation

  1. Place glass into inner door panel position (Fig 3).
  2. Using care, push down on window glass to lock lift plate into lift plate bracket (Fig 2).
  3. Install door fixer glass run channel. (Refer to INSTALLATION ).
  4. Ensure window glass is in the glass run channel.
  5. Remove inner belt weathersrip. (Refer to REAR DOOR INNER BELT MOLDING WEATHERSTRIP ).

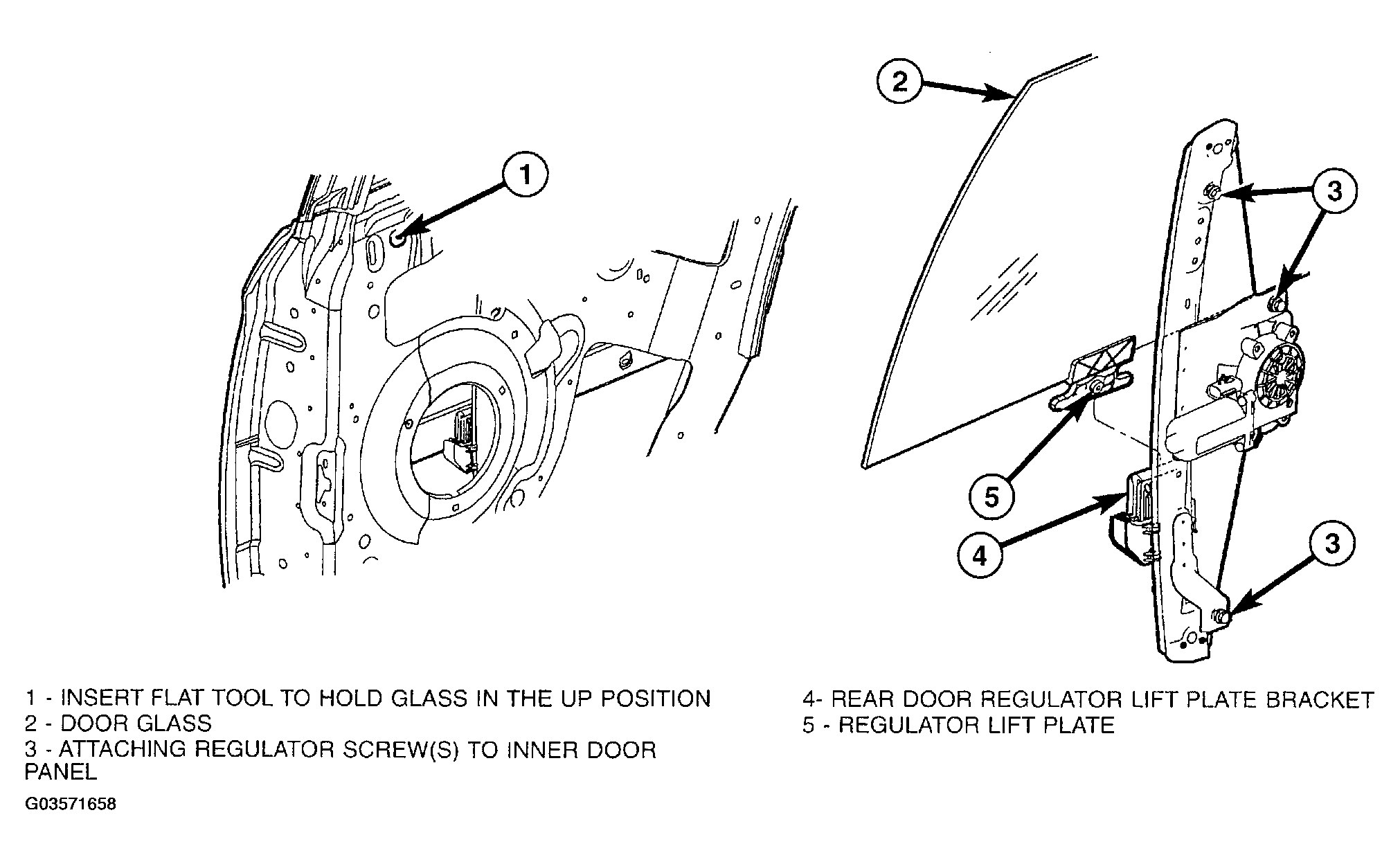

    Fig 1: Identifying Regulator Lift Plate And Spring Clip
    G03571658Courtesy of DAIMLERCHRYSLER CORP.

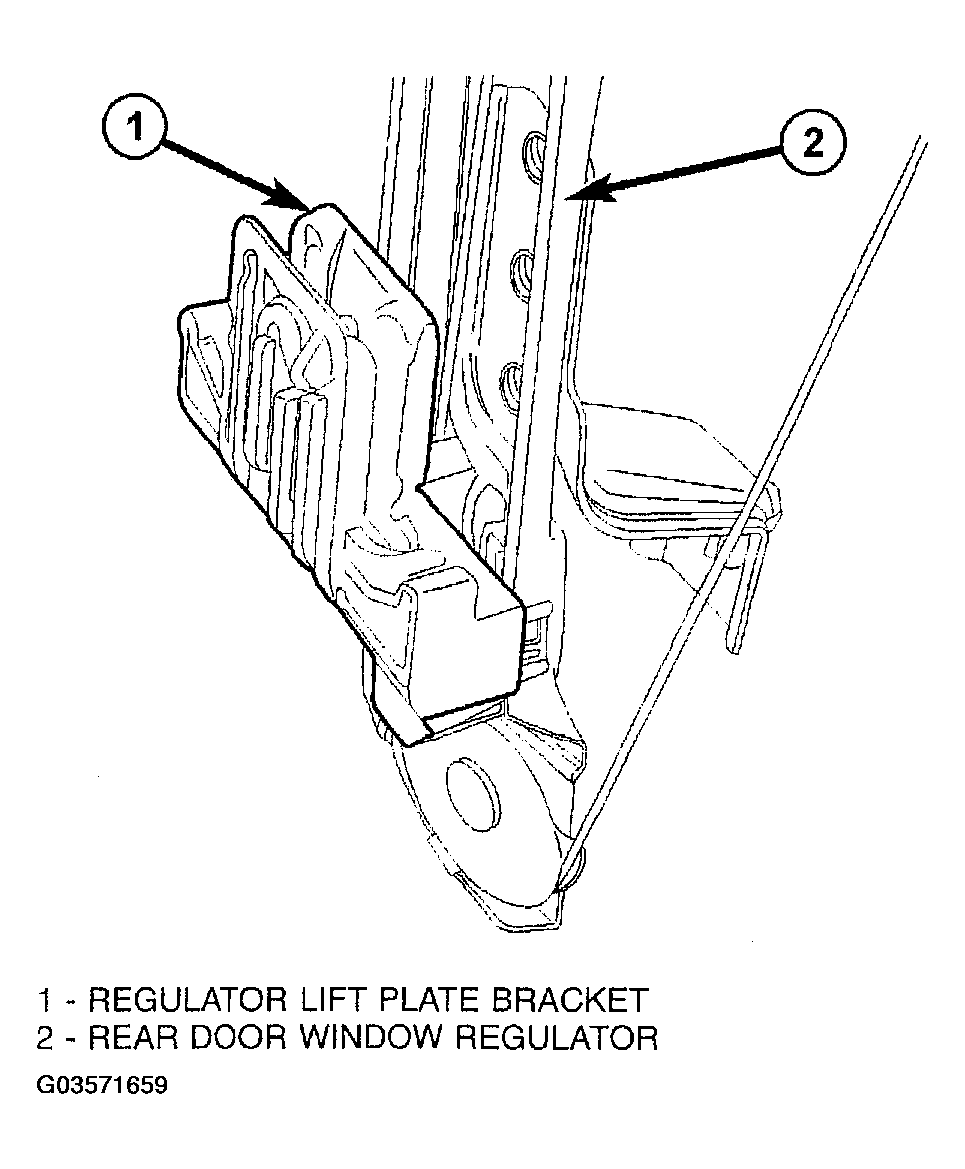

    Fig 2: Identifying Regulator Lift Plate Bracket
    G03571659Courtesy of DAIMLERCHRYSLER CORP.
  6. Cycle glass upward and visually check that window is properly seated in glass run.
  7. Install speaker.
  8. Install watershield. (Refer to INSTALLATION ).
  9. Install door trim panel. (Refer to INSTALLATION ).
  10. Close door.

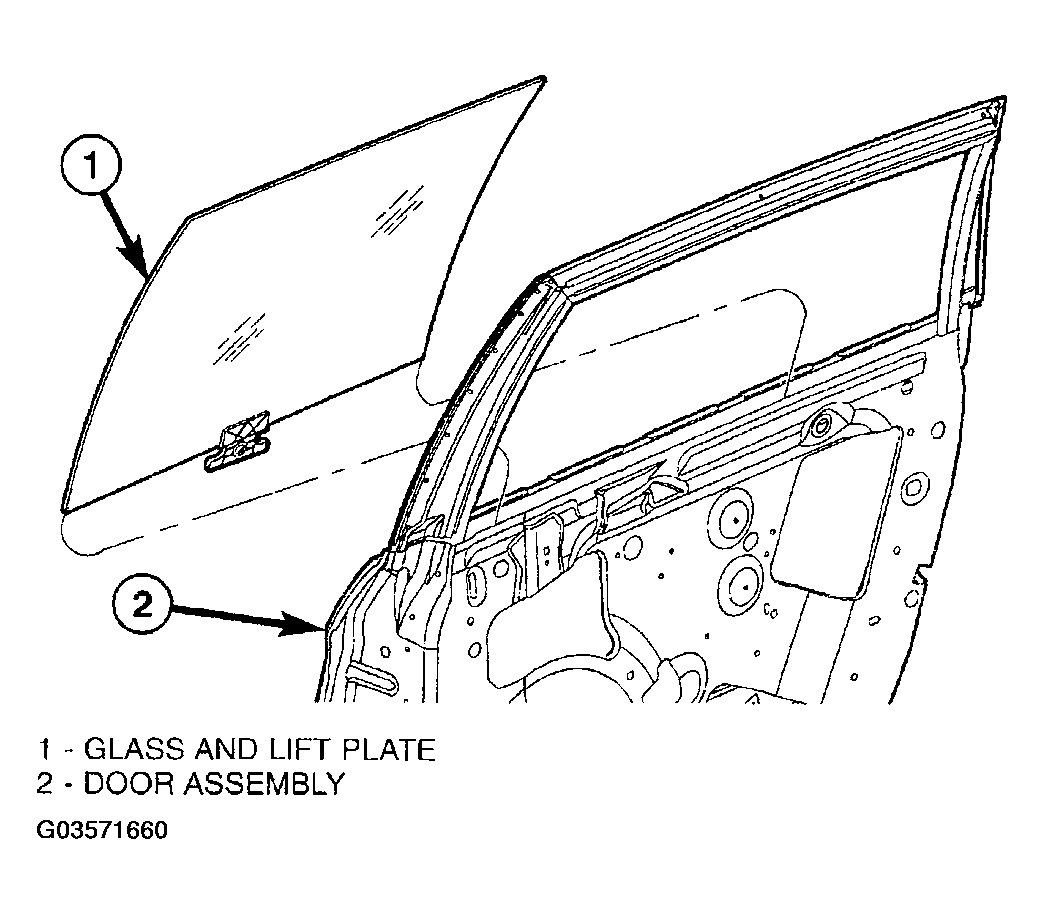

    Fig 3: Identifying Glass And Lift Plate
    G03571660Courtesy of DAIMLERCHRYSLER CORP.
