Powertrain Control Module (1.6L) Connector End View

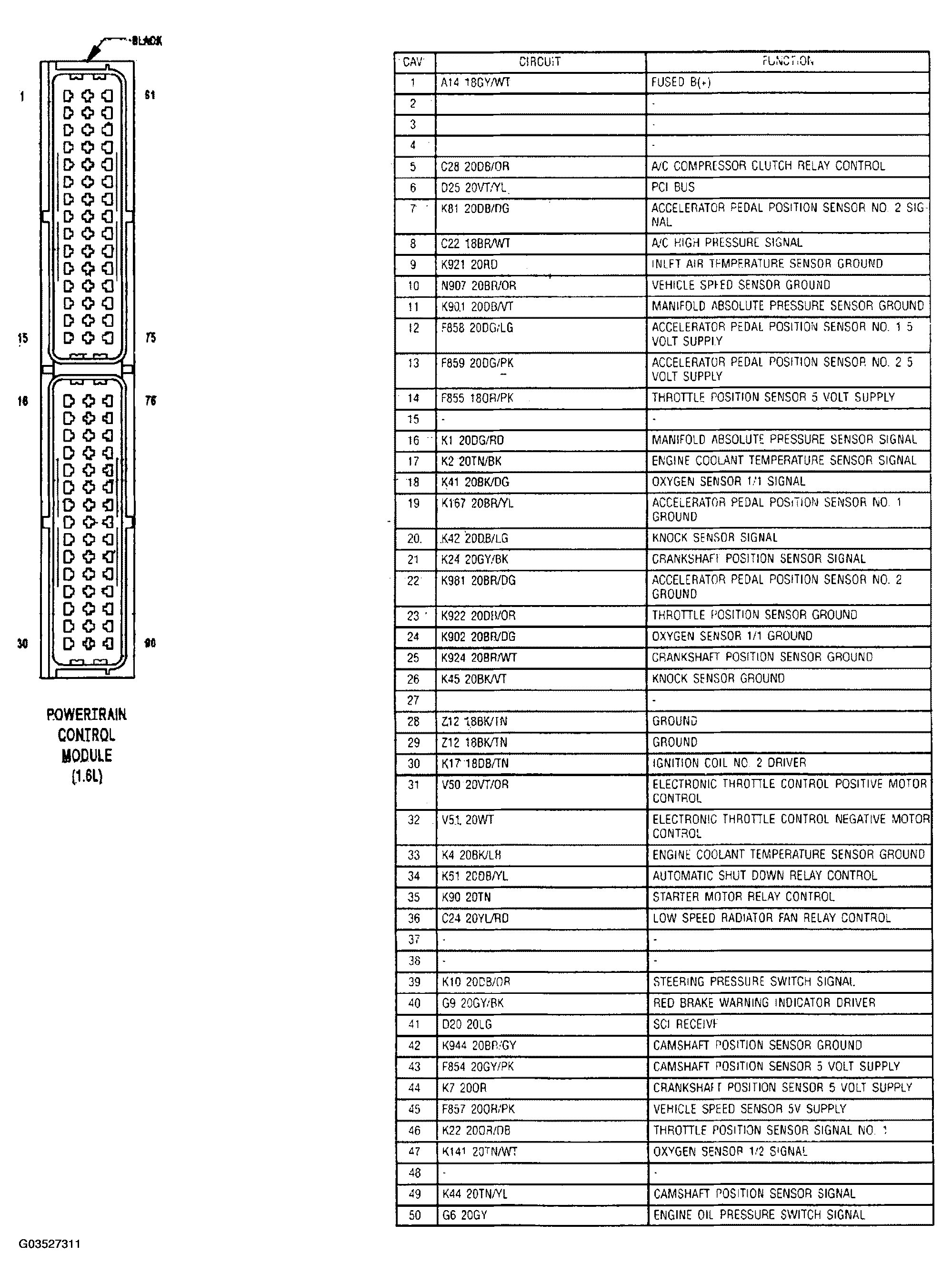

Fig 1: Powertrain Control Module (1.6L) Connector End View
G03527311Courtesy of DAIMLERCHRYSLER CORP.

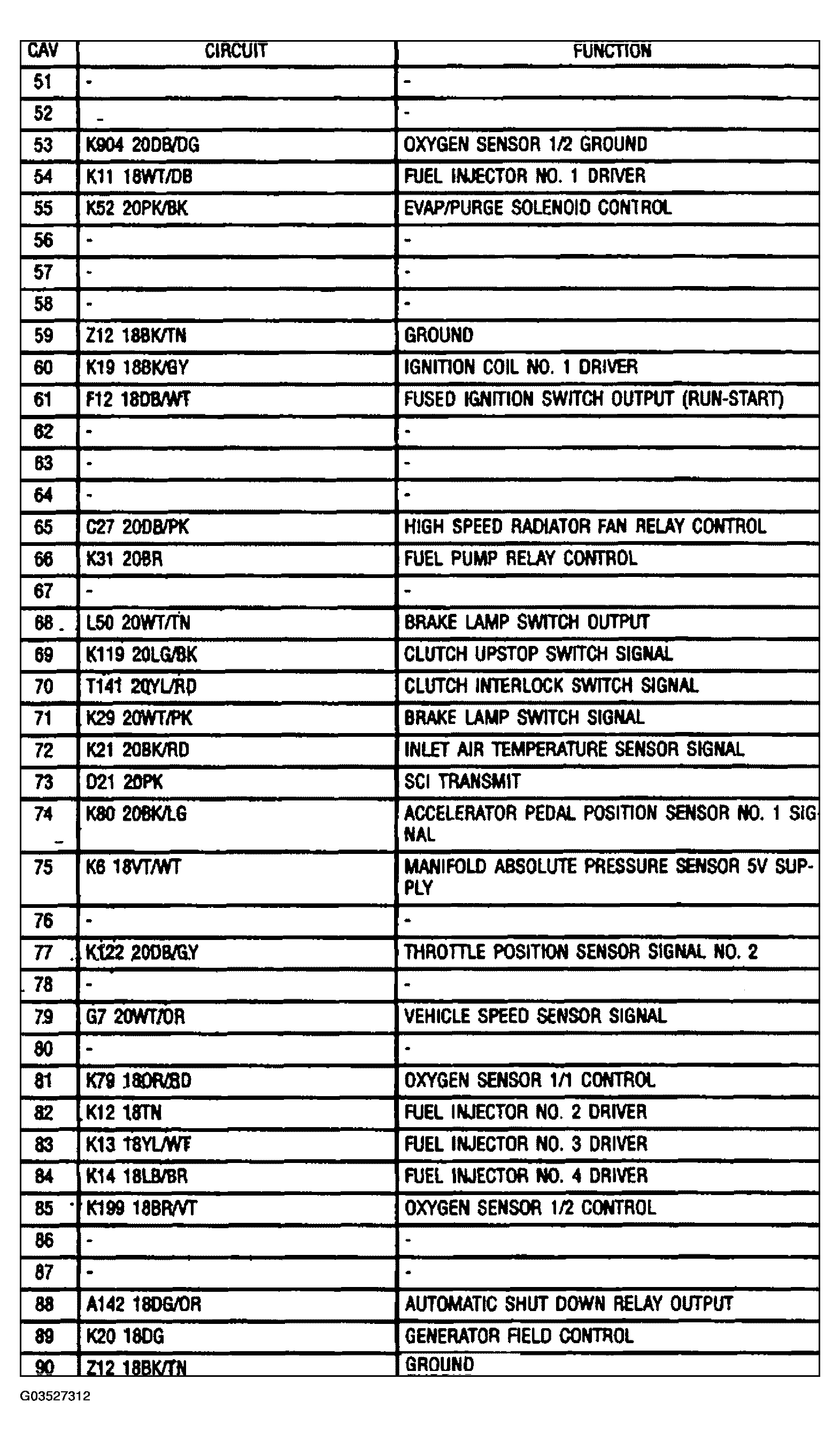

Fig 2: Powertrain Control Module (1.6L) Connector End View
G03527312Courtesy of DAIMLERCHRYSLER CORP.
