C304 Connector End View

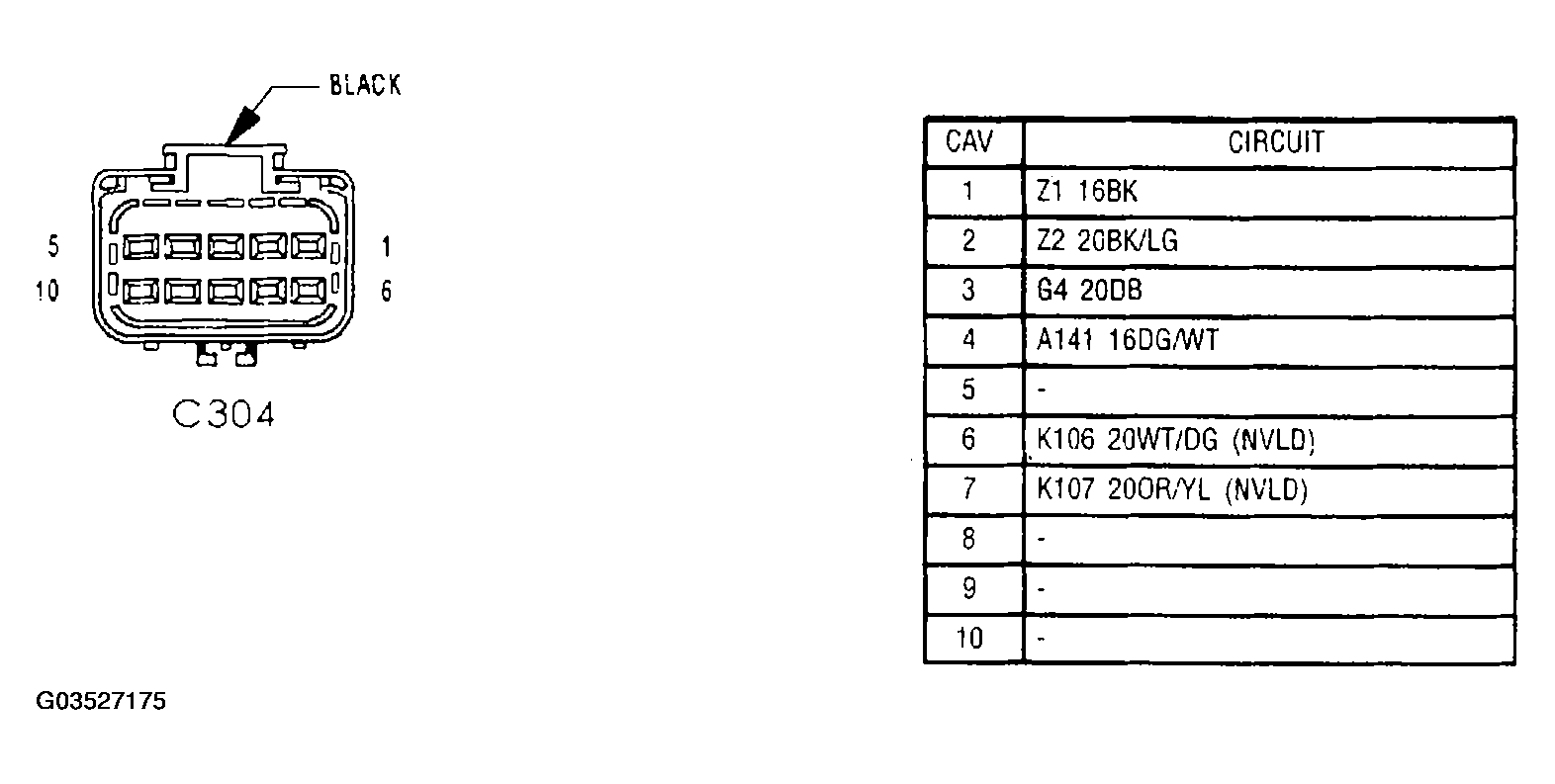

Fig 1: Fuel Tank Side Inline Connector End View (C304)

G03527175

Courtesy of DAIMLERCHRYSLER CORP.

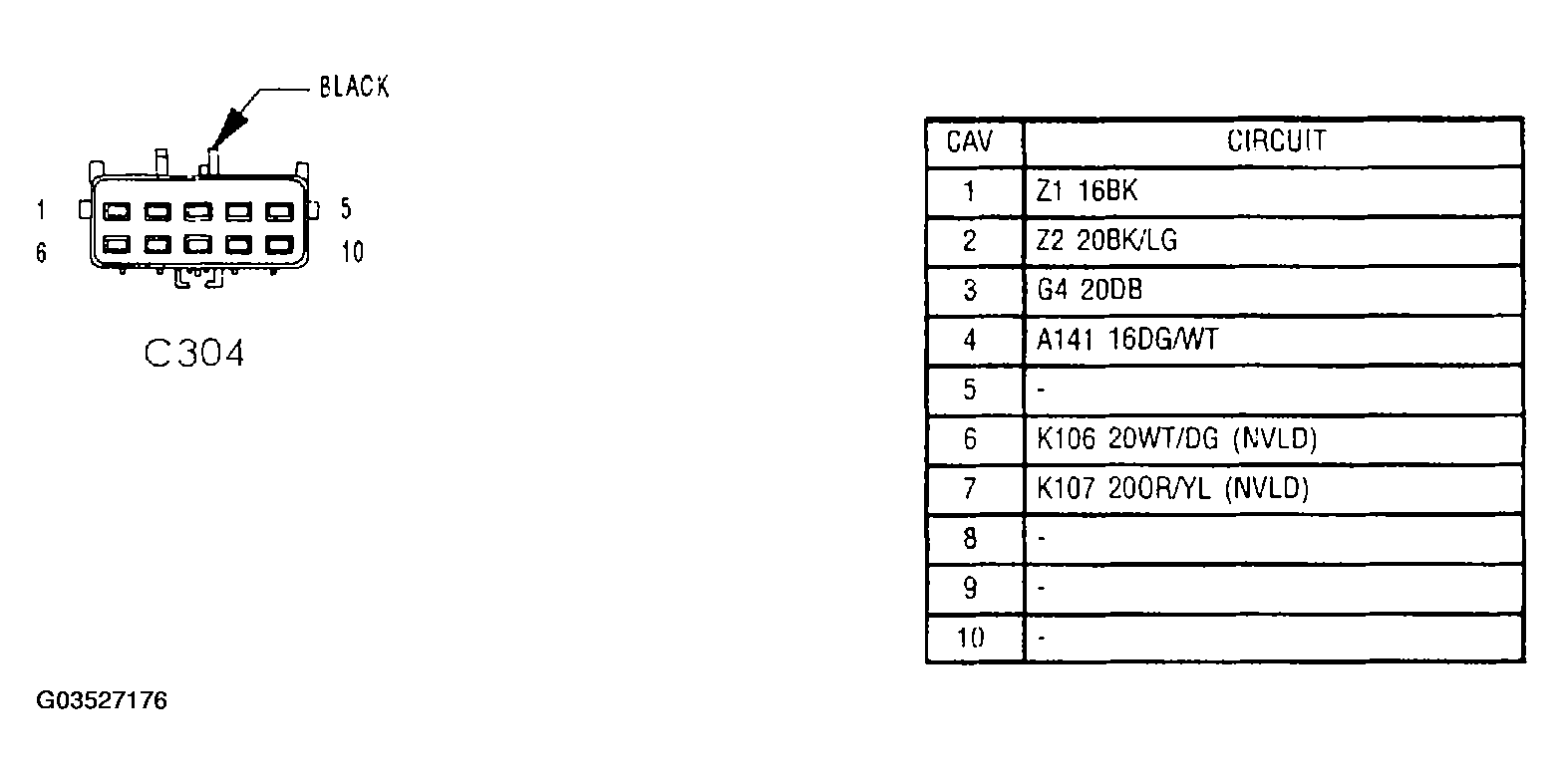

Fig 1: Underbody Side Inline Connector End View (C304)

G03527176

Courtesy of DAIMLERCHRYSLER CORP.
