Home >> Chrysler >> 2004 >> PT Cruiser Base, Standard >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Cable >> Installation >> 2.4L Turbo

2.4L Turbo

  1. Install the cable.

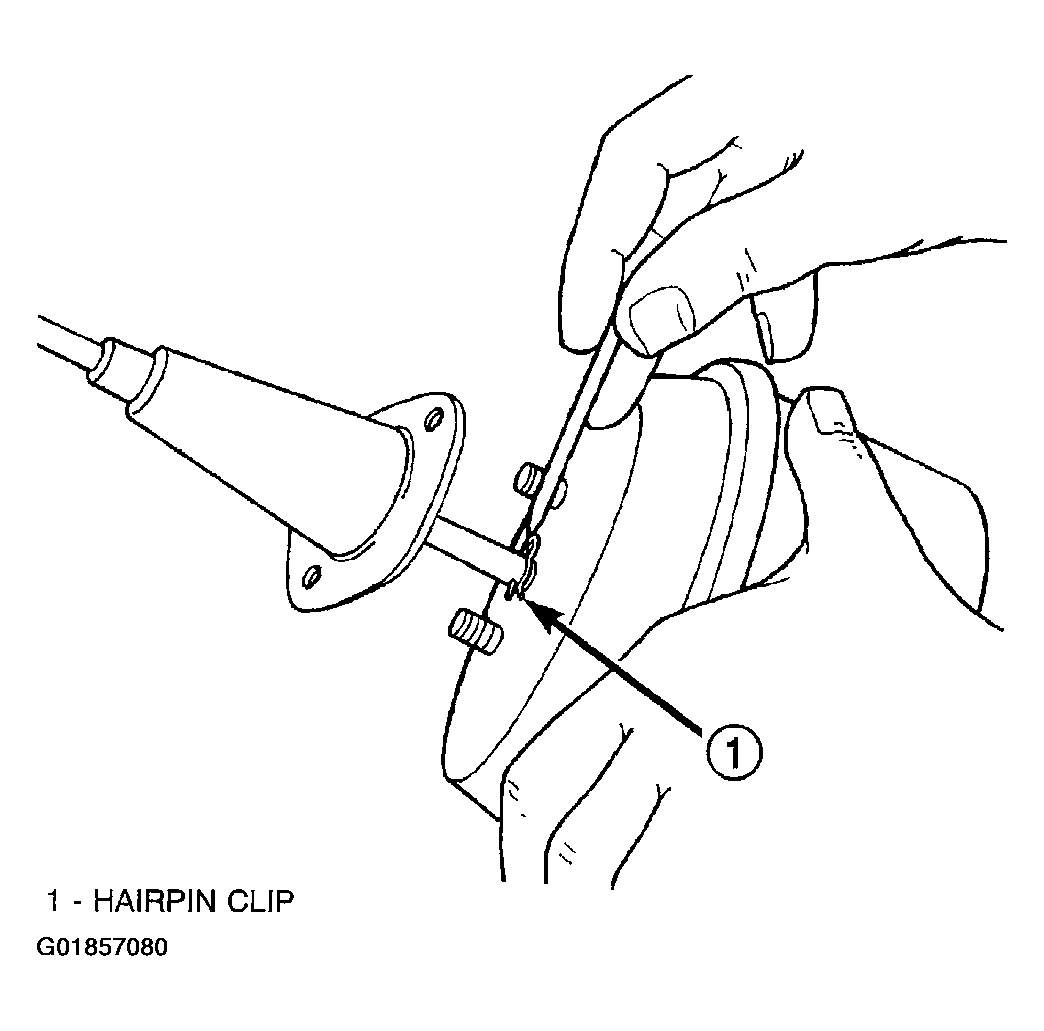

  2. Install the retaining clip holding cable to servo. See Figure.

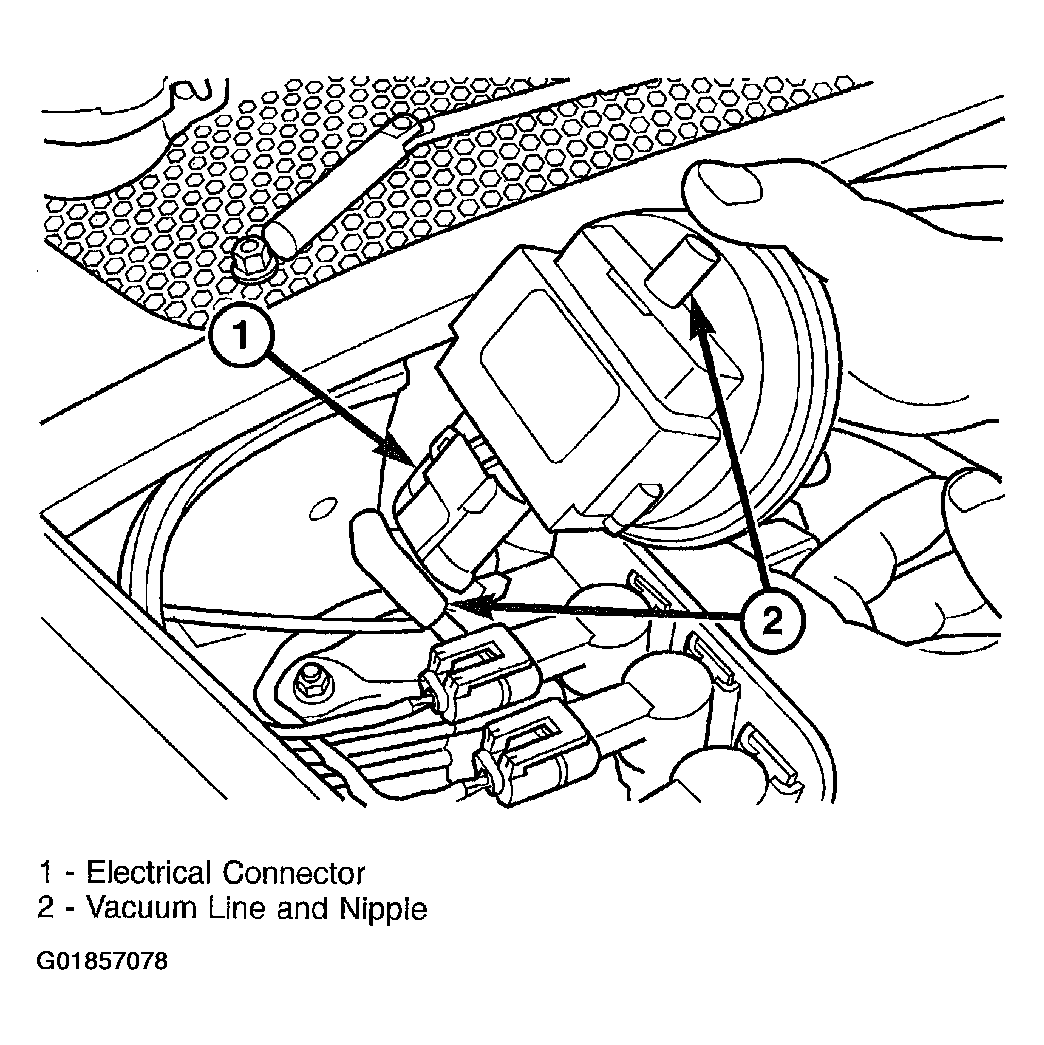

  3. Connect and Lock the electrical connector to the speed control servo. See Figure.
  4. Install the speed control servo to the mounting bracket.

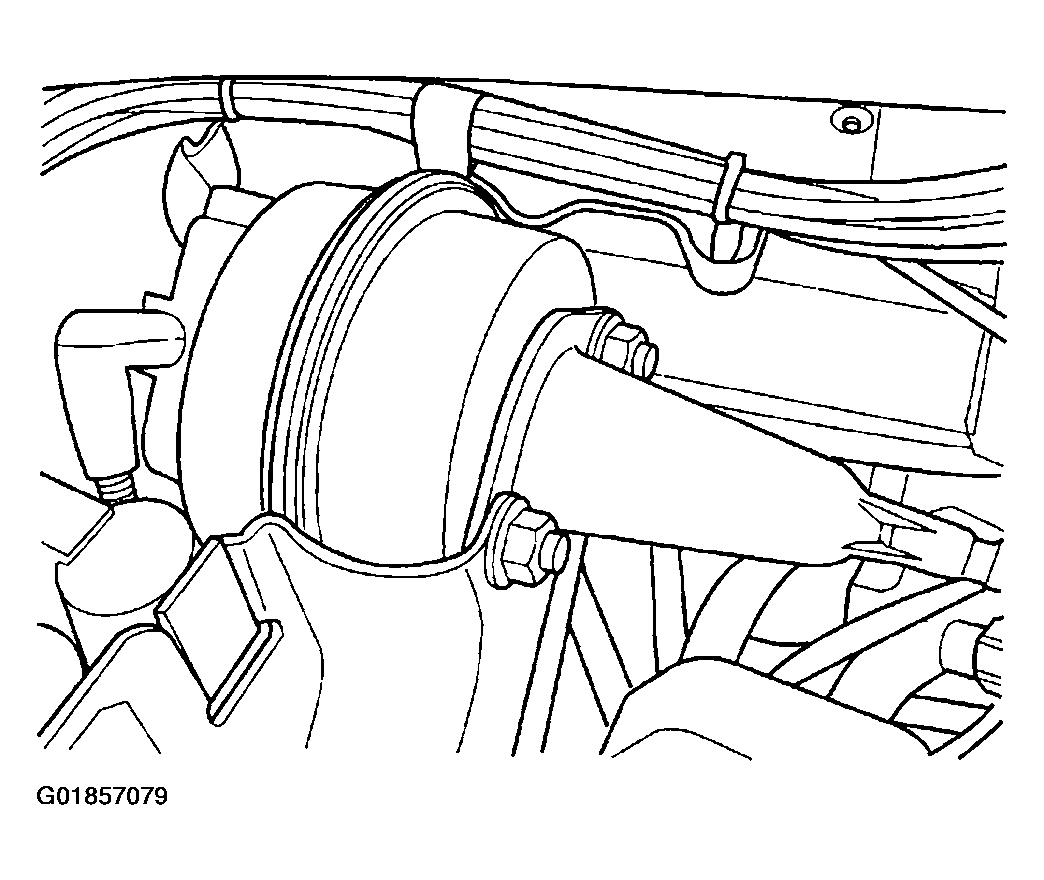

  5. Install the 2 nuts to the speed control servo studs and tighten to 7 N.m (60 in. lbs.). See Figure.
  6. Install the vacuum line to the speed control servo nipple. See Figure.

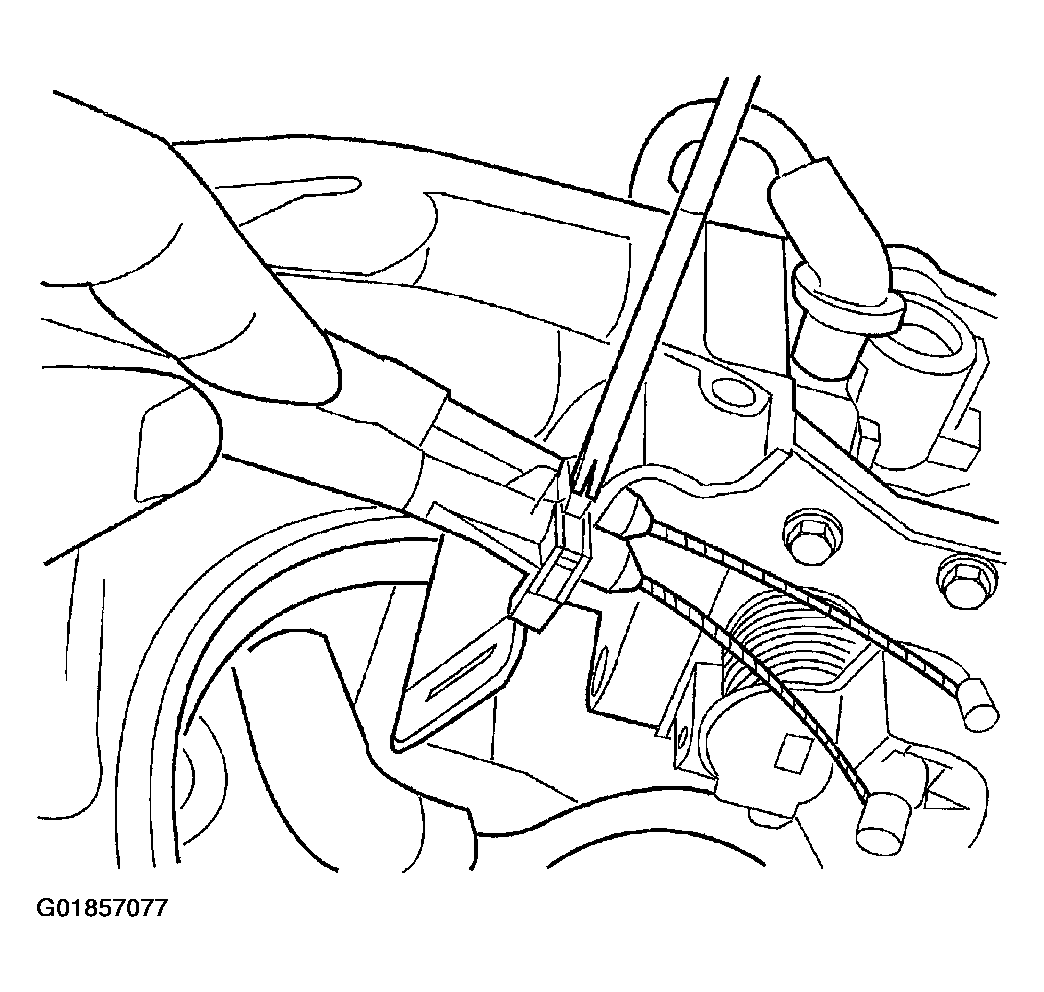

  7. Install speed control cable to throttle cable bracket. See Figure.
  8. Install the speed control cable to the throttle body lever.

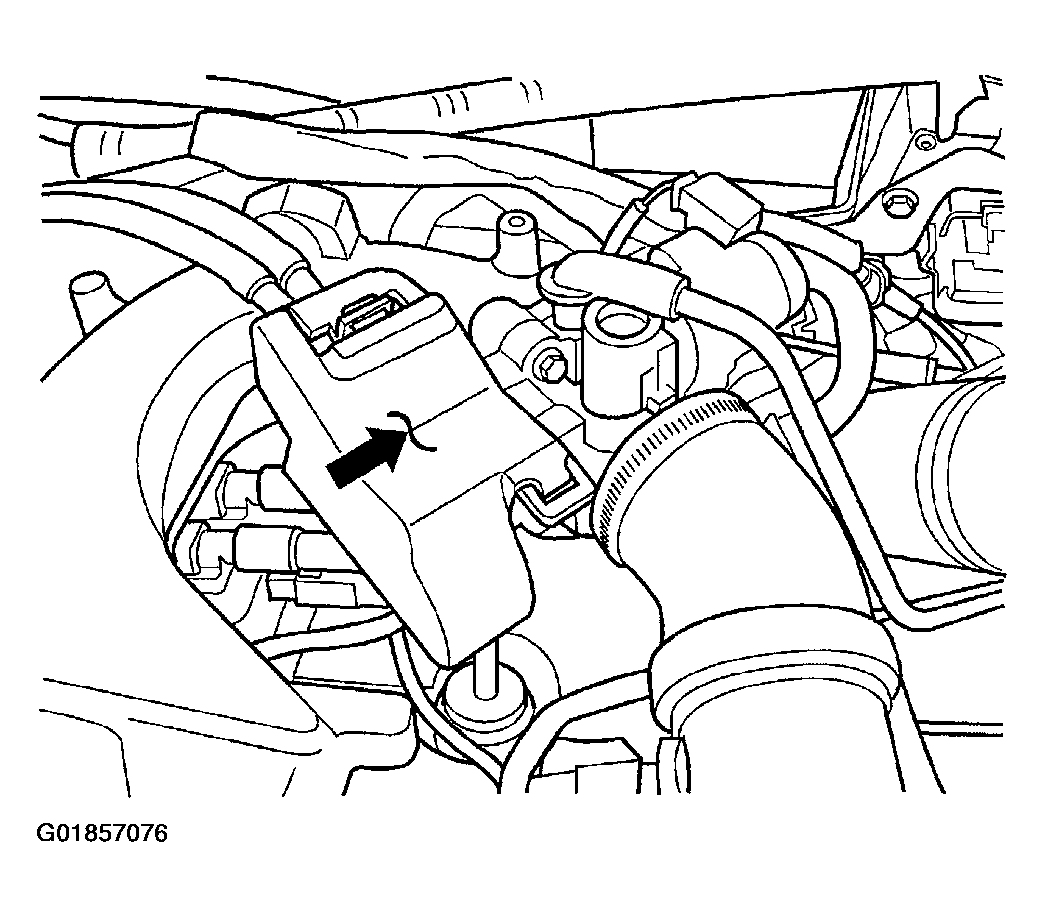

  9. Install the throttle control shield. See Figure.
  10. Connect the negative battery cable.
