C205 Connector End View

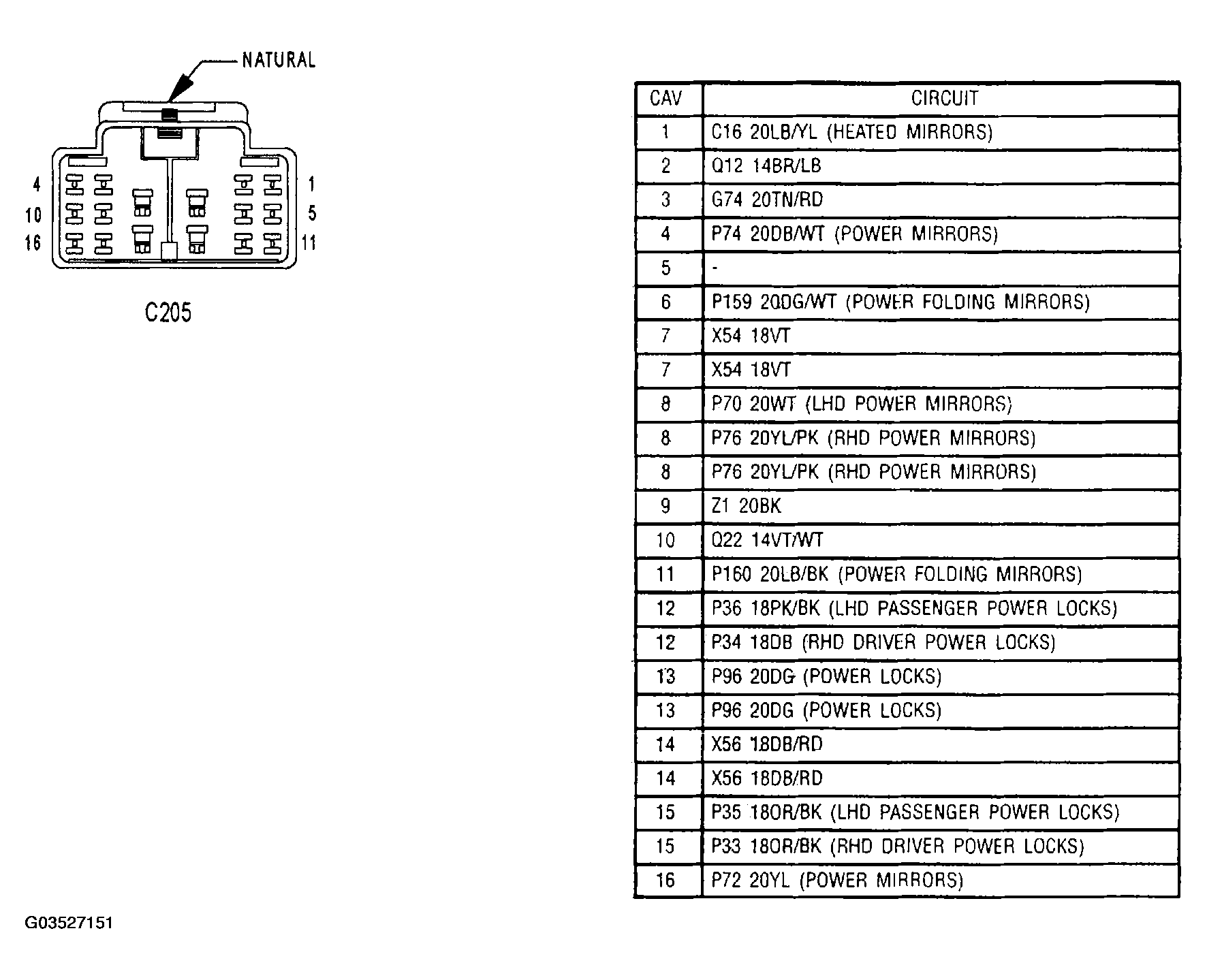

Fig 1: Instrument Panel Side Inline Connector End View (C205)
G03527151Courtesy of DAIMLERCHRYSLER CORP.

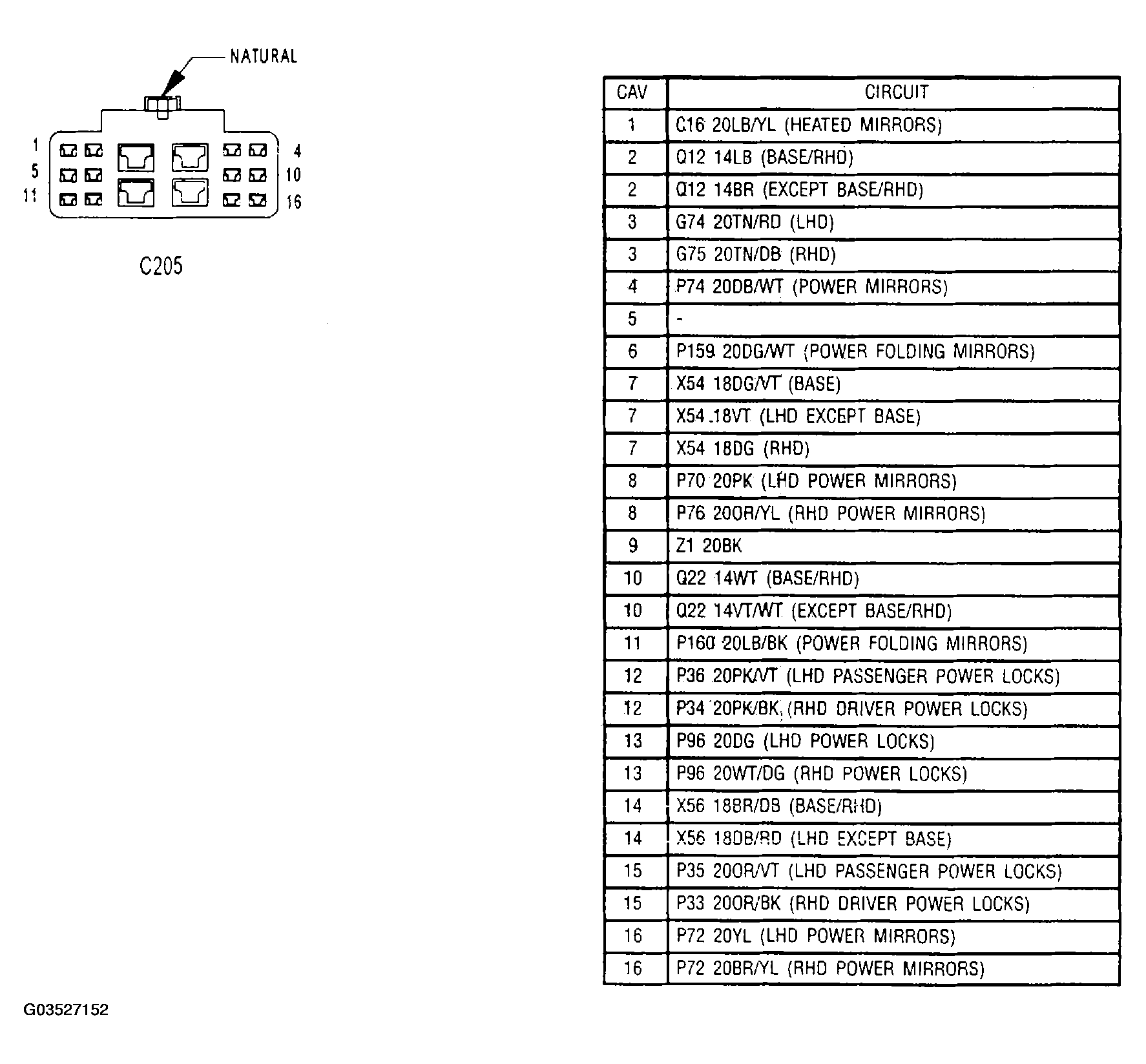

Fig 1: Right Front Door Side Inline Connector End View (C205)
G03527152Courtesy of DAIMLERCHRYSLER CORP.
