Removal & Installation - Manual Transmission: Specifications

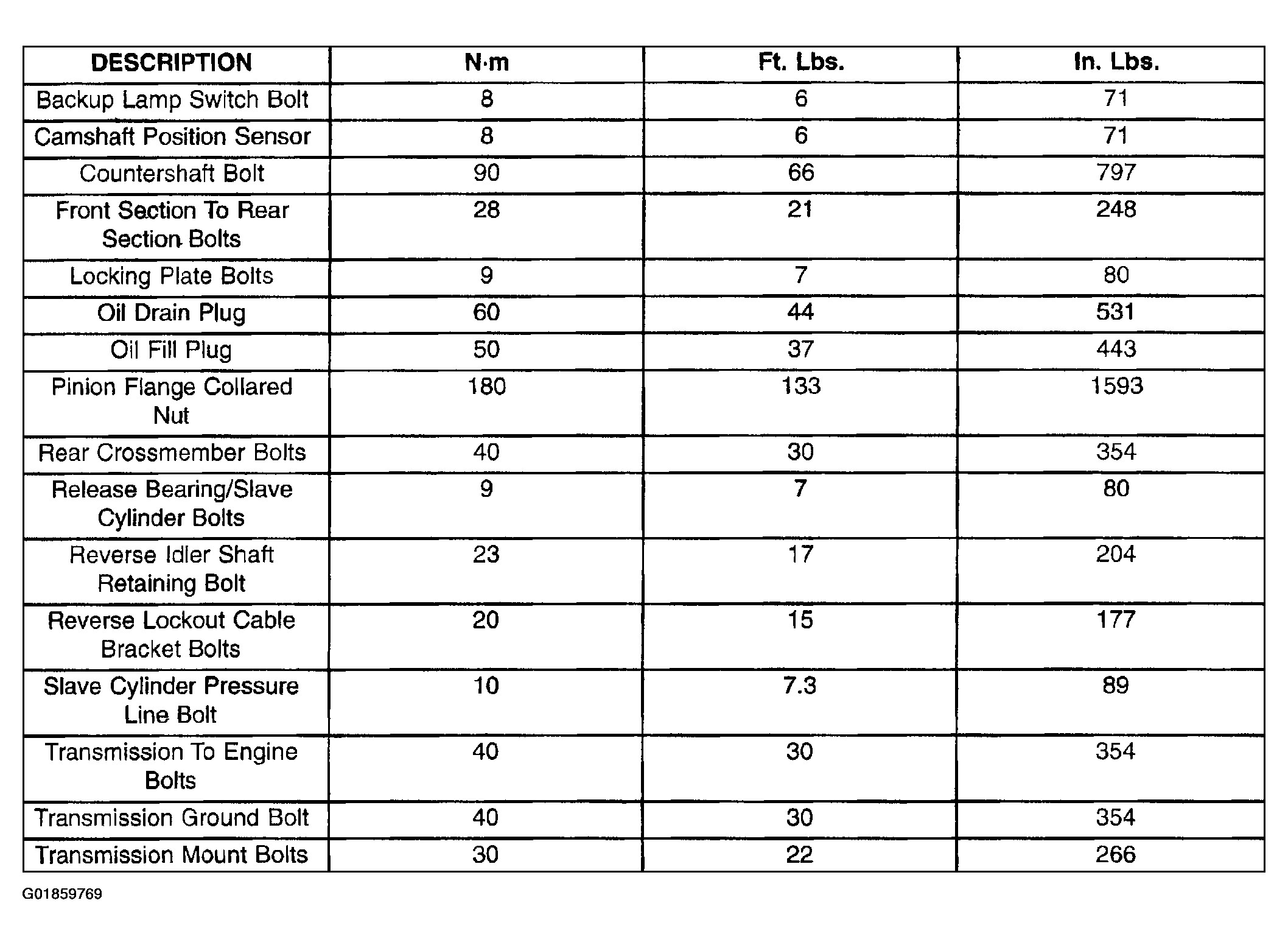

Fig 1: Fastener Tightening Torque Specifications Table

G01859769

Courtesy of DAIMLERCHRYSLER CORP.
