Clutch Pedal: Installation

  1. Install the clutch pedal on the bracket the pivot (1).
  2. Install the return spring (3) and the circlip (2).

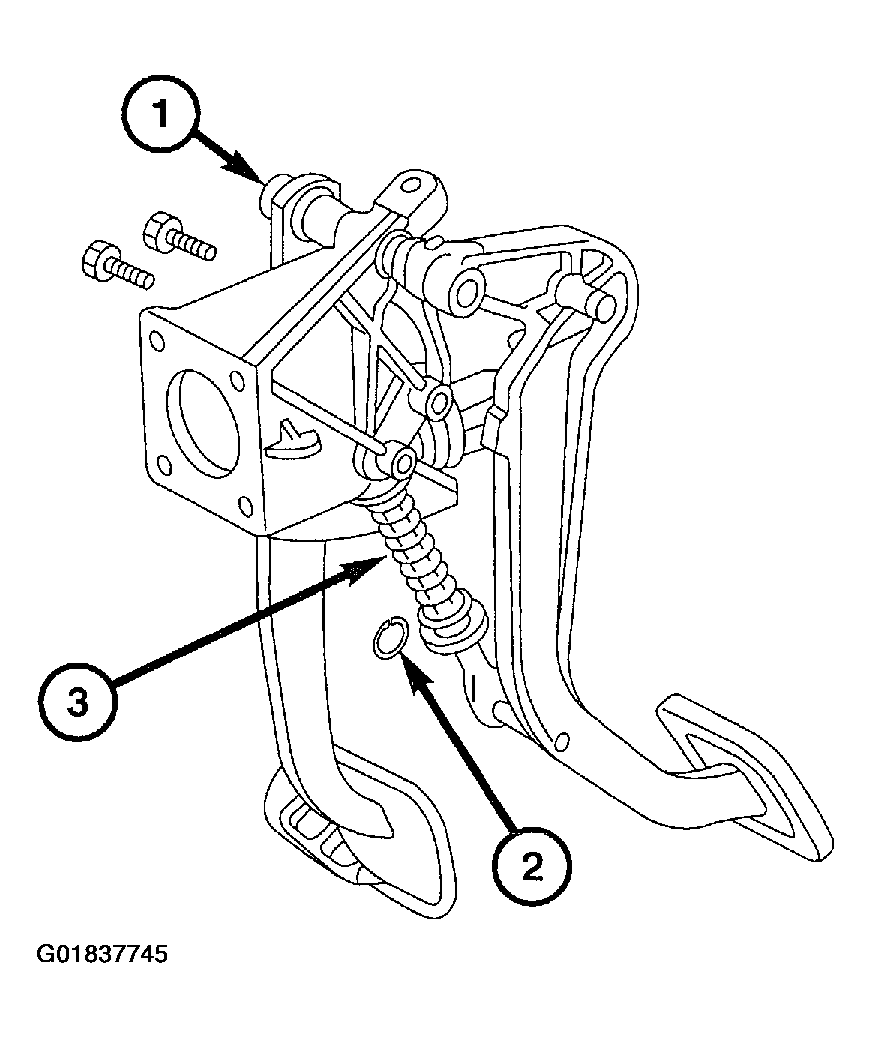

    Fig 1: Installing Clutch Pedal, Return Spring & Circlip
    G01837745Courtesy of DAIMLERCHRYSLER CORP.
  3. Install the clutch master cylinder fluid pressure line (1).
    Fig 2: Installing Clutch Master Cylinder Fluid Pressure Line
    G01837746Courtesy of DAIMLERCHRYSLER CORP.
  4. Install the driver side upper instrument panel (1). See BODY article.

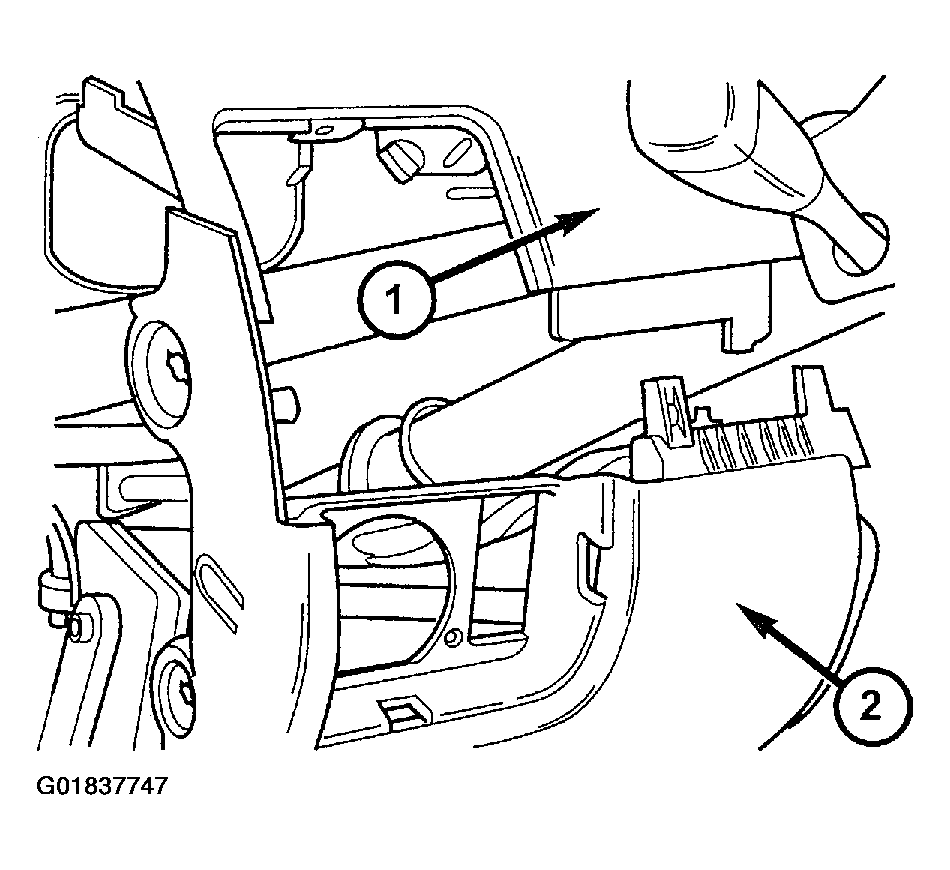

    Fig 3: Identifying Driver Side Instrument Panel
    G01837747Courtesy of DAIMLERCHRYSLER CORP.
  5. Install the driver side lower instrument panel.
