Rack & Pinion Power Steering System: Damper: Removal

  1. Remove the nut and bolt (1) from the steering damper mounting bracket.
  2. Remove the nut and bolt from the drag link.
  3. Remove the steering damper from the vehicle.

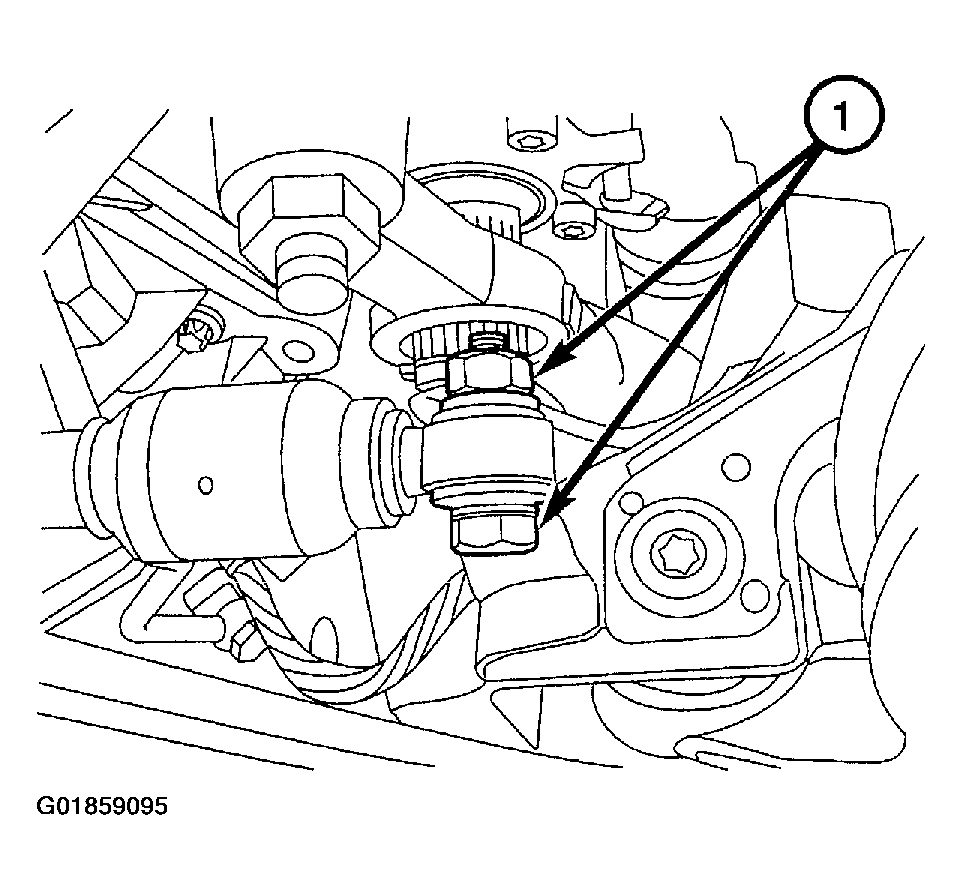

    Fig 1: Removing Damper
    G01859095Courtesy of DAIMLERCHRYSLER CORP.
