Coolant Recovery Reservoir: Installation

  1. Position the coolant recovery reservoir in the engine compartment.
  2. Install the two retaining nuts (2). Tighten the nuts to 5 N.m (44 in. lbs.).

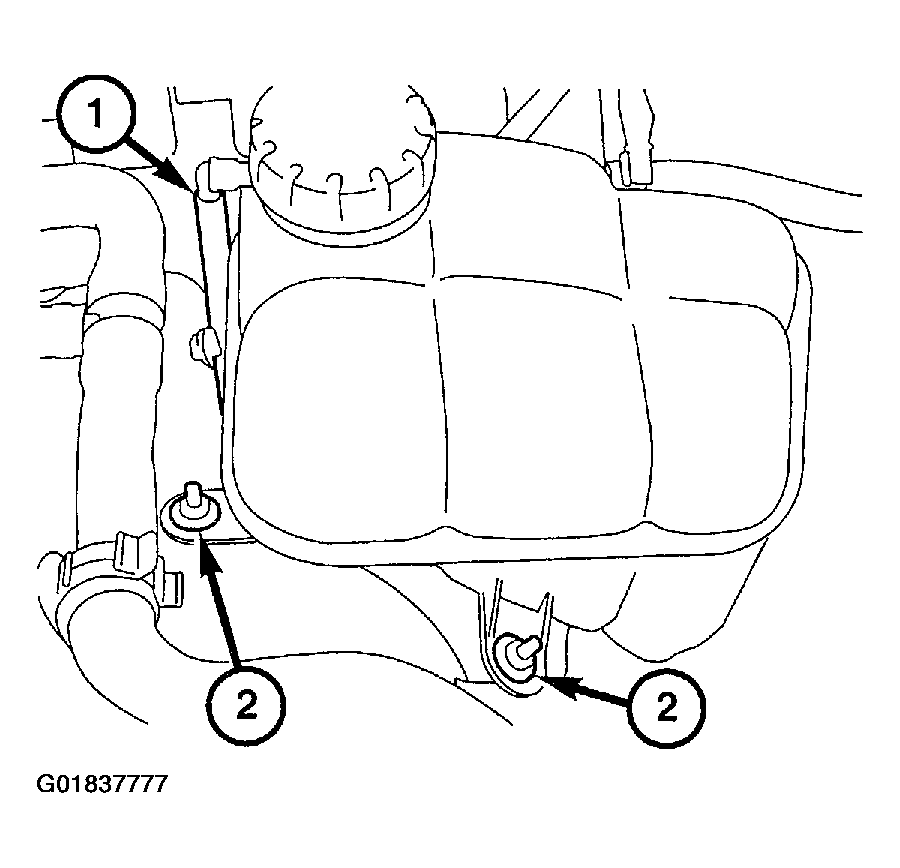

    Fig 1: Installing Coolant Recovery Reservoir
    G01837777Courtesy of DAIMLERCHRYSLER CORP.
  3. Connect the coolant overflow hose (1).
  4. Connect the coolant level sensor harness connector (2).

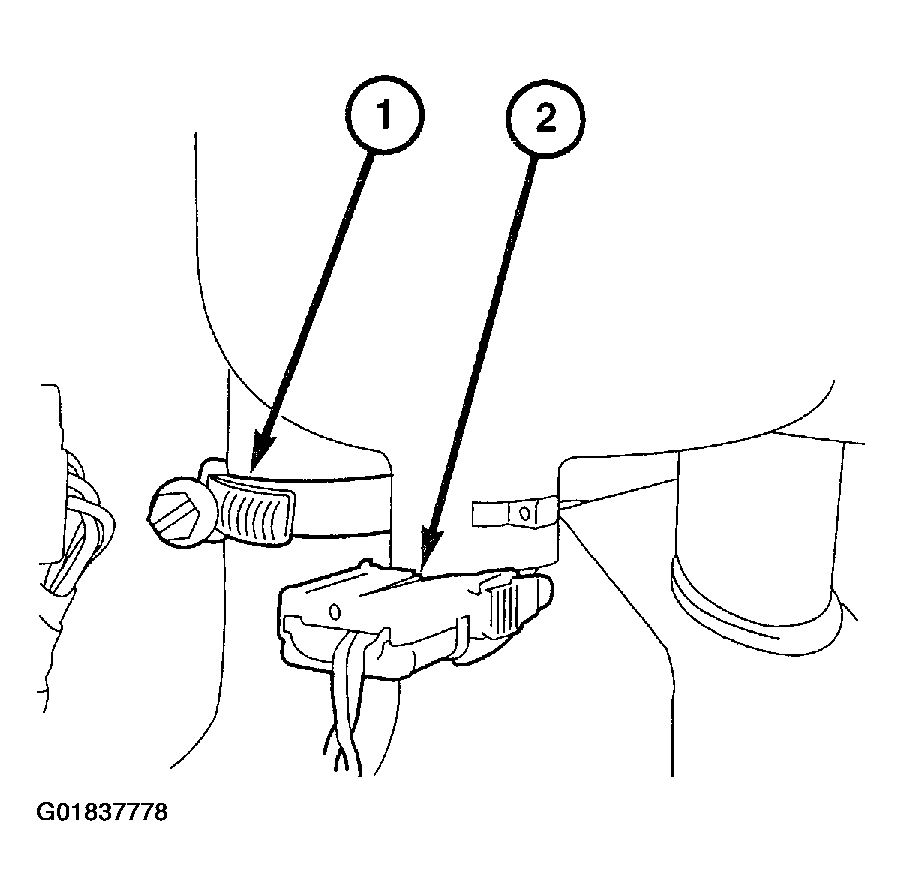

    Fig 2: Connecting Coolant Level Sensor Harness Connector & Coolant Hose
    G01837778Courtesy of DAIMLERCHRYSLER CORP.
  5. Connect the coolant hose (1) from the radiator.
  6. Fill the cooling system. See STANDARD PROCEDURE - REFILLING COOLING SYSTEM .
  7. Start the engine and check for coolant leaks.
  8. Recheck the coolant level.
  9. Connect the negative battery cable.
