Right Power Mirror Connector End View

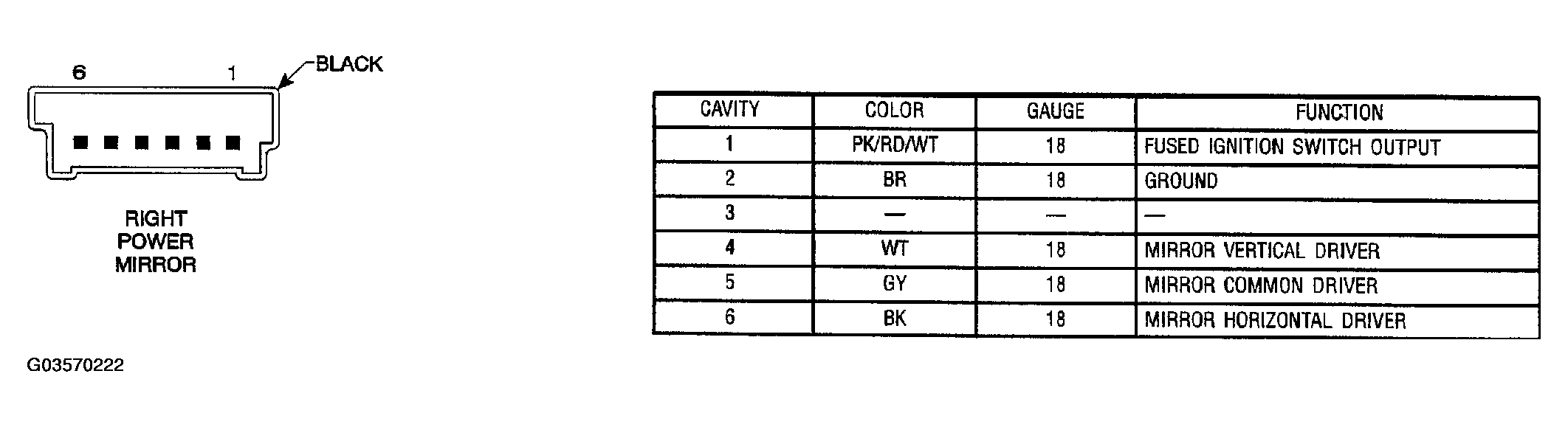

Fig 1: Right Power Mirror Connector End View

G03570222

Courtesy of DAIMLERCHRYSLER CORP.
