Controller Antilock Brake Connector End View

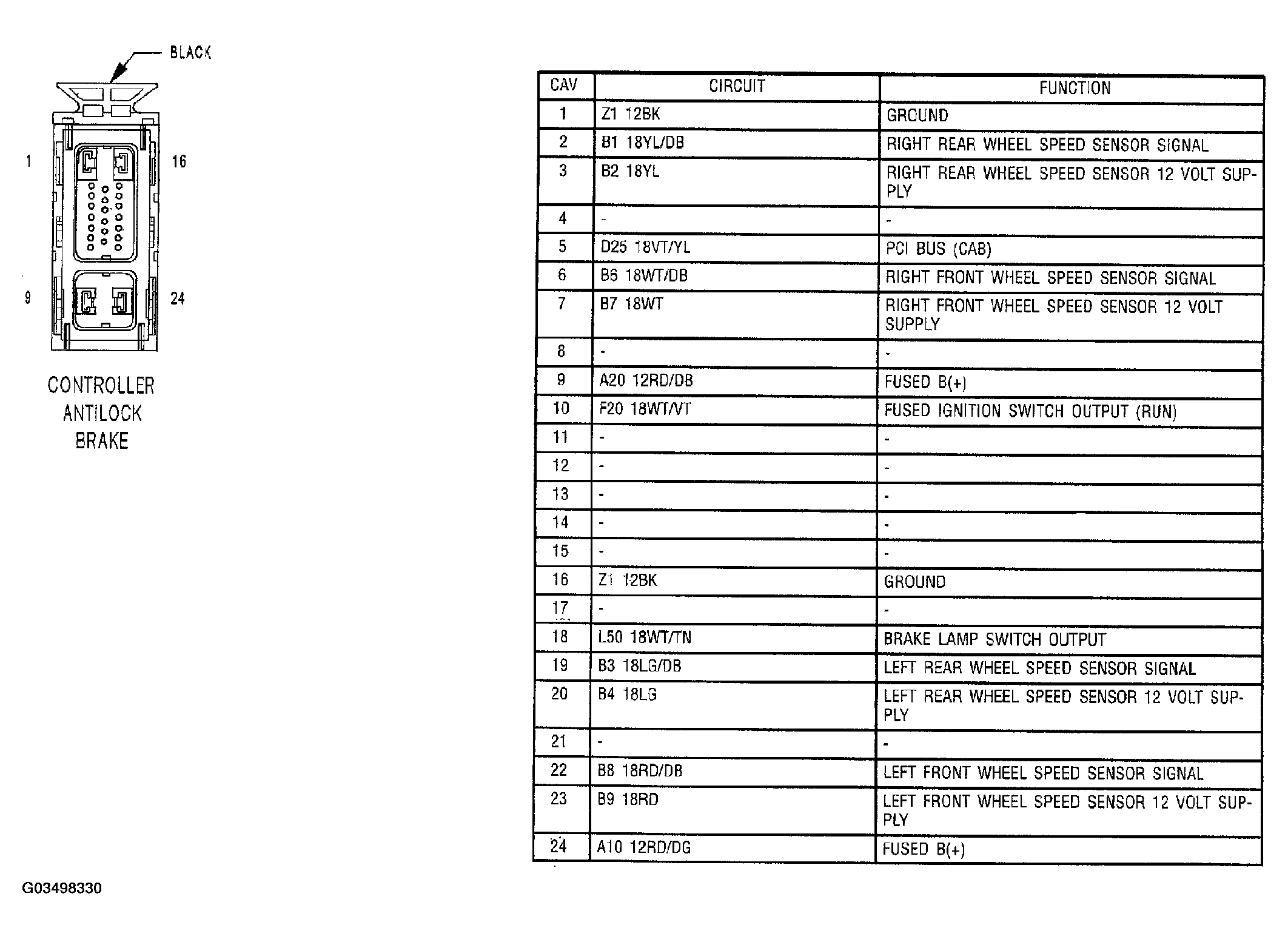

Fig 1: Antilock Brake Controller Connector End View

G03498330

Courtesy of DAIMLERCHRYSLER CORP.
