Multifunction Switch Connector End View

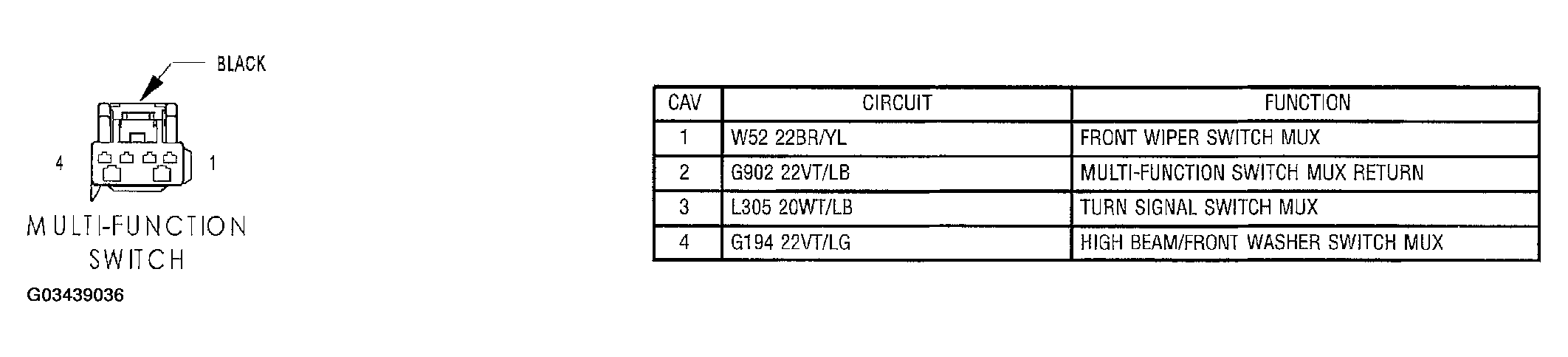

Fig 1: Multifunction Switch Connector End View

G03439036

Courtesy of DAIMLERCHRYSLER CORP.
