Bench Seatback Panel: Installation

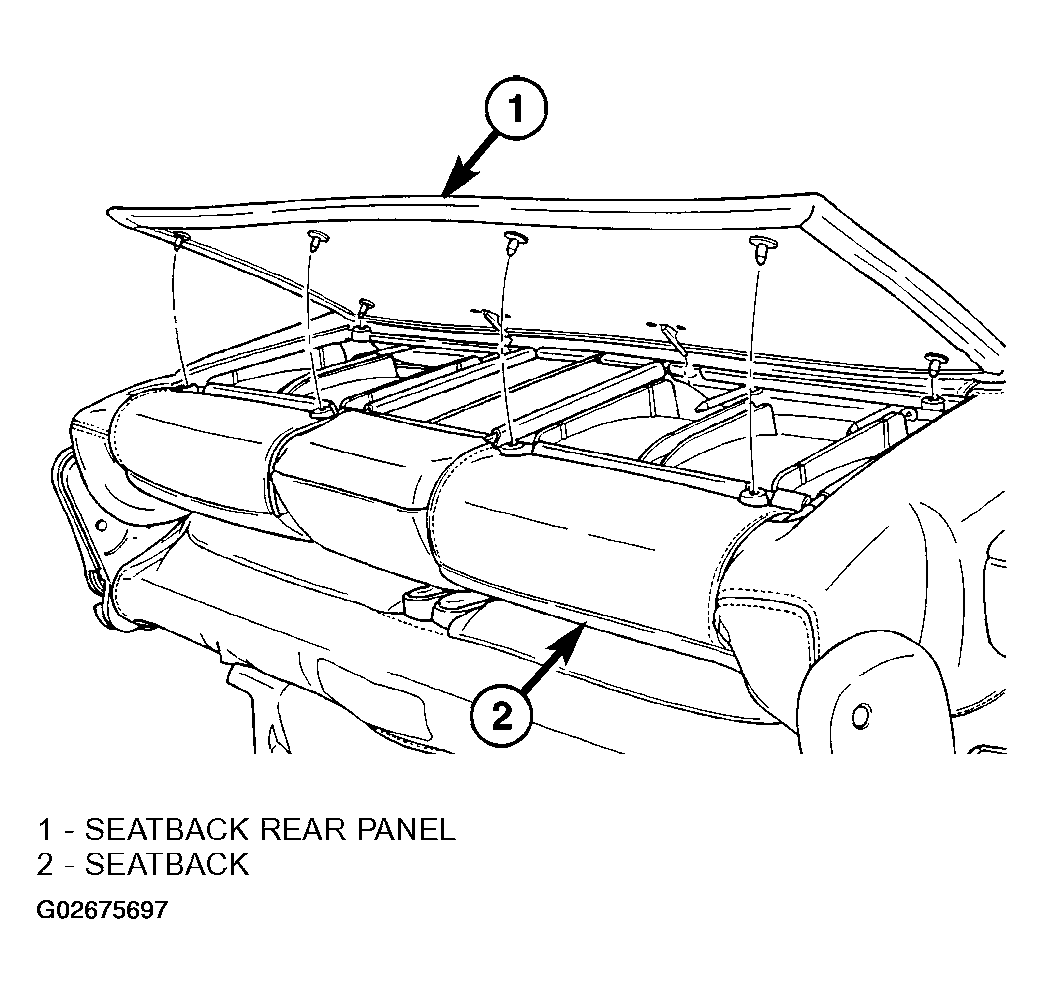

  1. On three pass seats place seat back panel in position on seat and install the push-in fasteners (Figure ).

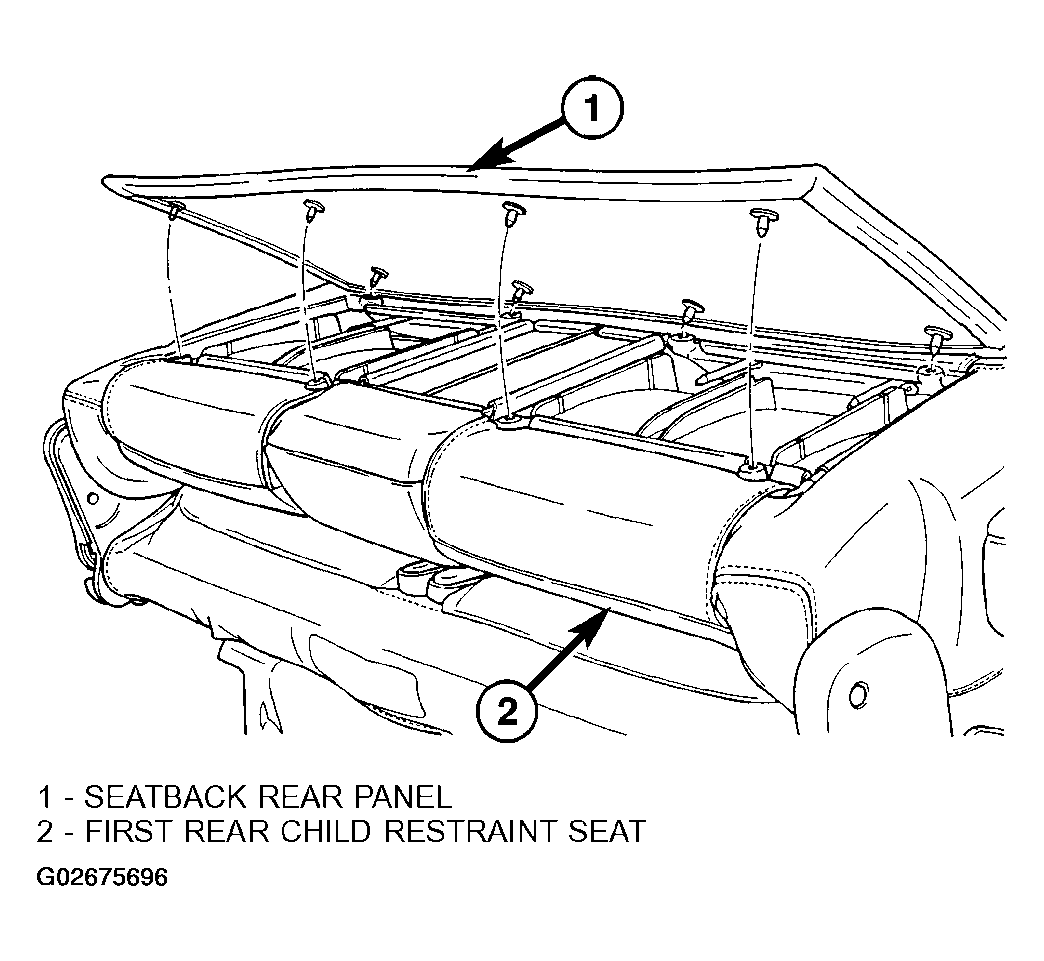

  2. On two pass seats engage the two upper hooks of the panel, place the panel into position and install the push-in fasteners (Figure ).
  3. On third row bench seats install grocery bag holder. (Refer to PLASTIC GROCERY BAG RETAINER  ).
