Sentry Key Immobilizer Module Connector End View

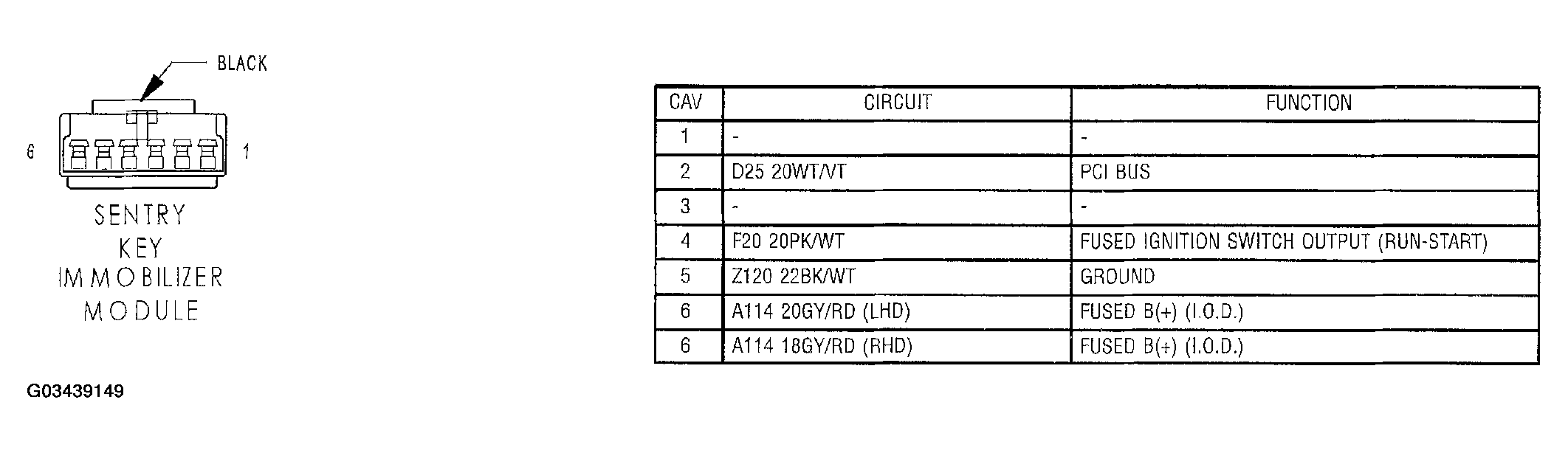

Fig 1: Sentry Key Immobilizer Module Connector End View

G03439149

Courtesy of DAIMLERCHRYSLER CORP.
