Powertrain Control Module (SBEC) Connector End View (C1)

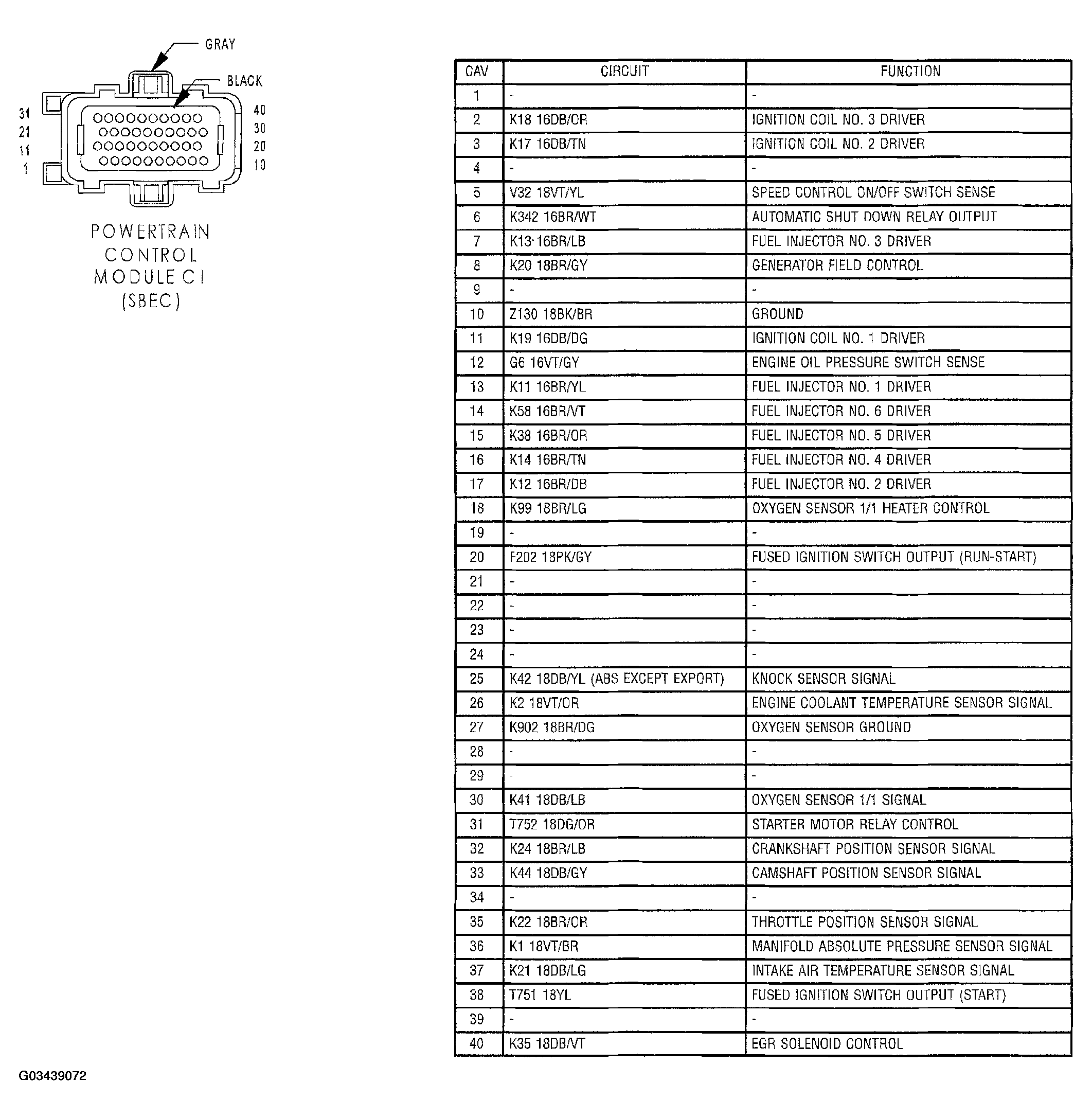

Fig 1: Powertrain Control Module (SBEC) Connector End View (C1)

G03439072

Courtesy of DAIMLERCHRYSLER CORP.
