Power Liftgate Module Connector End View (C1)

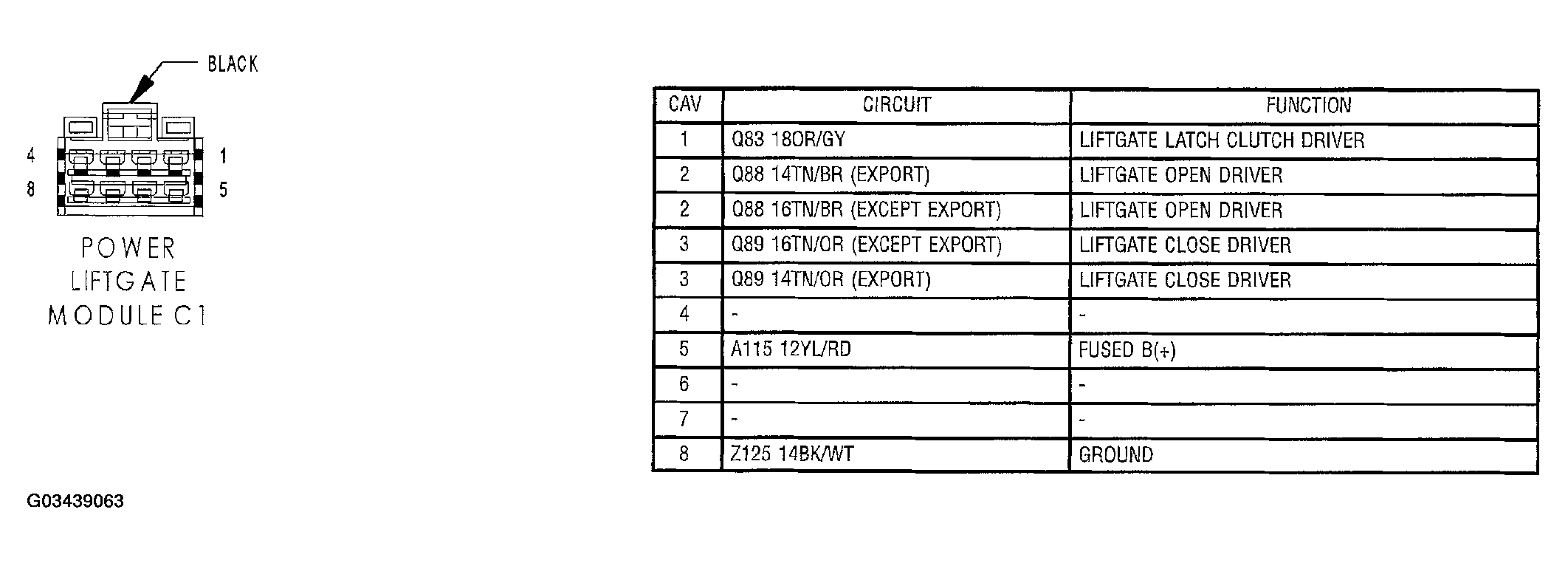

Fig 1: Power Liftgate Module Connector End View (C1)

G03439063

Courtesy of DAIMLERCHRYSLER CORP.
