Integrated Power Module (Rear View)

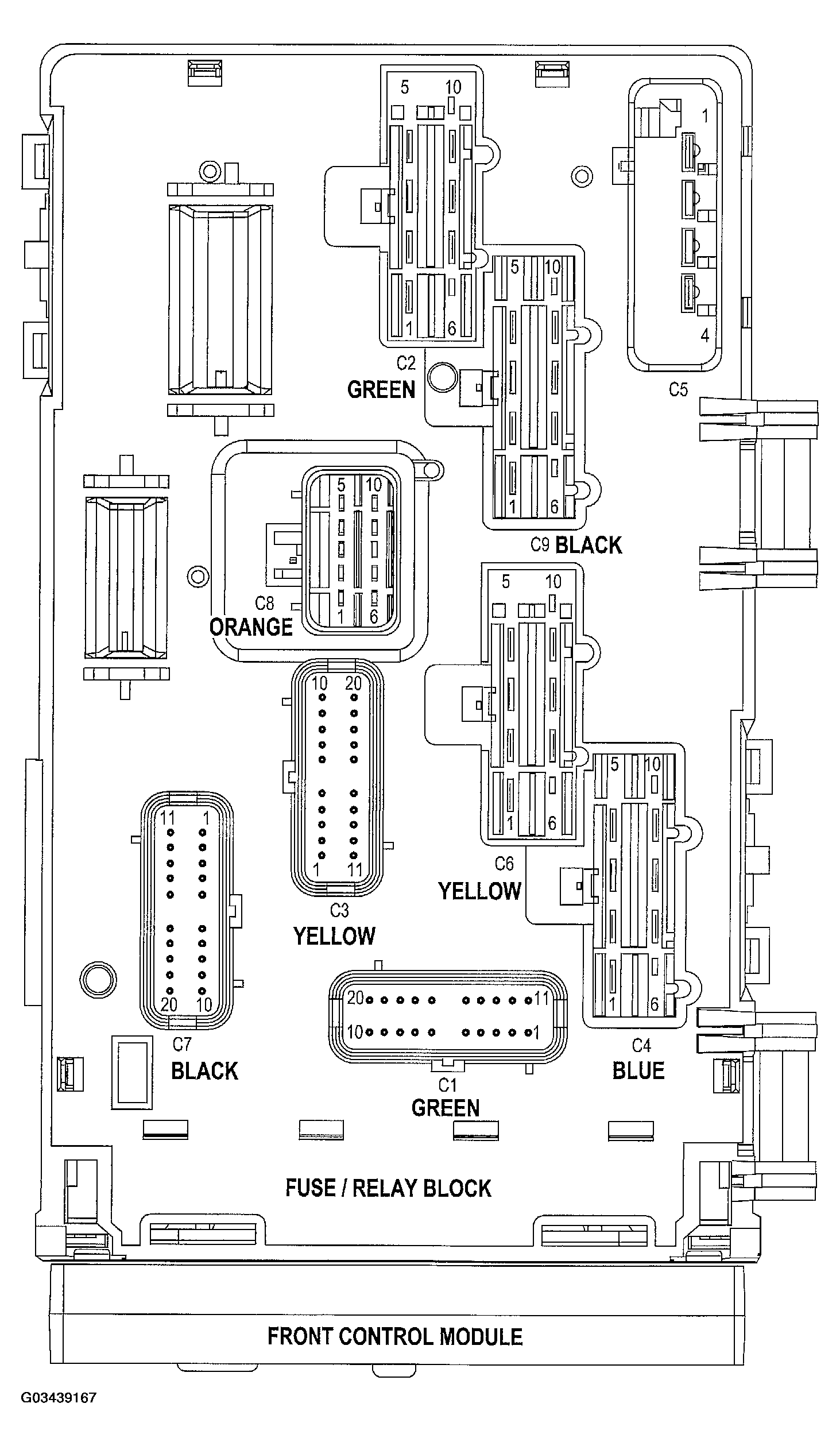

Fig 1: Integrated Power Module Connector Identification
G03439167Courtesy of DAIMLERCHRYSLER CORP.
