Cruise Control Systems: Servo: Installation: Installation

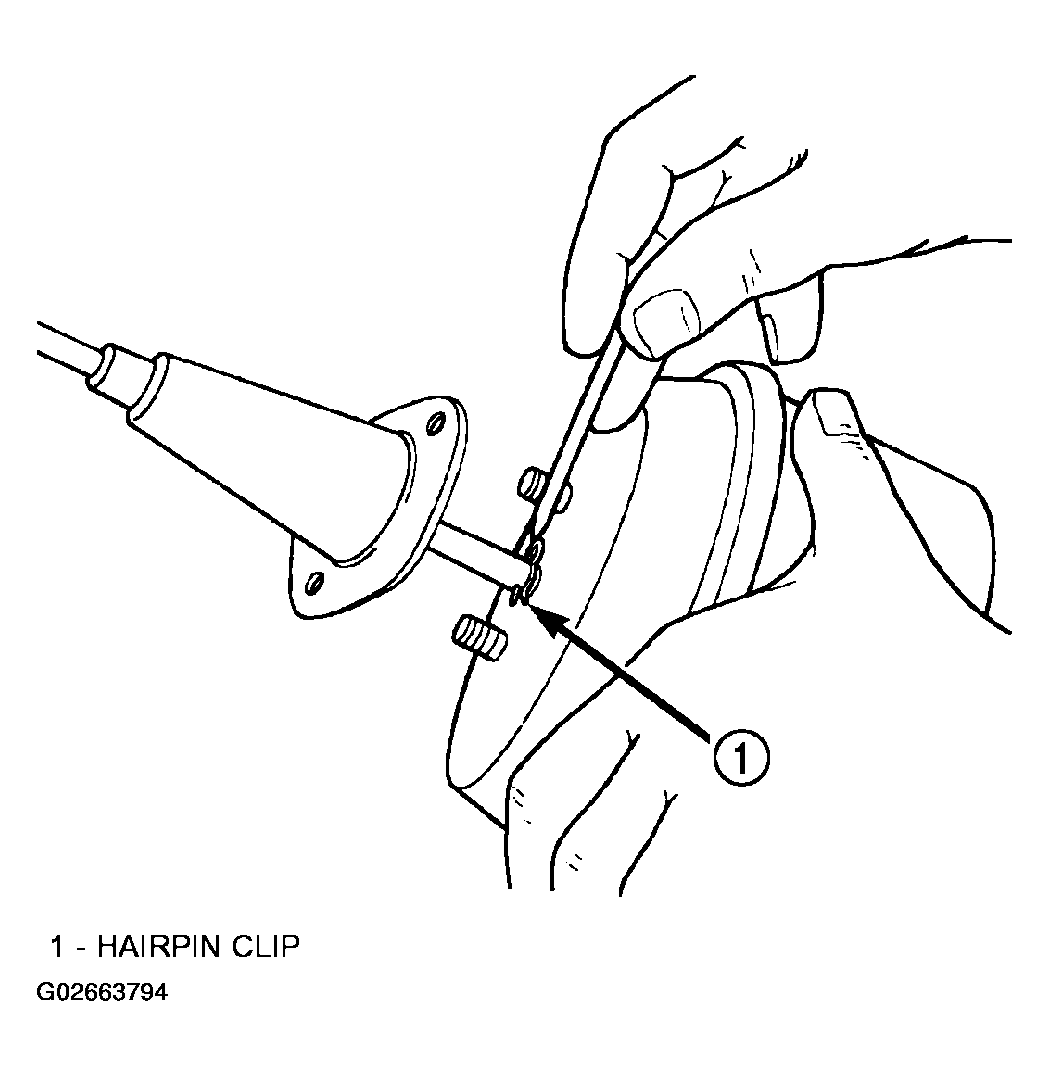

Install hairpin clip to servo and cable (Figure ).
Install servo studs through cable bell and then the bracket.
Install nuts, tighten to 7 N.m (60 in. lbs.).
Install speed control cable to throttle cam.
Connect electrical connector.
Connect the vacuum hose to servo.
Install the engine cover.
Install the negative battery cable.
Install the air cleaner lid, and makeup air hose.
