Clutch Release Bearing: Installation
- The pivot ball pocket in the lever, as well as the lever arms should be lubricated with grease prior to installation.

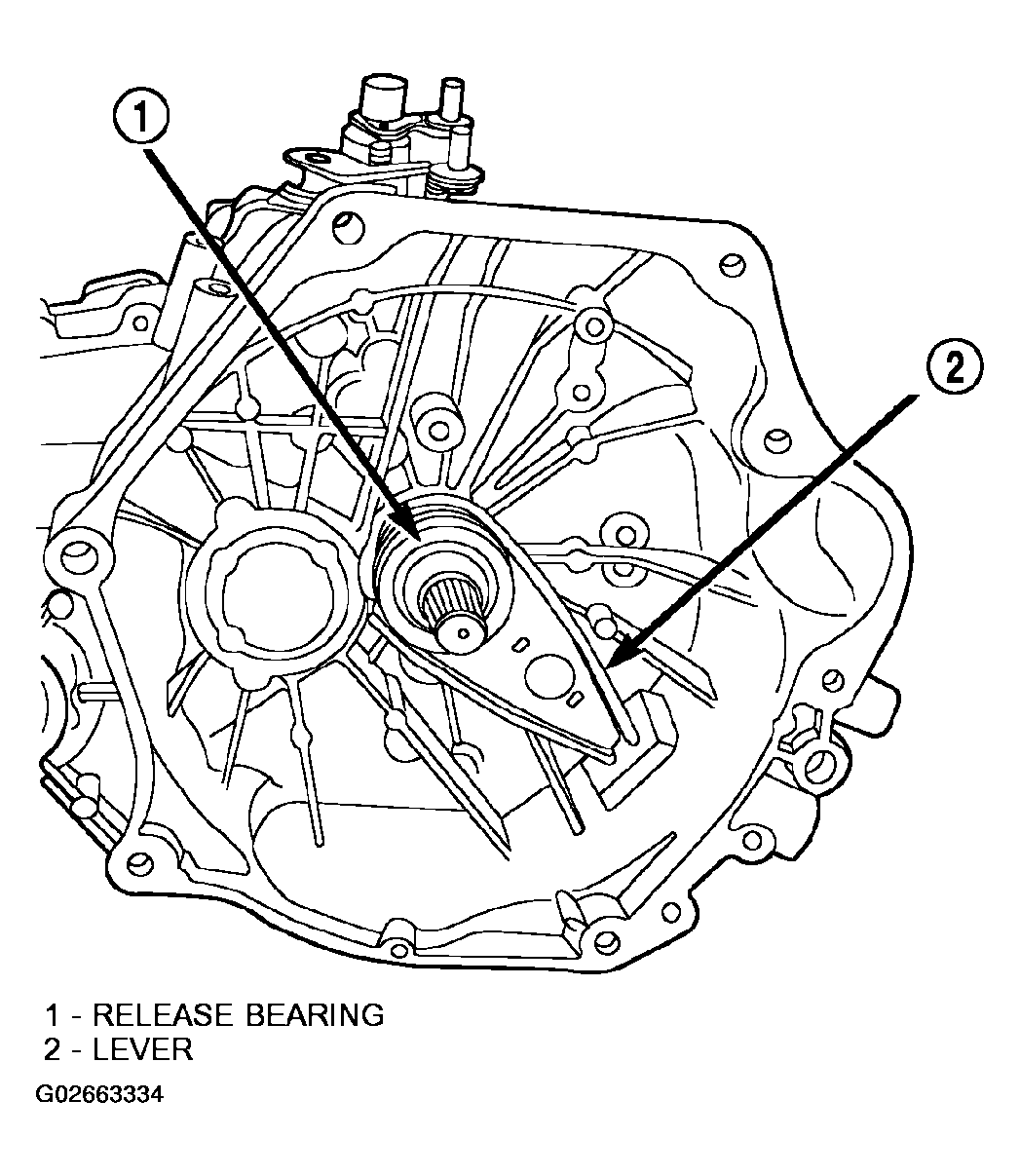

- Assemble the lever to the bearing (Figure ). The small pegs on the bearing must go over the lever arms.
- Slide the bearing and lever assembly onto the input shaft bearing retainer, as a unit.
- Snap the clutch release lever onto the pivot ball.
- Reinstall transaxle assembly. (Refer to TRANSMISSION/TRANSAXLE/MANUAL - INSTALLATION ).
