Power Steering Gear: Pump: Disassembly

NOTE: The only serviceable part of the power steering pump is the pulley. The following procedure is for the removal and installation of the pulley from the pump.
NOTE: The power steering pump must be removed from the vehicle for power steering pump pulley service. (Refer to STEERING/PUMP - REMOVAL  ).
CAUTION: Use care when removing and installing the power steering pump pulley. It is made of plastic composite, except for the center shank. Use the special tools in the shank area only as described in the following procedure.
CAUTION: Do not hammer on the power steering pump pulley or shaft to remove the power steering pump pulley. This will damage the pulley and the power steering pump.
  1. Install Puller, Special Tool C-4333, or an equivalent, on the steering pump pulley as shown (Fig 1 ). Tighten the puller screw drive and remove the pulley from the power steering pump shaft.

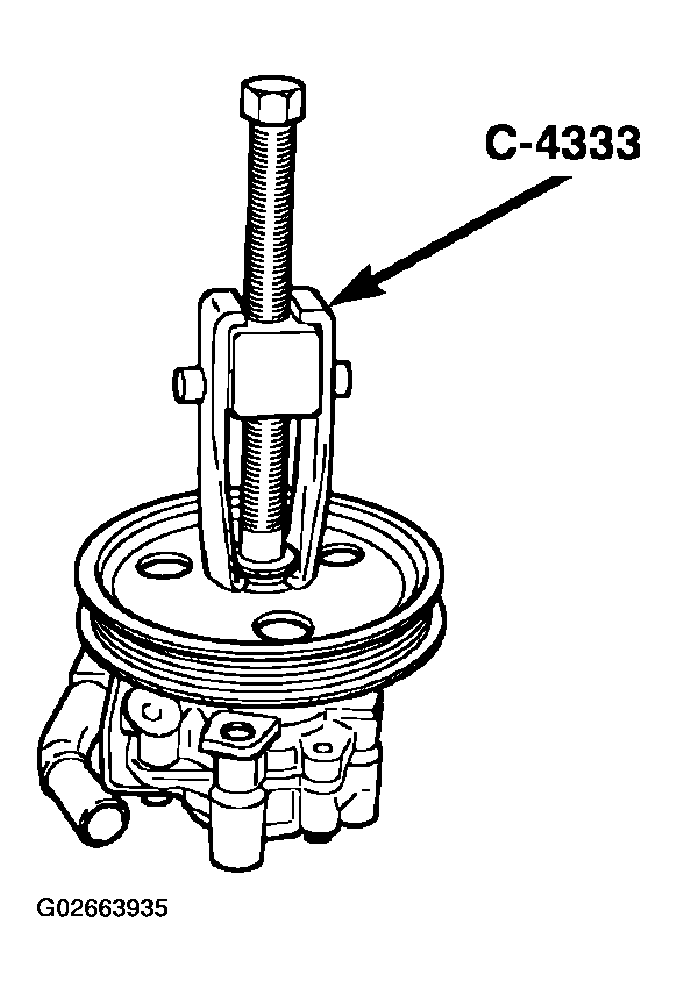

    Fig 1: Removing Pulley
    G02663935Courtesy of DAIMLERCHRYSLER CORP.
  2. Remove the puller from the pulley.
