Surge Solenoid Harness Connector End View (Turbo)

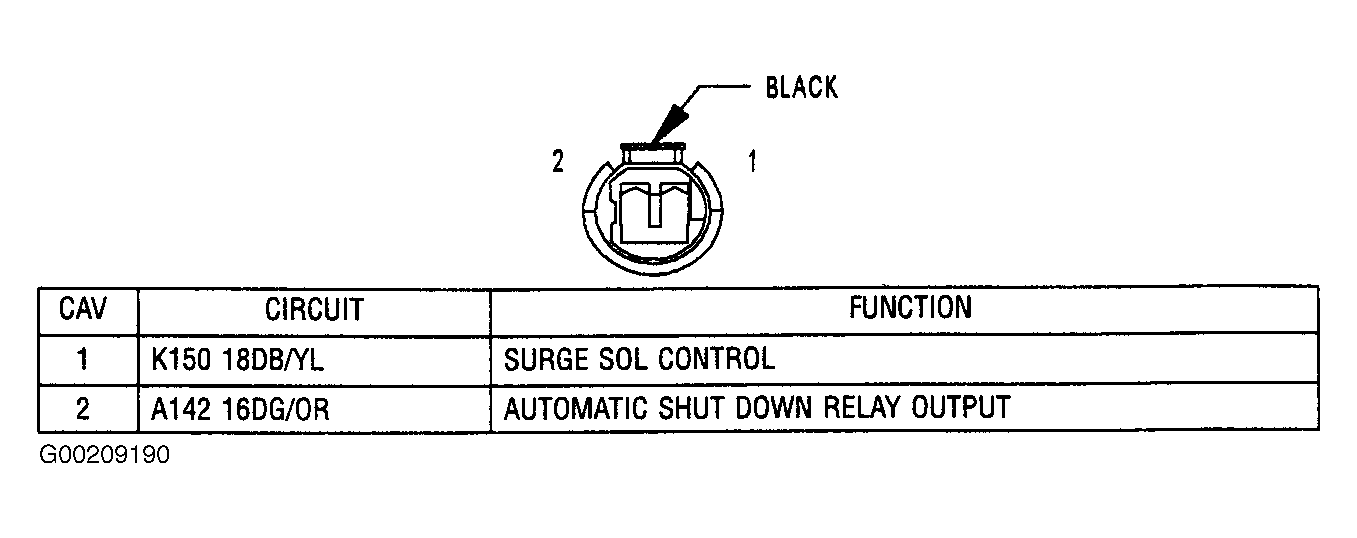

Fig 1: Identifying Surge Solenoid Harness Connector Terminals (Turbo)

G00209190

Courtesy of CHRYSLER CORP.
