Speed Proportional Steering

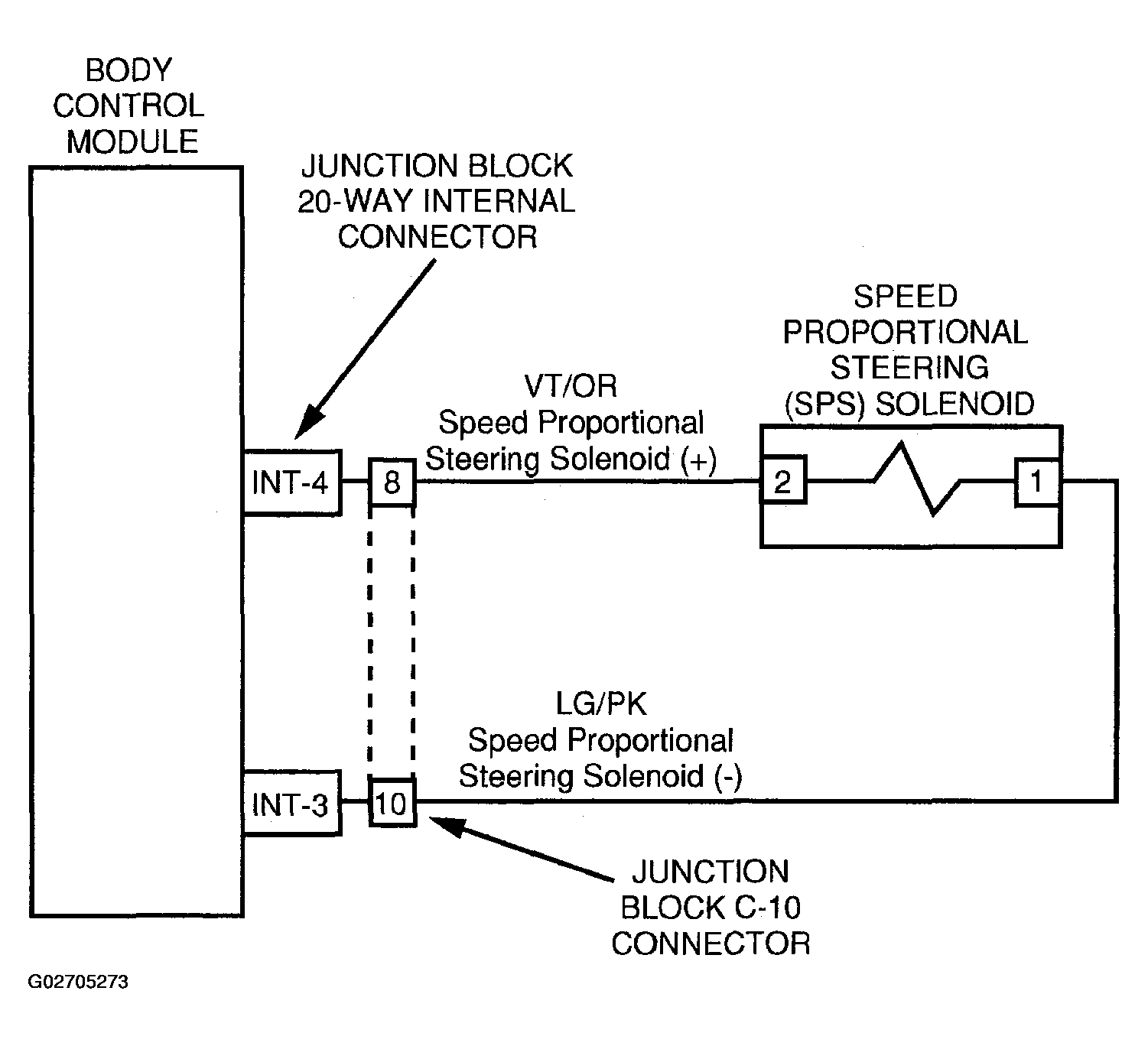

Fig 1: Schematic Diagrams - Speed Proportional Steering
G02705273Courtesy of DAIMLERCHRYSLER CORP.
