Catalytic Converter(S): Description

The close coupled, three-way catalytic converter inlets are connected to the exhaust manifolds by the use of V-Band clamps (Fig 1 ). The left and right side converter outlet pipe connects to the exhaust system (Fig 1 ).

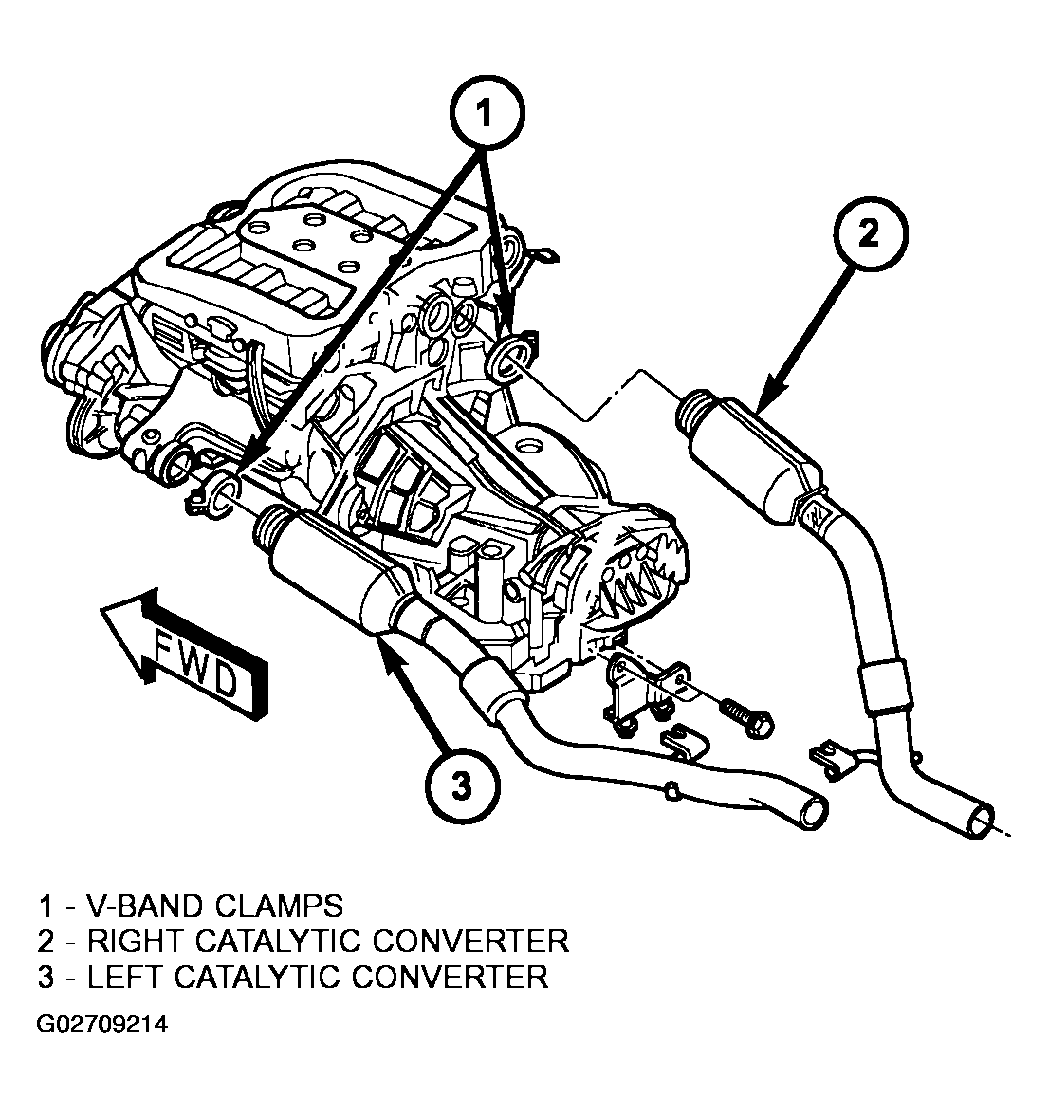

Fig 1: Exploded View Of Catalytic Converters

Courtesy of DAIMLERCHRYSLER CORP.
