Right Headlamp Leveling Motor (Export) Connector End View
Right Headlamp Leveling Motor (Export) Connector End View

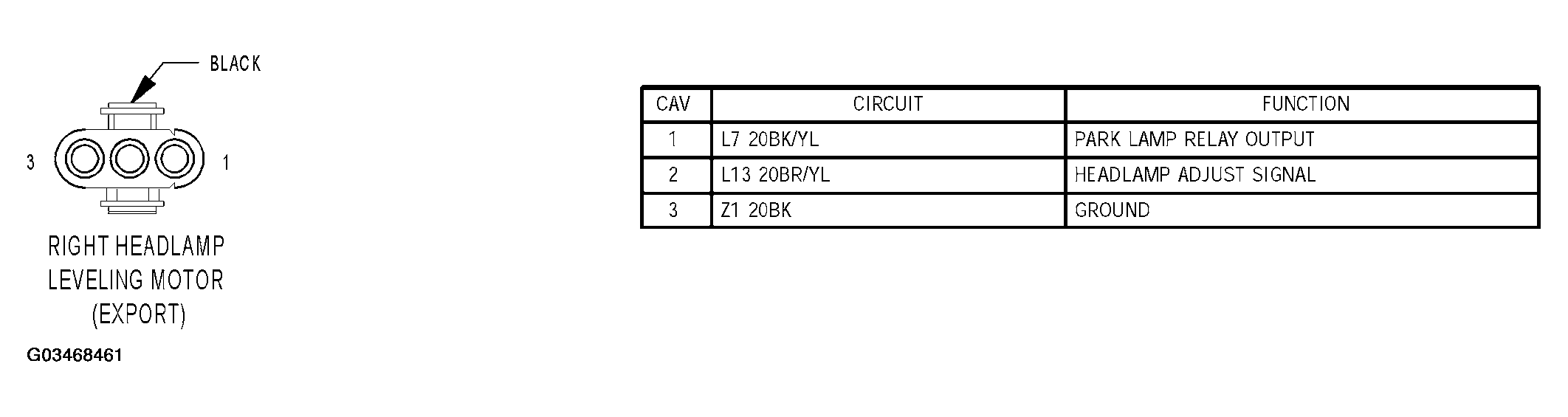

Fig 1: Right Headlamp Leveling Motor (Export) Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
