Right Bank Down Oxygen Sensor 1/2 Connector End View
Right Bank Down Oxygen Sensor 1/2 Connector End View

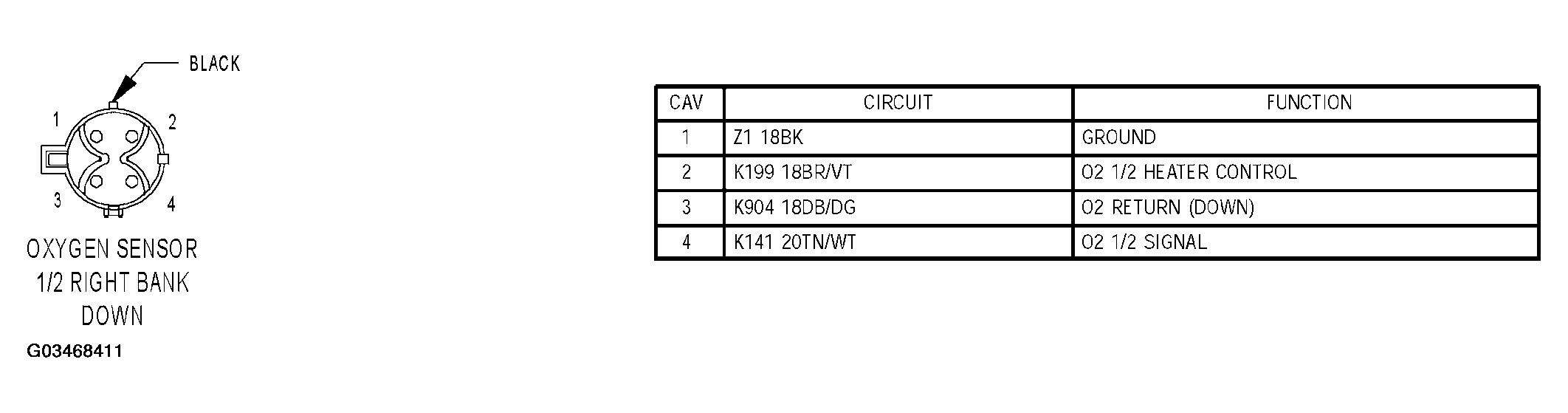

Fig 1: Right Bank Down Oxygen Sensor 1/2 Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
