Instrument Cluster Connector End View (C1)

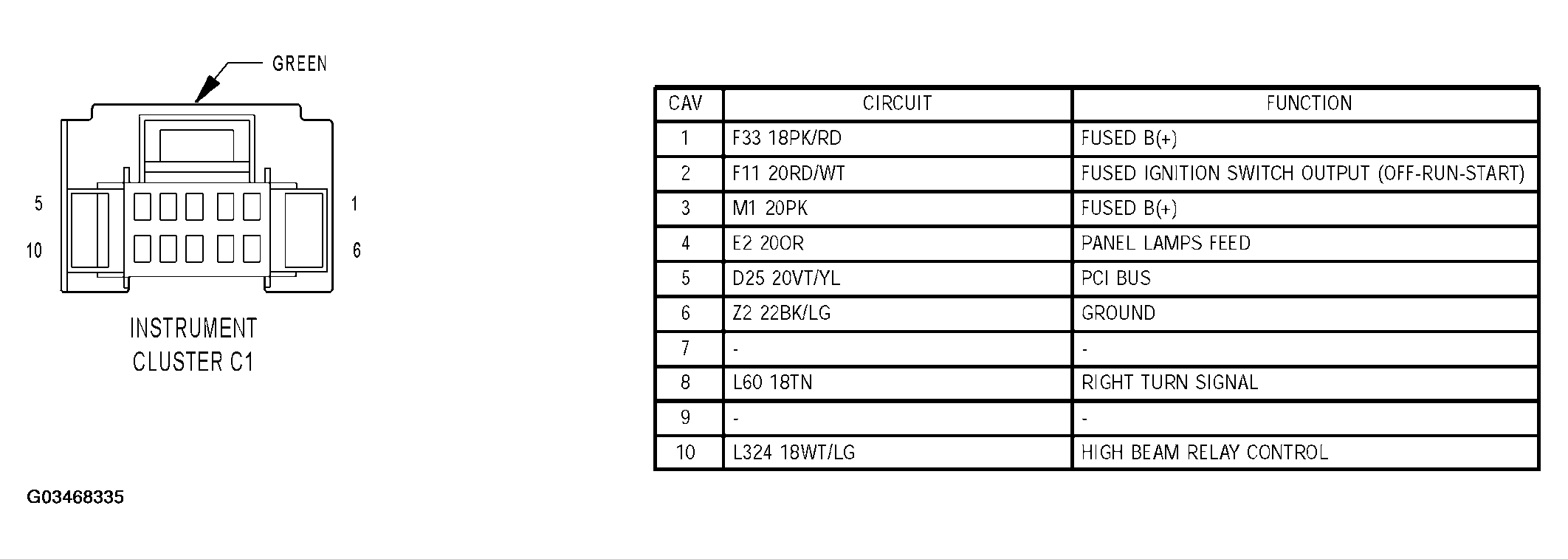

Fig 1: Instrument Cluster Connector End View (C1)

G03468335

Courtesy of DAIMLERCHRYSLER CORP.
