Adjustable Pedals Module (Except Export) - 14-Way Connector End View
Adjustable Pedals Module (Except Export) - 14-Way Connector End View

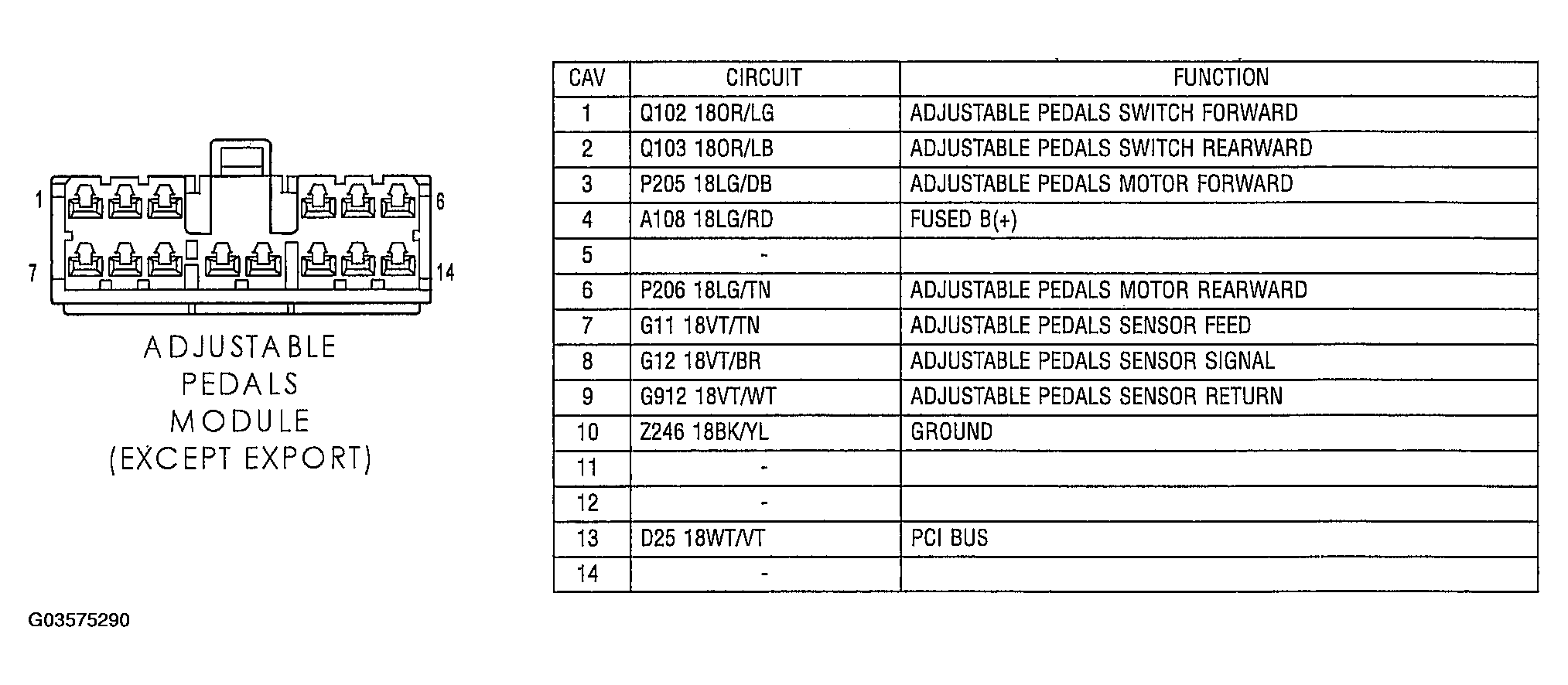

Fig 1: Adjustable Pedals Module (Except Export) - 14-Way Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
