Instrument Cluster C2 - Red 13 Way

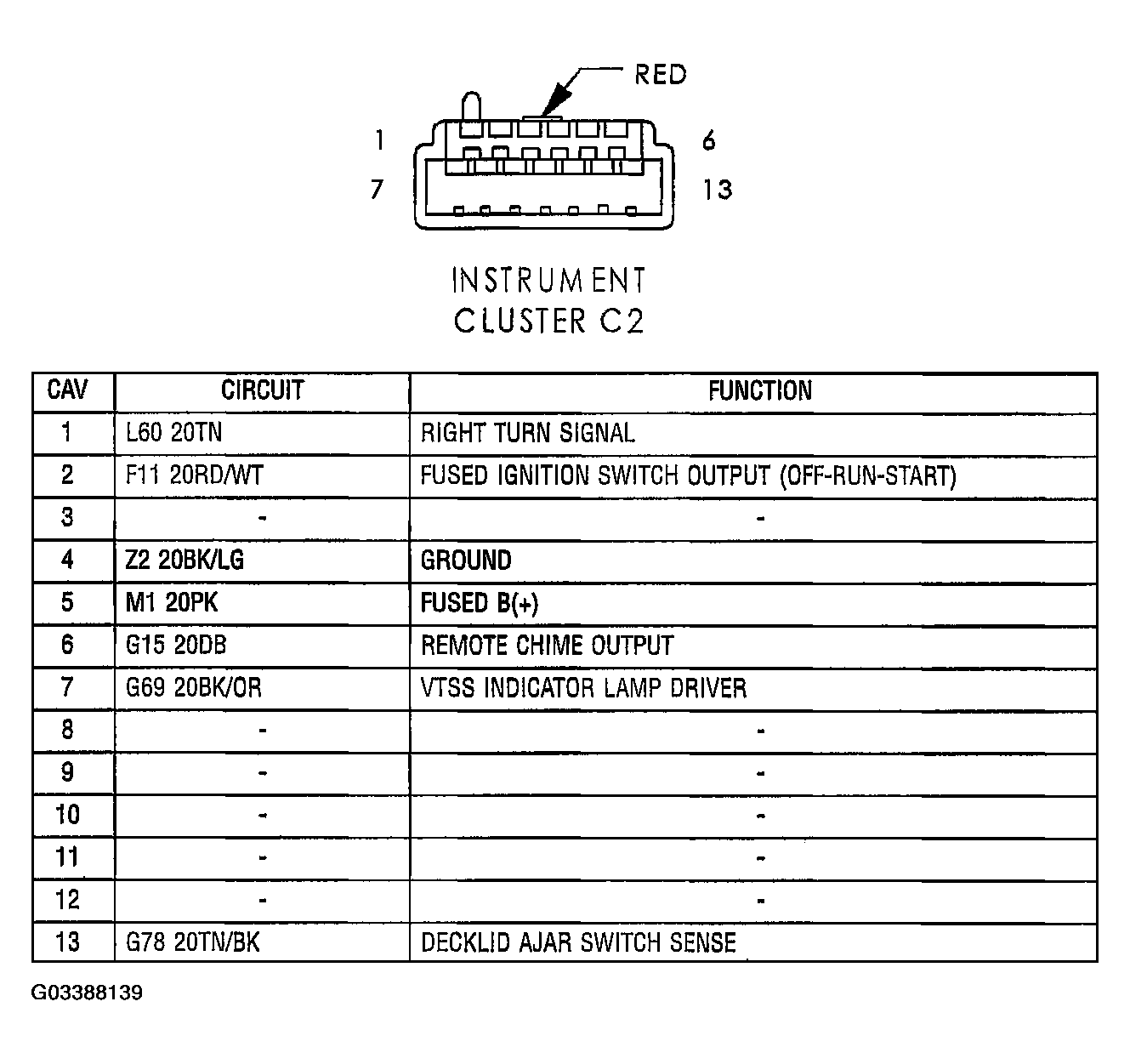

Fig 1: Identifying Instrument Cluster C2 Connector

G03388139

Courtesy of DAIMLERCHRYSLER CORP.
