Fuses (PDC) & Relays

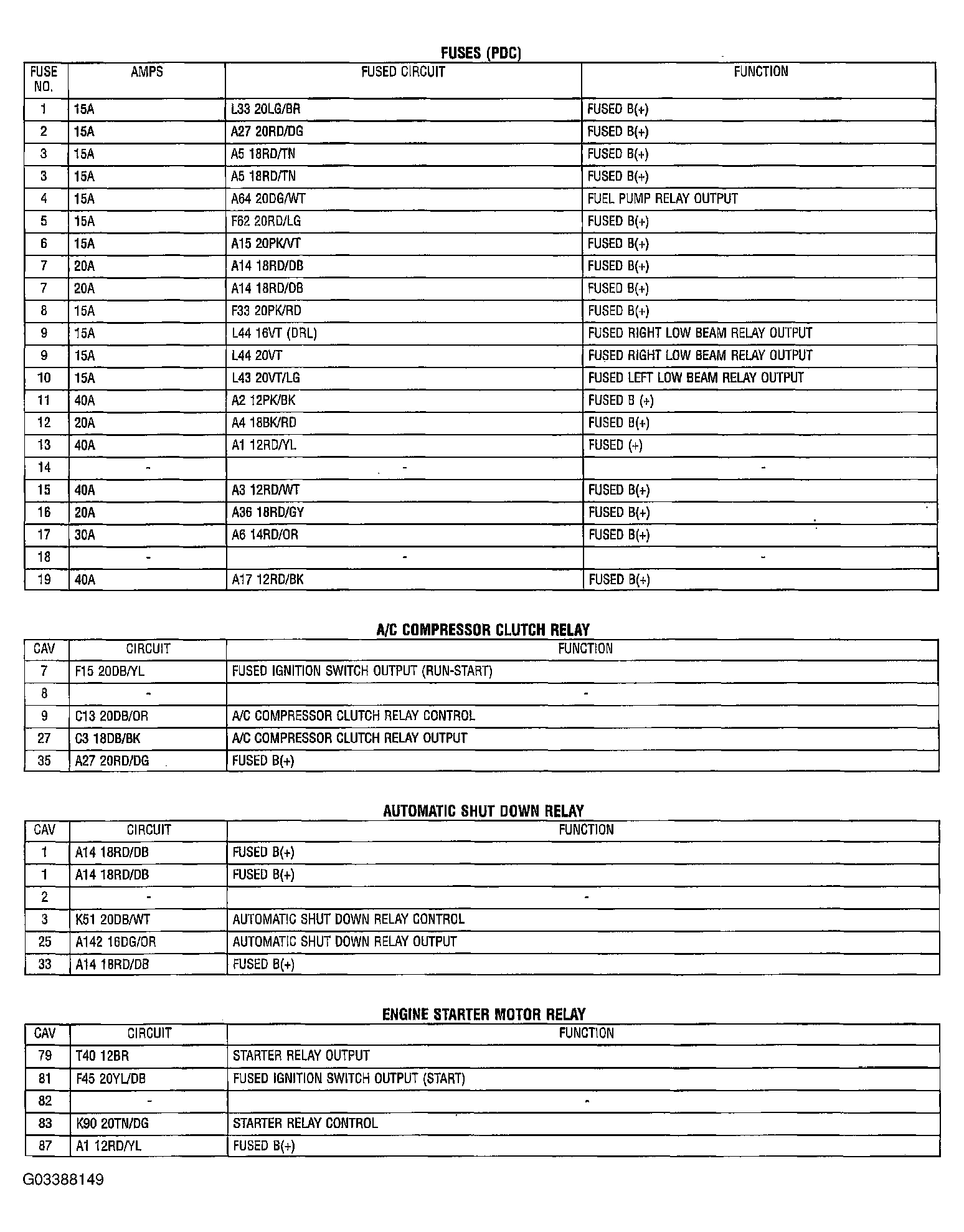

Fig 1: Identifying Fuses (PDC) Chart & A/C Compressor Clutch, Automatic Shut Down & Starter Motor Relay Circuits

G03388149

Courtesy of DAIMLERCHRYSLER CORP.
