Power Steering System - Except Coupe: Gear: Assembly
- Lubricate replacement mounting bolt isolator bushing using Mopar, Silicone Spray Lube or an equivalent.

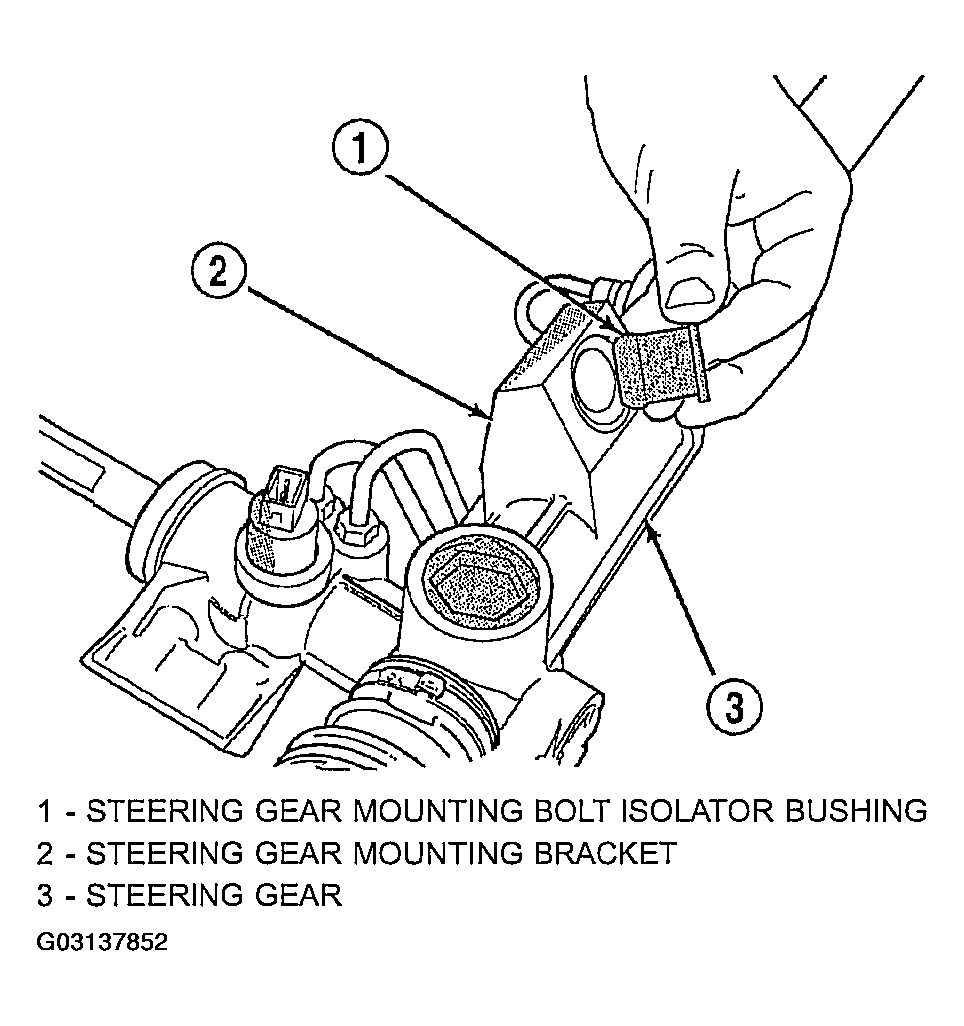

- Install the mounting bolt isolator bushing into the steering gear mounting bracket from the bottom side of the bracket (See Fig 1).

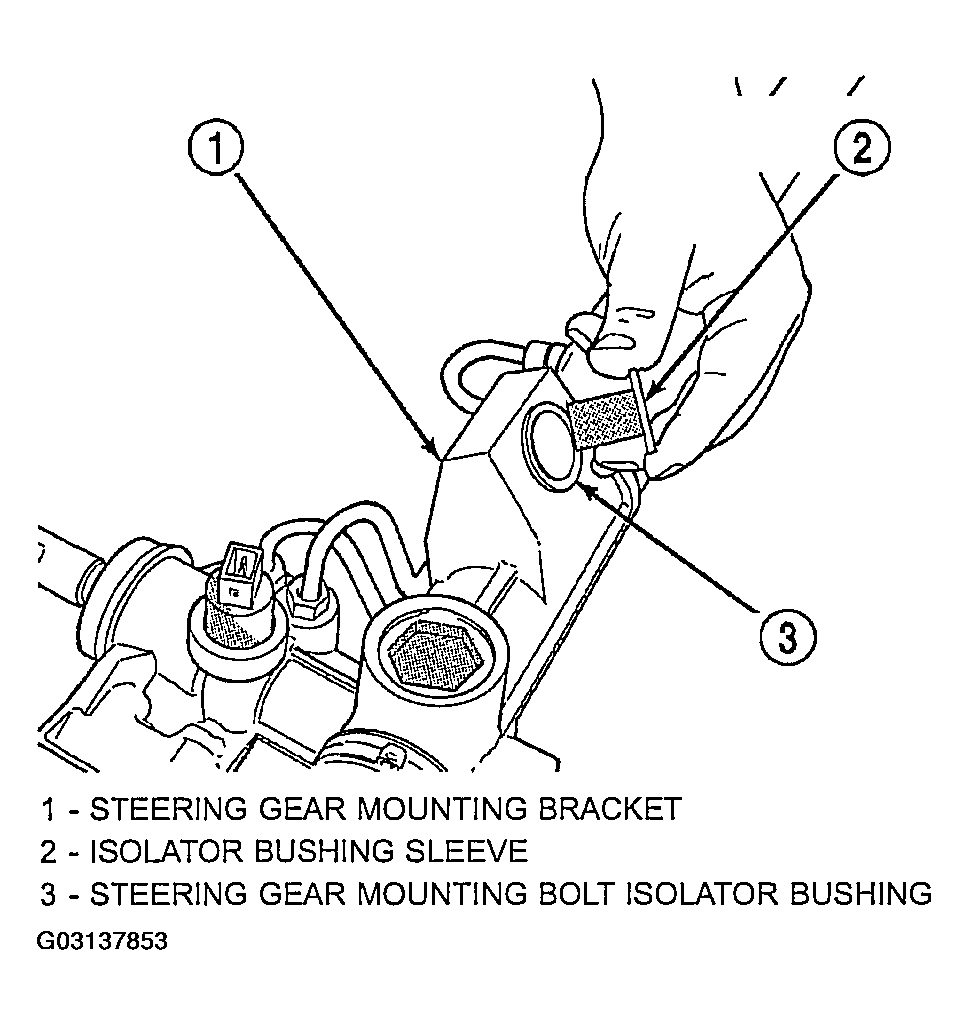

- Install mounting bolt isolator bushing sleeve into isolator bushing by pressing the sleeve into the bushing by hand (See Fig 2).
