Shift Mechanism: Installation

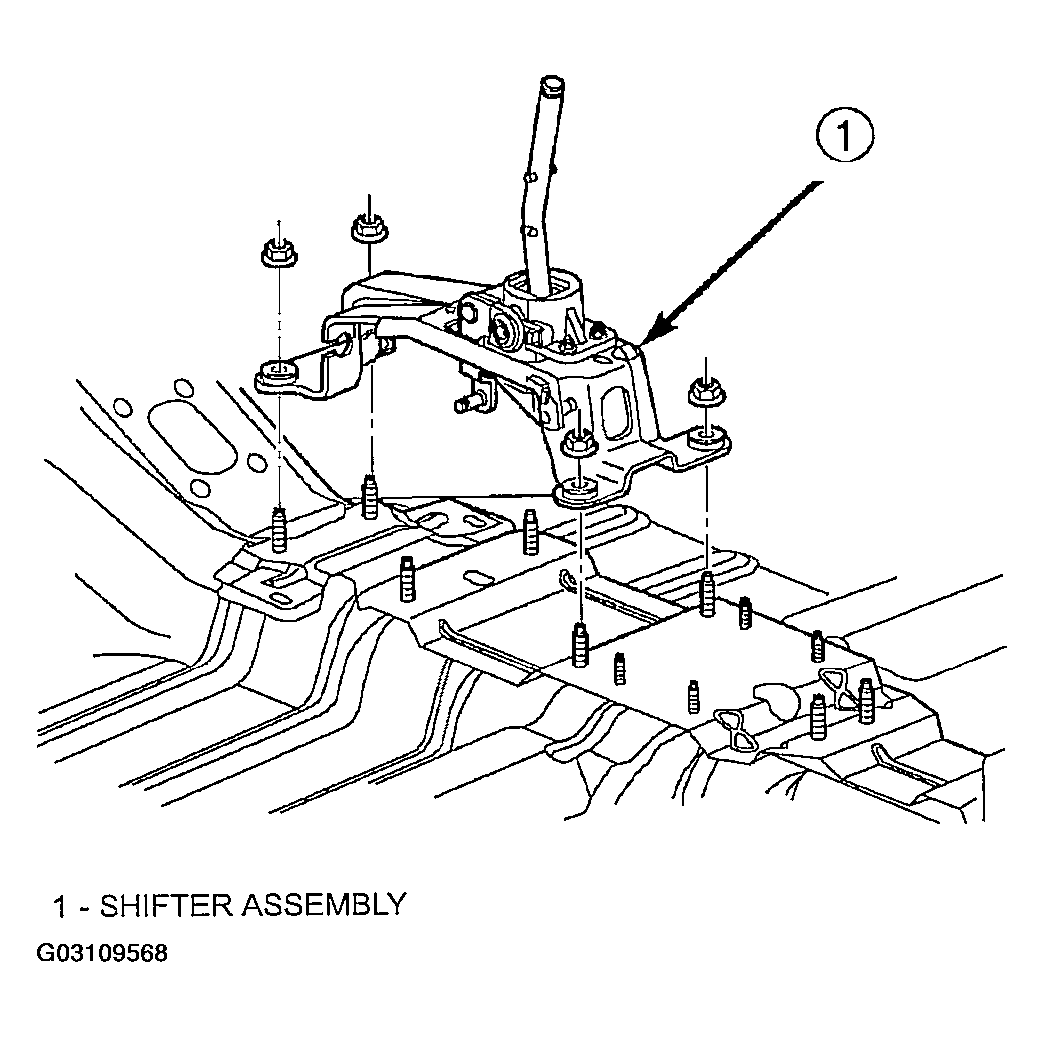

  1. Install shifter assembly to floor pan (see Figure ). Install and tighten four nuts to 12 N.m (105 INCH lbs.) torque.

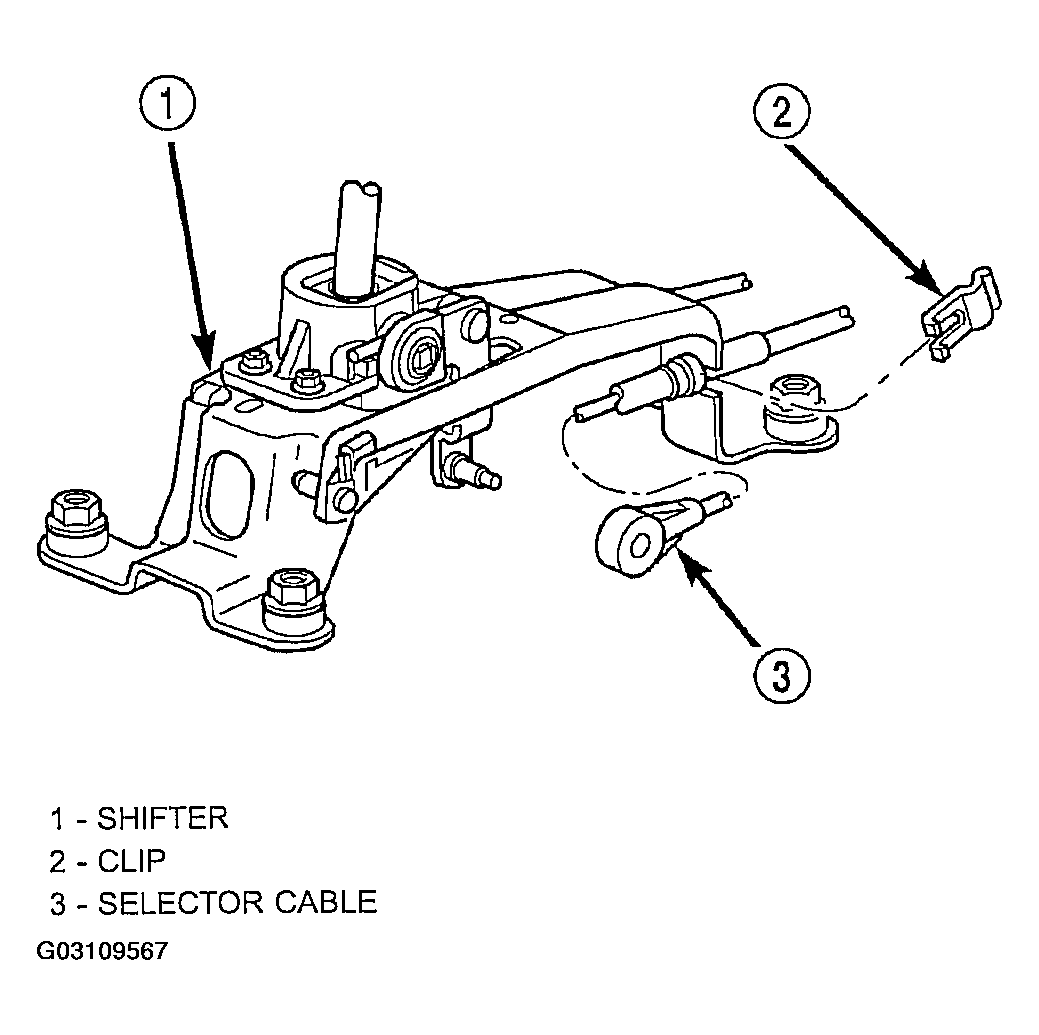

  2. Install selector cable to shifter lever and secure cable to shifter bracket. Install clip (see Figure ).

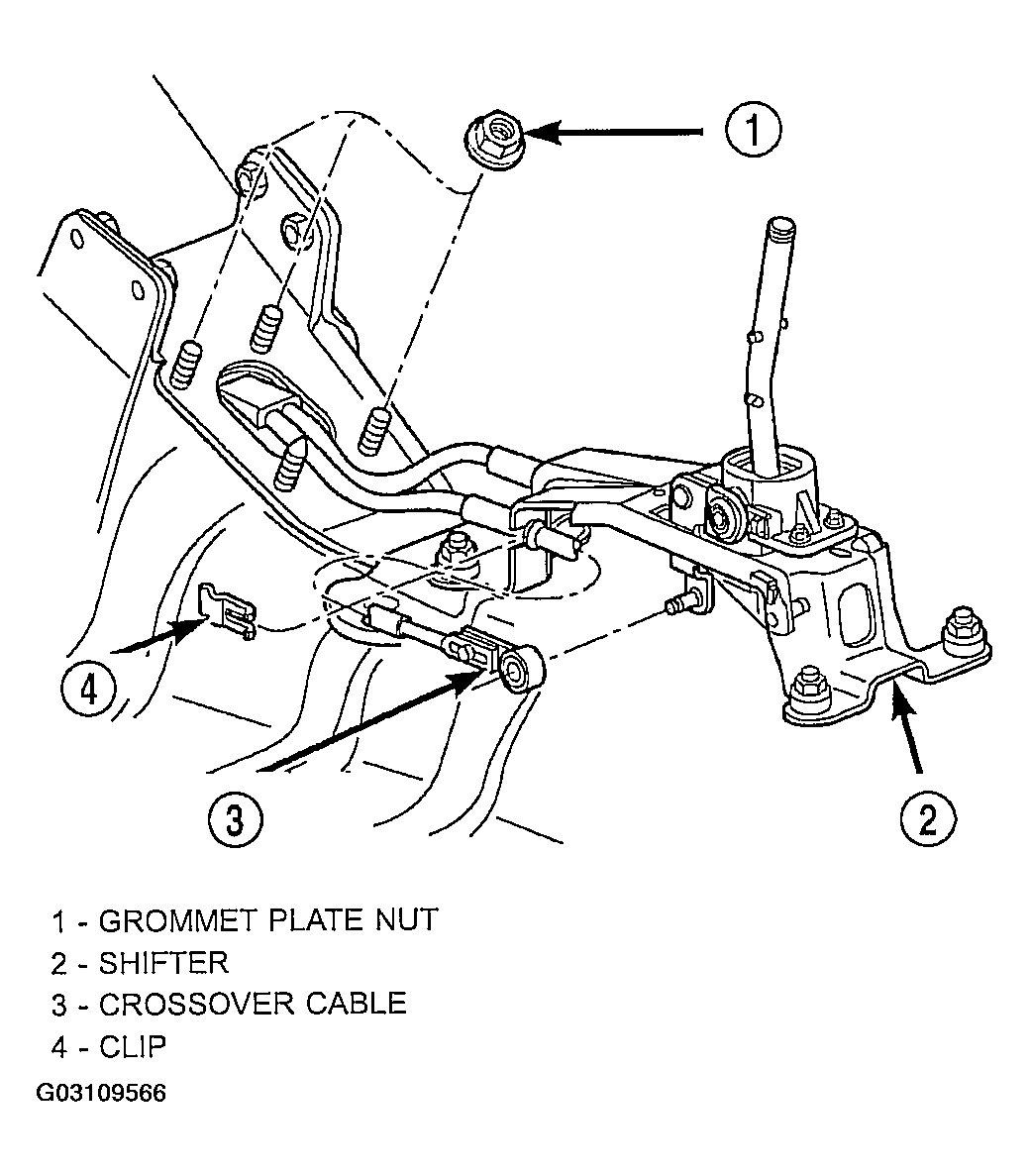

  3. Install crossover cable to shifter lever and secure cable to shifter bracket. Install clip (see Figure ).

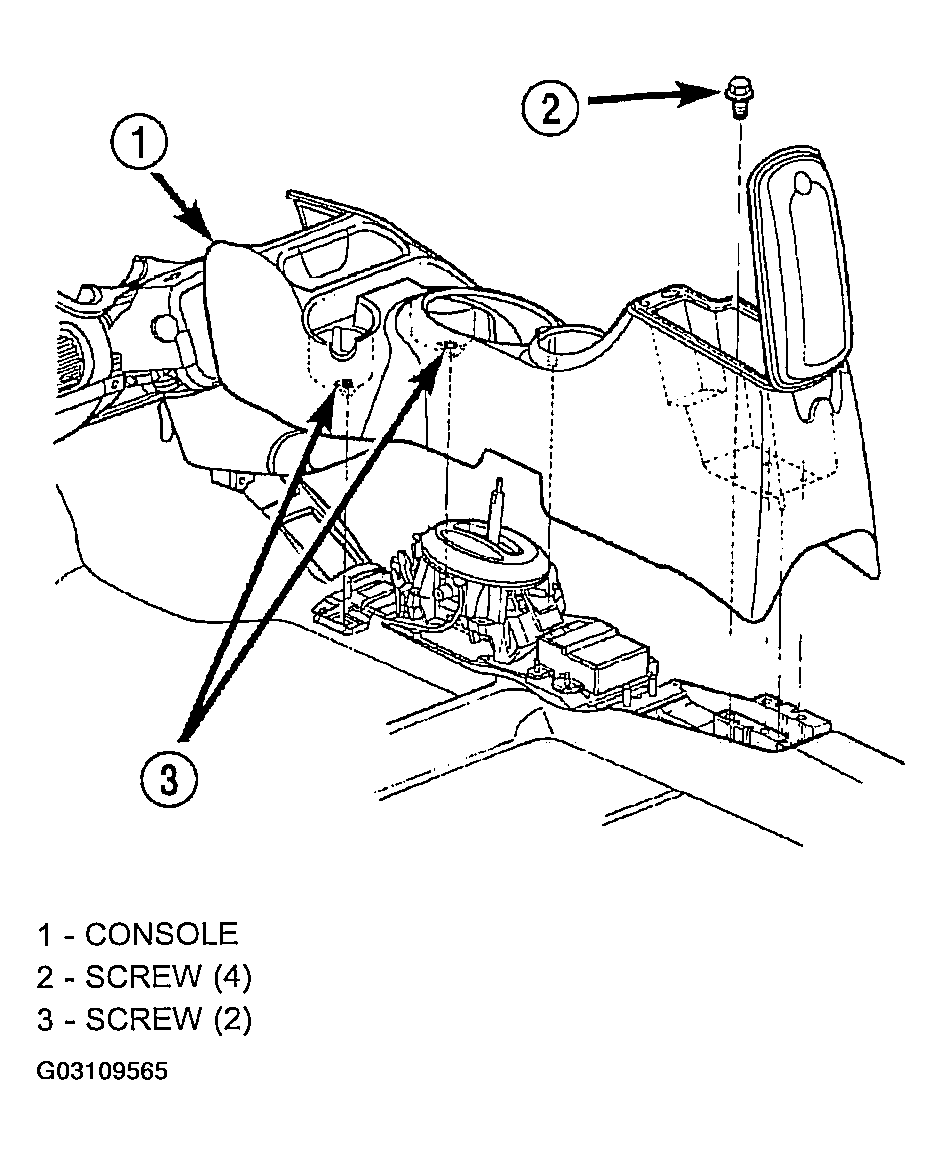

  4. Install center console assembly (see Figure ).
  5. Install knob/boot assembly to shifter lever, align knob to three o'clock position, push knob down to engage spring and rotate counter clockwise.
  6. Locate boot to console at forward tab and secure to console with retaining tabs.
