Power Distribution Center

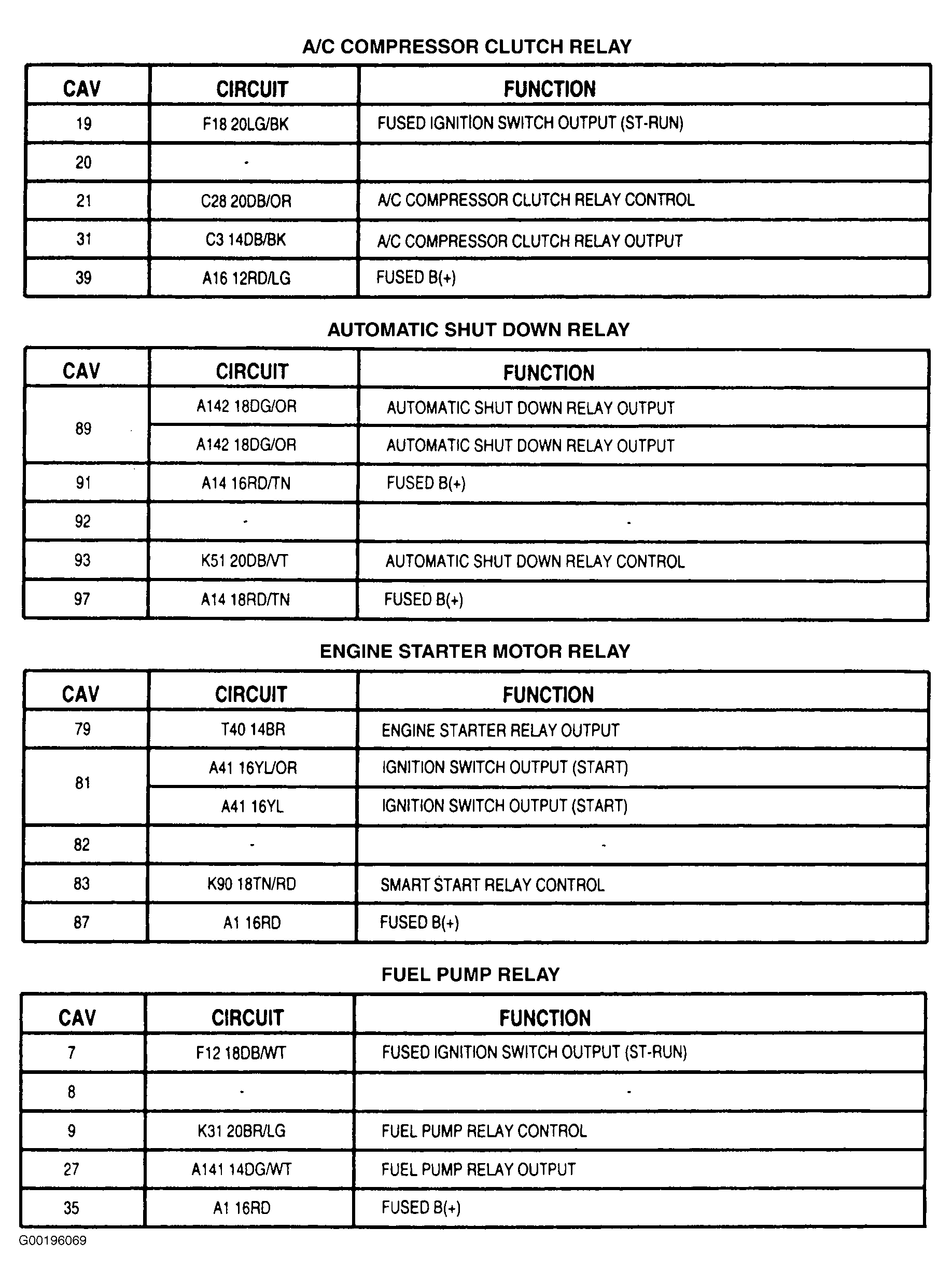

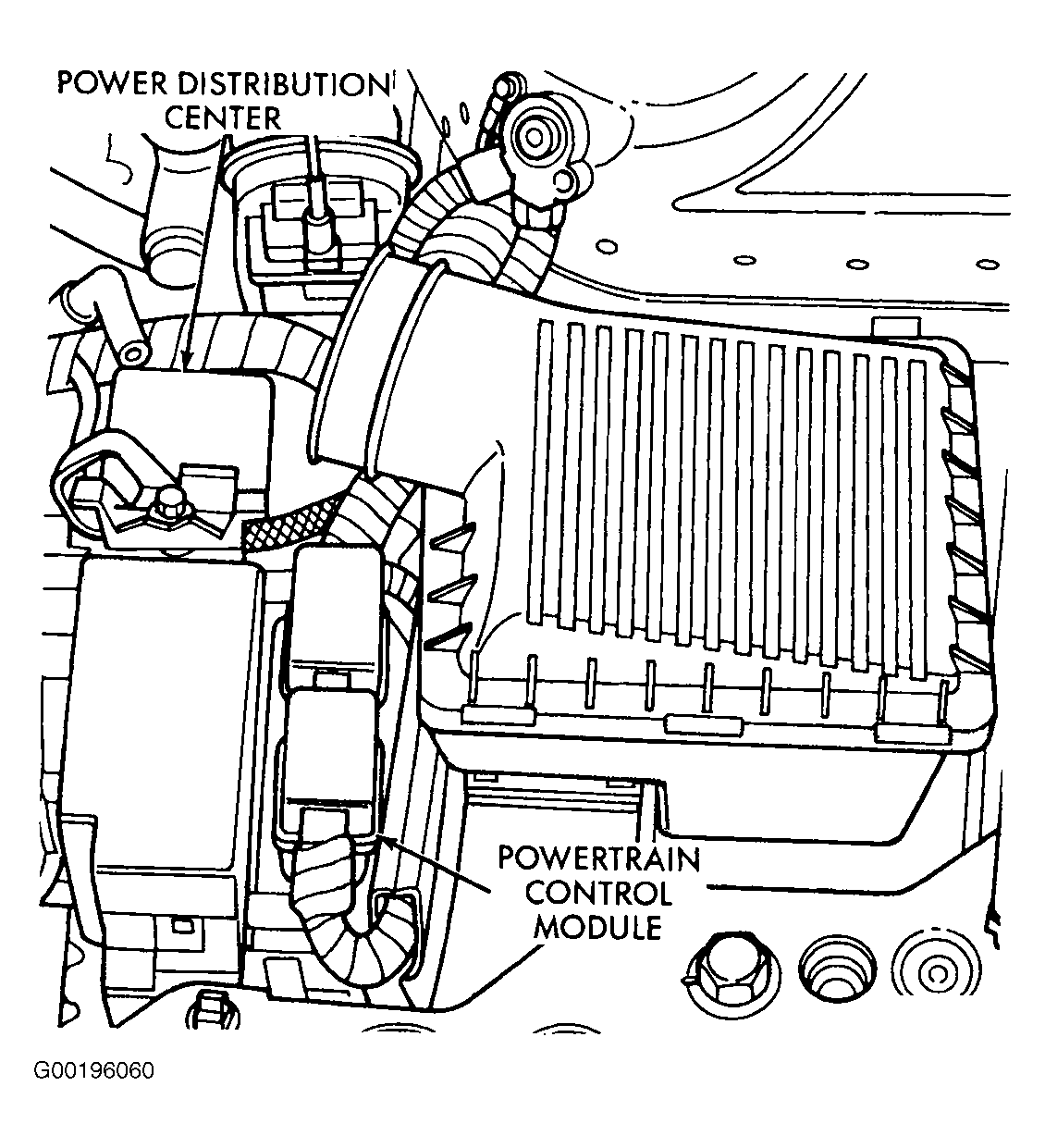

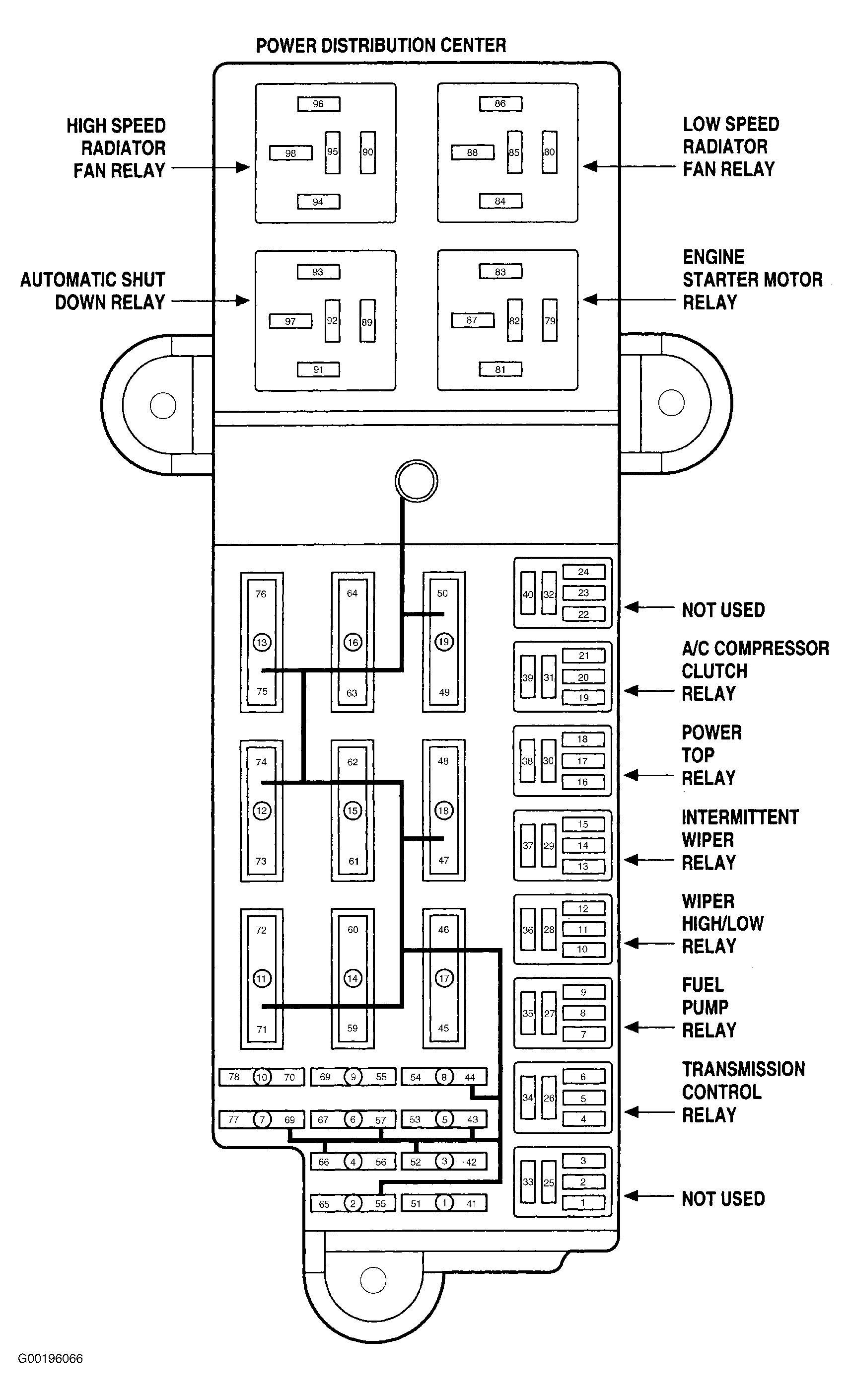

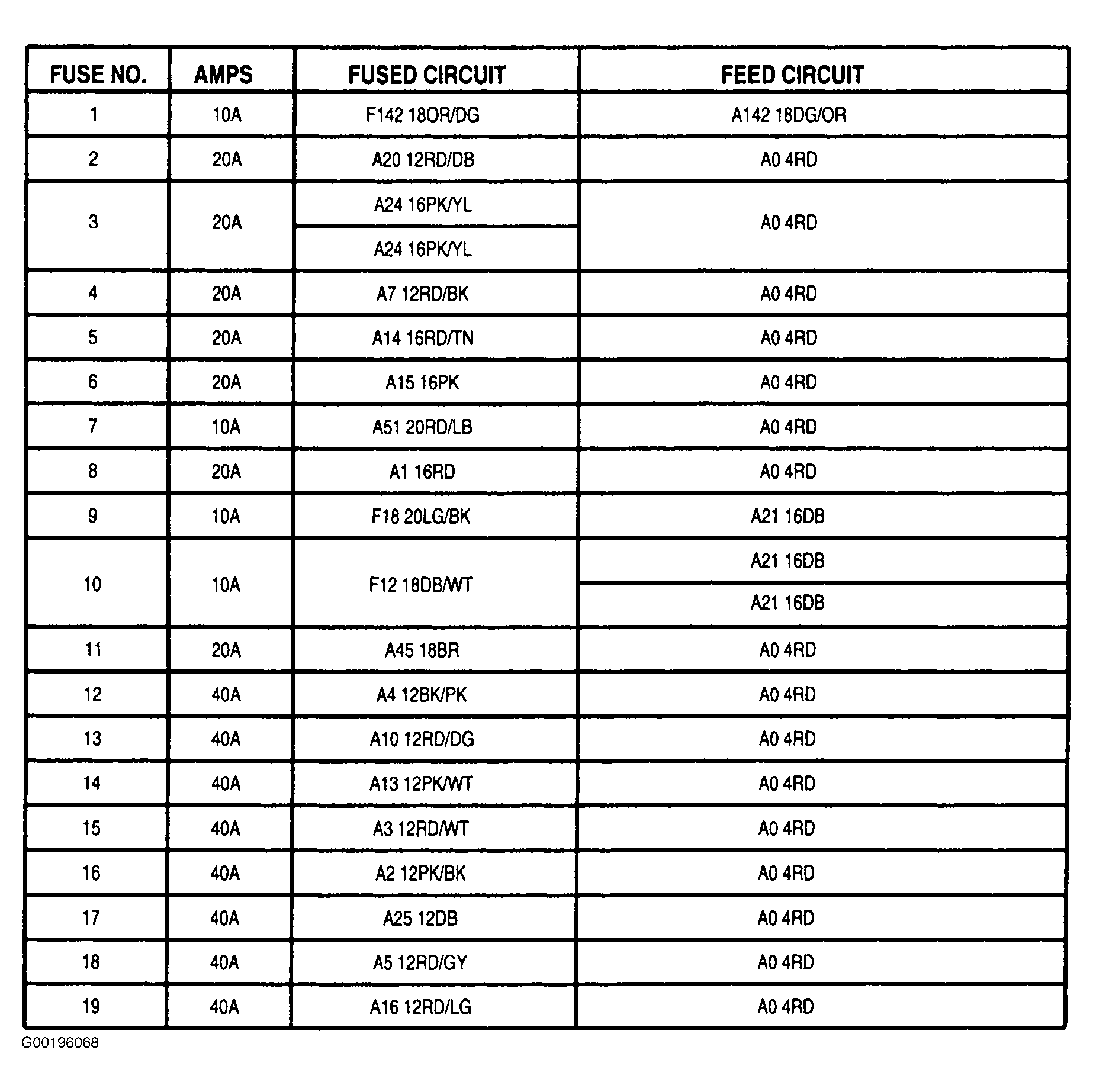

The Power Distribution Center (PDC) contains dedicated fuses and relays, is located in the left side of the engine compartment, next to the air filter housing. See Fig 1 . For fuse, circuit breakers, junction block connectors, relay locations and circuit identification, see Fig 2 -Fig 5
POWER DISTRIBUTION CENTER FUSE & CIRCUIT IDENTIFICATION
| Fuse | Amperage | Circuit | ||
|---|---|---|---|---|
| 1 | 10 | Automatic Shut Down Relay, Oxygen Sensor 1/2 Downstream | ||
| 2 | 20 | Controller Anti-Lock Brake (Fused Battery Voltage) | ||
| 3 | 20 | Transmission Control Module, Transmission Control Relay | ||
| 4 | 20 | Junction Block Fuse No. 5 | ||
| 5 | 20 | Automatic Shut Down Relay, PCM-Fused Battery Voltage | ||
| 6 | 20 | Combination Flasher-Fused Battery Voltage, Sentry Key Immobilizer Module (Fused Battery Voltage) | ||
| 7 | 10 | Ignition Switch, Instrument Cluster-VTSS Set LED | ||
| 8 | 20 | Engine Starter Motor Relay, Engine Starter Motor, Fuel Pump Relay, Ignition Switch | ||
| 9 | 10 | A/C Compressor Clutch Relay, Low Speed Radiator Fan Relay, High Speed Radiator Fan Relay, Instrument Cluster-ABS Warning Indicator/Traction Warning Indicator/Oil Pressure Indicator/Brake Warning Indicator, Brake Shift Interlock Solenoid(1) , Fuel Pump Module-Fused Ignition Switch Output, Sentry Key Immobilizer Module | ||
| 10 | 10 | Junction Block Fuse No. 17, Fuel Pump Relay, PCM (Fused Ignition Switch Output, ST-RUN), Controller Anti-Lock Brake (Fused Ignition Switch Input, ST-RUN) | ||
| 11 | 20 | Seat Belt Control Module-Fused Battery Voltage | ||
| 12 | 40 | Rear Window Defogger Relay | ||
| 13 | 40 | Controller Anti-Lock Brake (Fused Battery Voltage) | ||
| 14 | 40 | Junction Block Fuses 7 & 8 | ||
| 15 | 40 | Headlight Delay Relay, Junction Block Fuse No. 10, Headlight Switch | ||
| 16 | 40 | Ignition Switch | ||
| 17 | 40 | Power Top Up/Down Relays | ||
| 18 | 40 | Intermittent Wiper Relay | ||
| 19 | 40 | Low Speed Radiator Fan Relay, High Speed Radiator Fan Relay, A/C Compressor Clutch Relay | ||
|
||||
