Junction Block

CAUTION: When replacing a blown fuse, it is important to use only a fuse having the correct amperage rating. The use of a fuse with a rating other than indicated may result in a dangerous electrical system overload. If a properly rated fuse continues to blow, it indicates a problem in the circuit that must be corrected.

NOTE: Junction block may also be referred to as the instrument panel fuse block.

The junction block is located on the left side of the instrument panel, see Fig 1 . For fuse, relay and circuit breaker identification and ratings, see Fig 2 -Fig 5 .

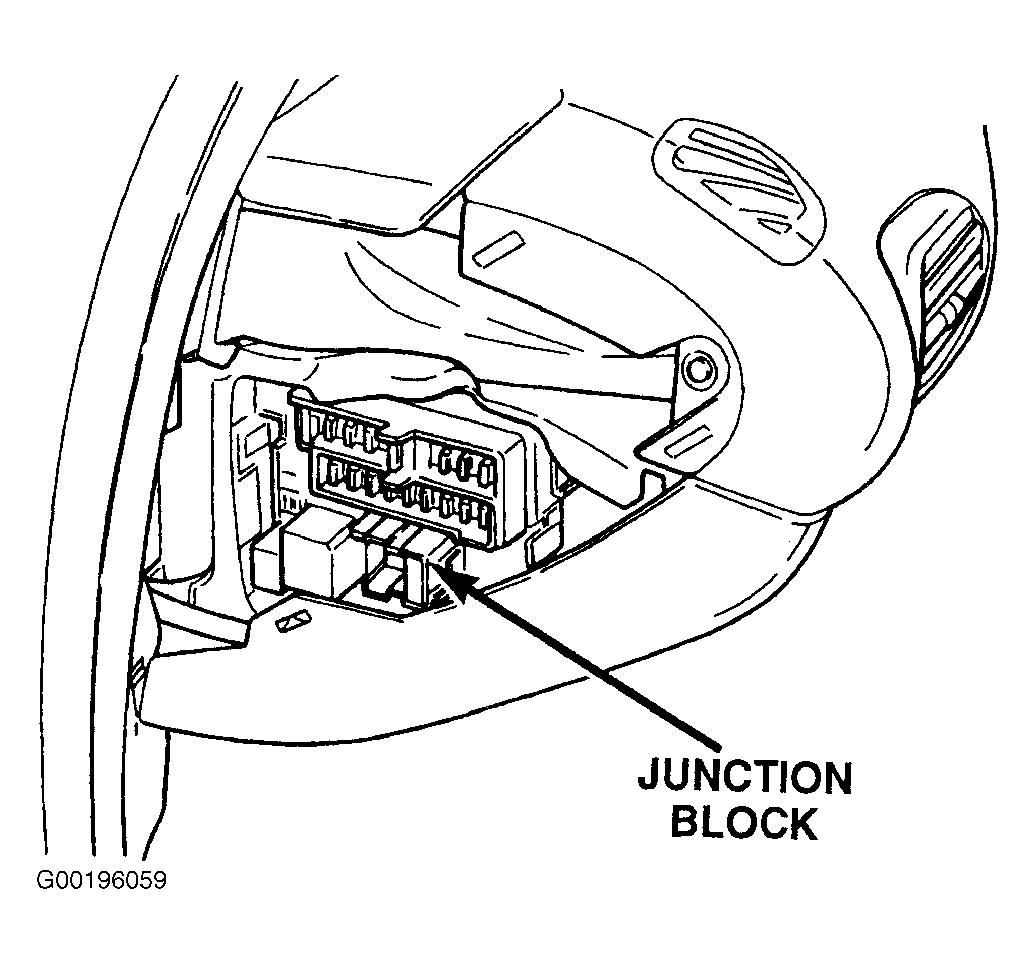

Fig 1: Locating Junction Block

Courtesy of CHRYSLER CORP.

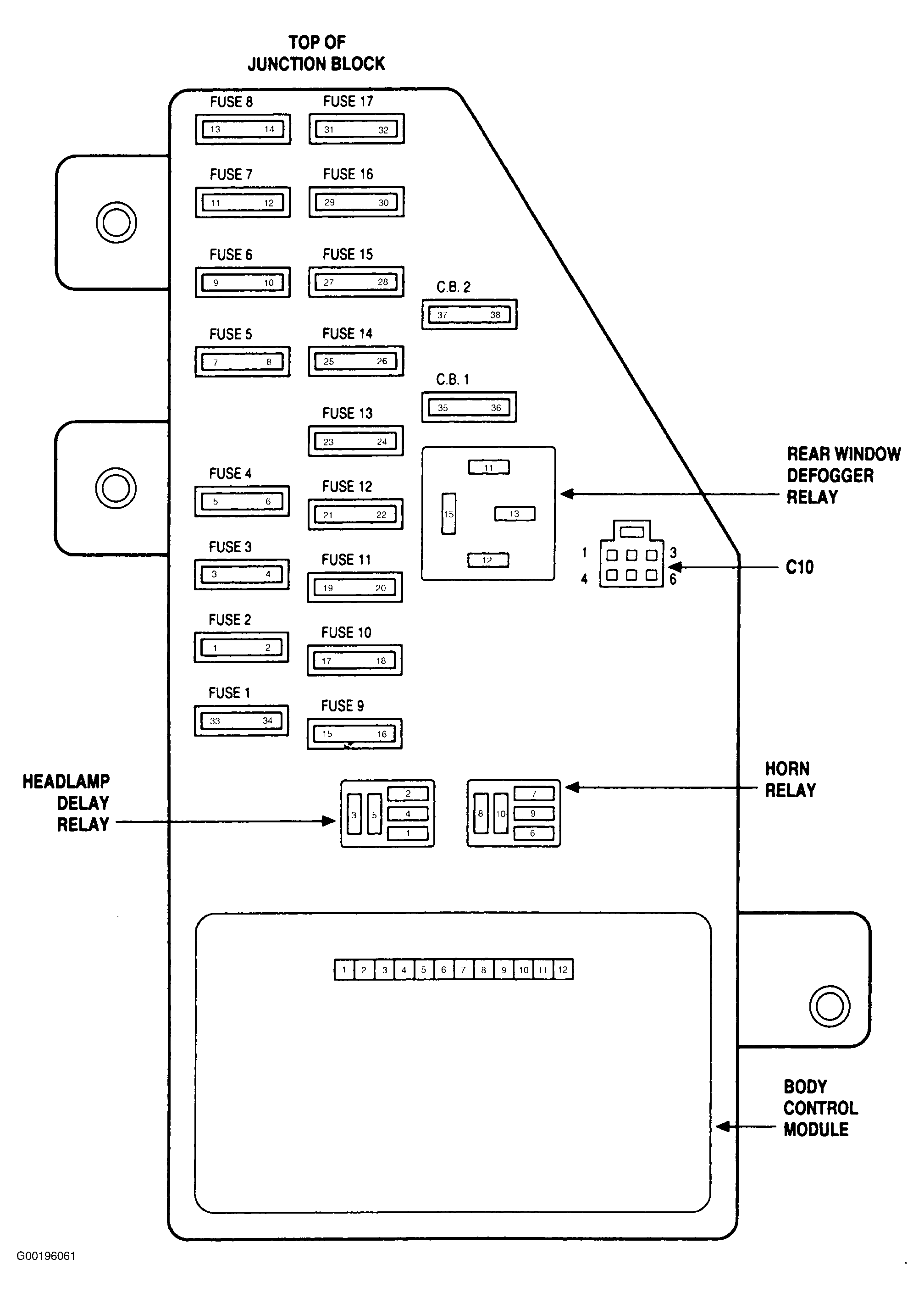

Fig 2: Identifying Junction Block Fuses & Relays

Courtesy of CHRYSLER CORP.

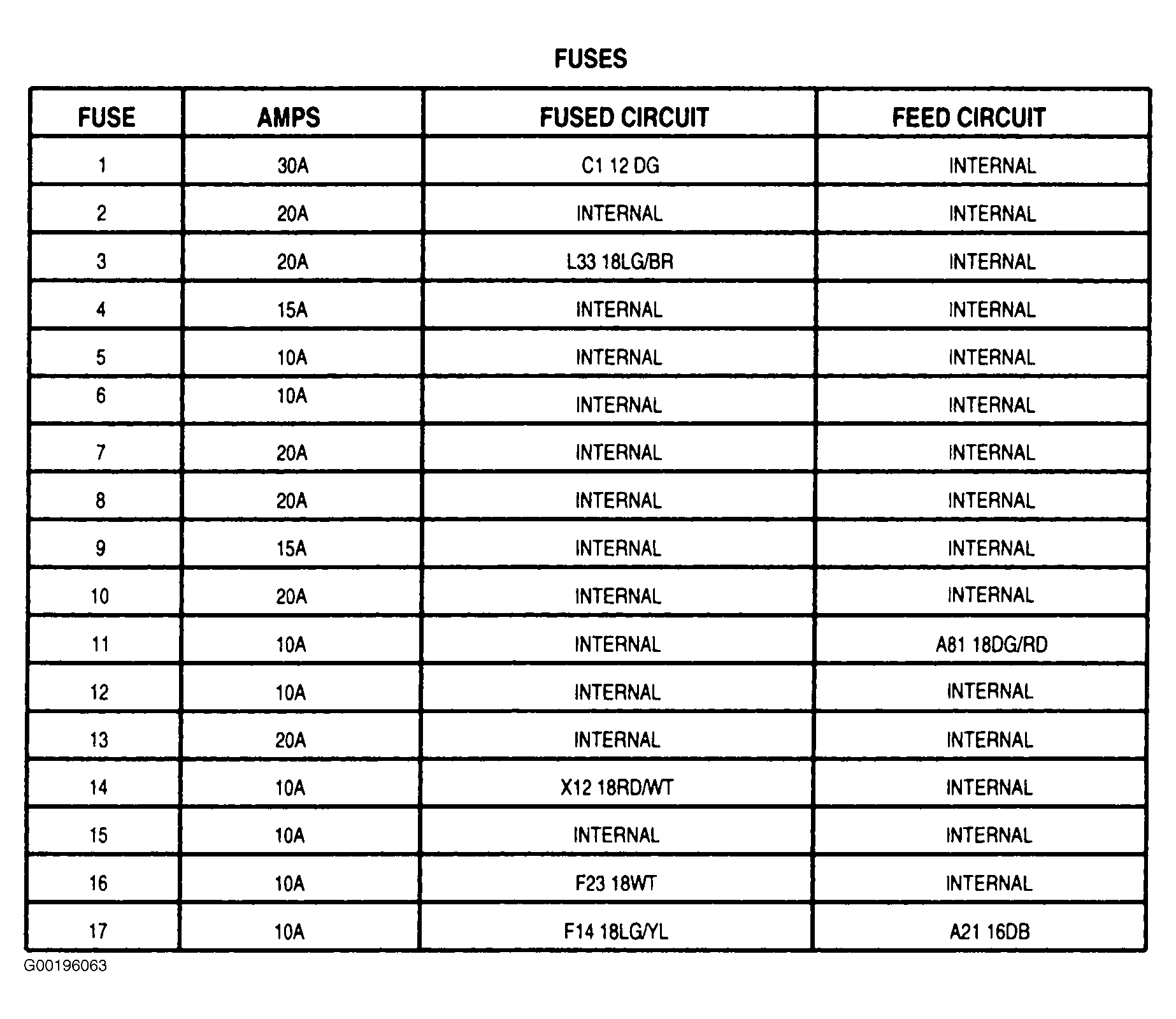

Fig 3: Identifying Junction Block Fuse Ratings & Circuits

Courtesy of CHRYSLER CORP.

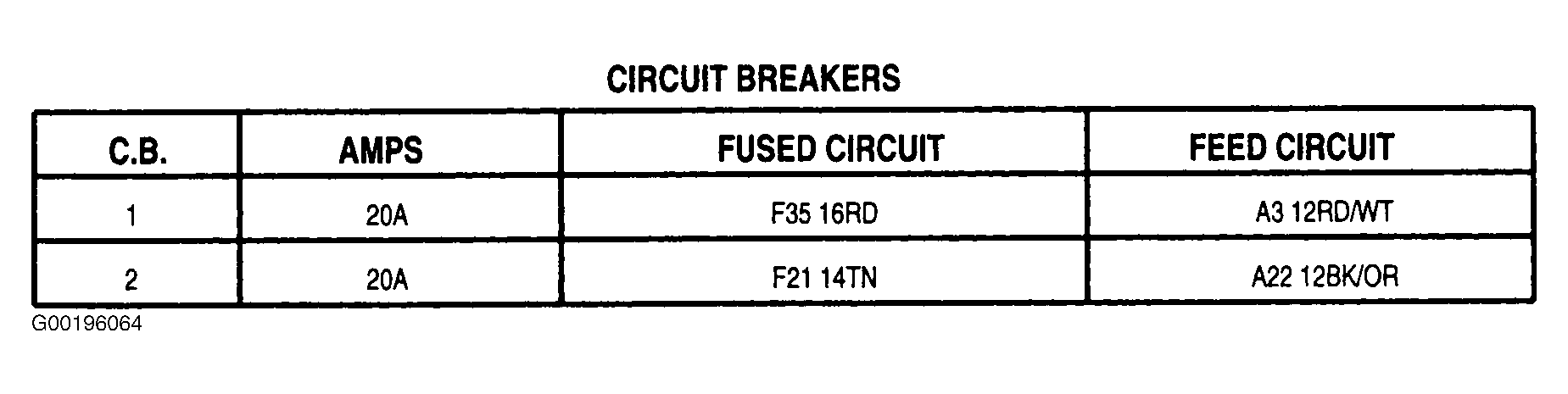

Fig 4: Identifying Junction Block Circuit Breaker Ratings & Circuits

Courtesy of CHRYSLER CORP.

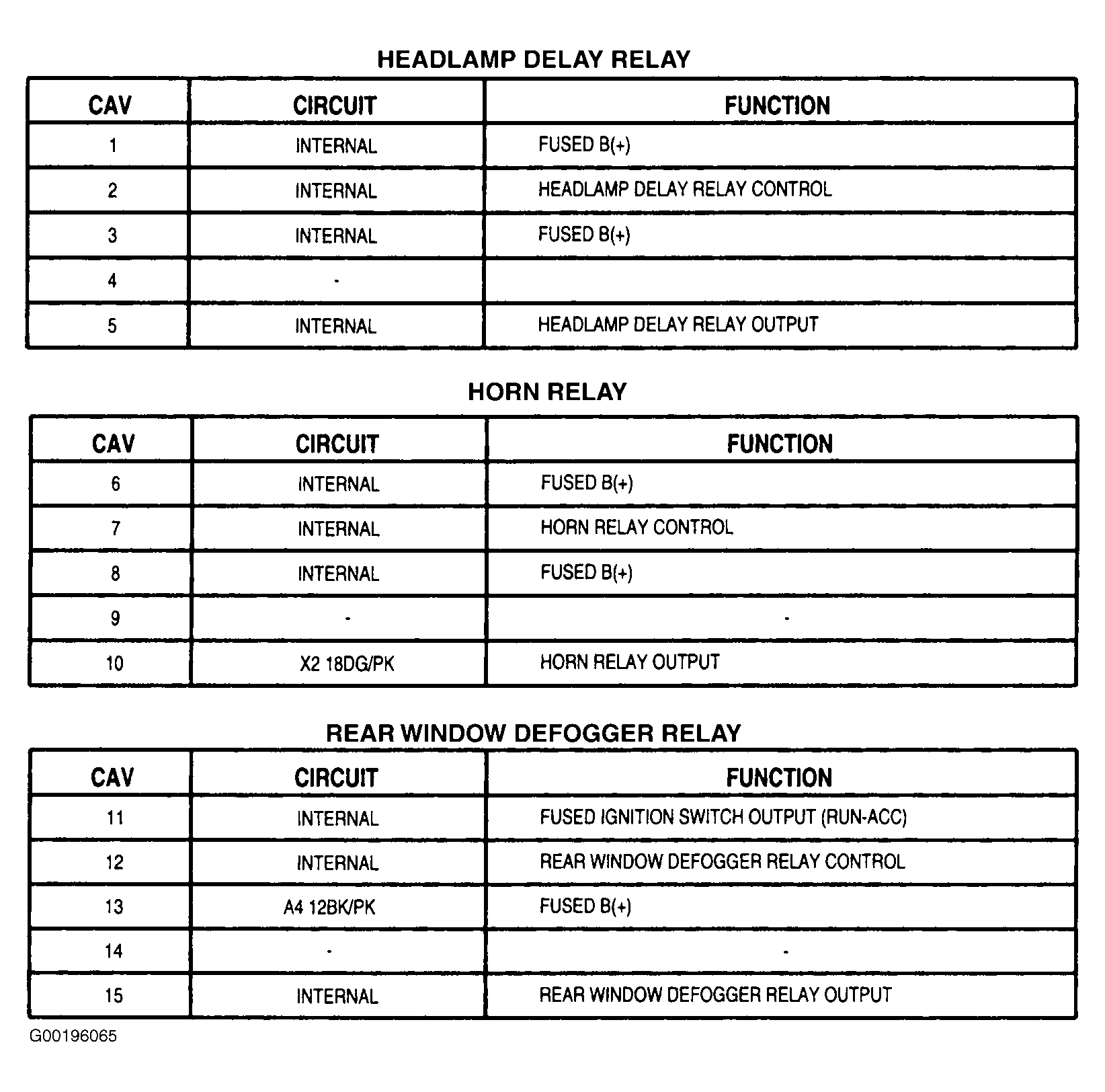

Fig 5: Identifying Junction Block Relays

Courtesy of CHRYSLER CORP.

JUNCTION BOX FUSE & CIRCUIT IDENTIFICATION

Fuse No.	Amperage	Circuit
1	30	Resistor Block, Blower Motor
2	20	Right Headlight, , Daytime Running Light Module-Right High Beam Output, Headlight Switch, Body Control Module-Dimmer Switch High Beam Output
3	20	Left Headlight, Headlight Switch
4	15	Power Top Relay, Left/Right Back Up Light, Transmission Range Sensor, Automatic Day/Night Mirror, Daytime Running Light Module-Fused Ignition Switch Output (RUN), Left/Right Power Door Lock Switch, Power Mirror Switch
5	10	Body Control Module-Fused Battery Voltage, Illuminated Entry, Rear Floor Courtesy Light, Left Power Door Lock Switch, Left Door Courtesy Light, Left Door Arm/Disarm Switch, Right Power Door Lock Switch, Right Door Courtesy Light, Right Door Arm/Disarm Switch, Power Amplifier-Fused Battery Voltage, Power Antenna, Radio-Fused Battery Voltage, Glove Box Light, Data Link Connector, Trunk Light, Traveler, Overhead Map Light, Visor Lights, Automatic Day/Night Mirror, Traveler-Fused Battery Voltage, Universal Garage Door Opener
6	10	A/C Heater Control, Right & Left Power Mirrors (Heated Mirrors), Rear Window Defogger, VTSS
7	20	Instrument Cluster Illumination, Headlight Switch, Traction Control Switch
8	20	Cigar Lighter/Power Outlet, Horn Relay, Horn Switches
9	15	Body Control Module-Fused Battery Voltage
10	20	Daytime Running Light Module-Fused Battery Voltage
11	10	Autostick Switch, Body Control Module-Fused Ignition Switch Output (ST-RUN-OFF), Instrument Cluster, Transmission Control Module
12	10	Daytime Running Light Module-Left Low Beam Output, Left Headlight
13	20	Headlight Switch, Right Headlight, Fog Light Switch
14	10	Radio-Fused Ignition Switch Output (RUN-ACC)
15	10	Seat Belt Control Module-Fused Ignition Switch Output (RUN-ACC), Combination Flasher-Fused Ignition Switch Output (RUN-ACC), Rear Window Defogger Relay, Intermittent Wiper Relay & Wiper High/Low Relay (In PDC)
16	10	Air Bag Control Module, Fused Ignition Switch Output (RUN)
17	10	Air Bag Control Module, Fused Ignition Switch (ST-RUN)
Circuit Breaker 1	20	Trunk Lid Release Relay, Power Seat Switch
Circuit Breaker 2	20	Power Windows
