Input/Output Speed Sensor Check

Disconnect suspect speed sensor connector located on front of transmission. See Fig 1. Using DVOM, measure resistance between terminals of sensor. See Fig 2. Resistance should be between 0.3 and 1.2 k/ohms. If resistance is not as specified, replace suspect speed sensor.

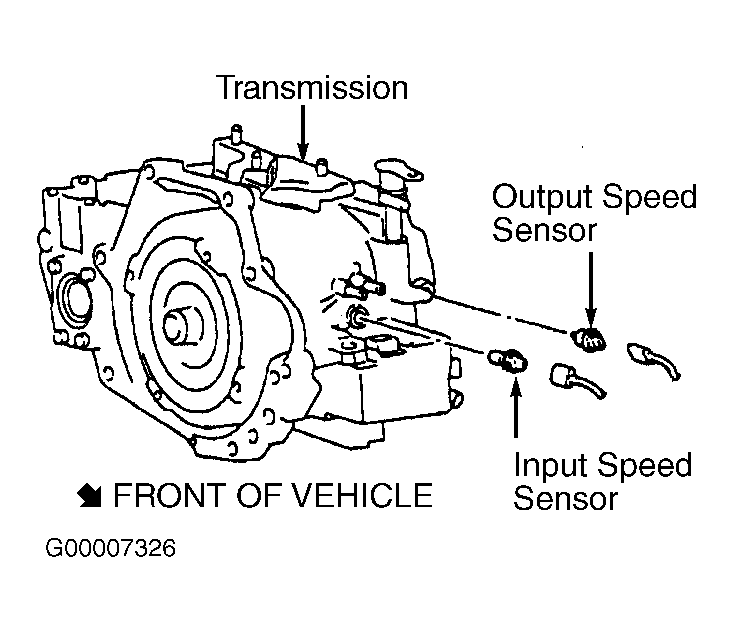

Fig 1: Locating Input/Output Speed Sensors

Courtesy of DAIMLERCHRYSLER CORP.

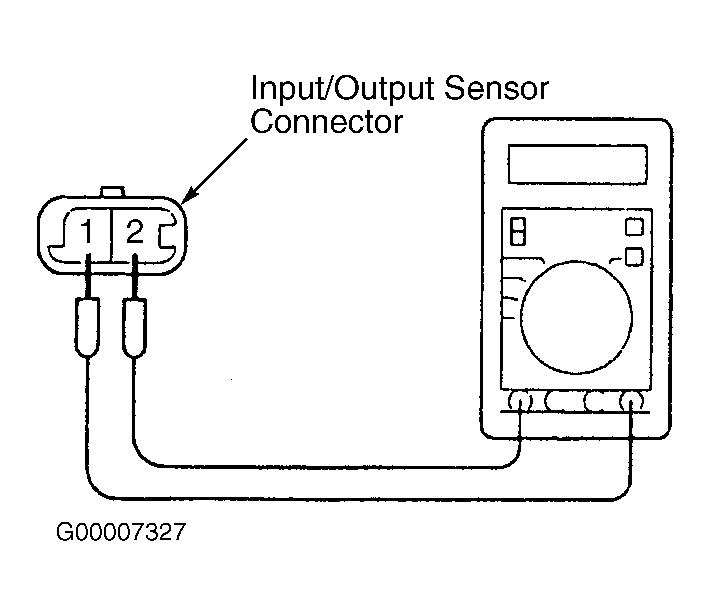

Fig 2: Testing Input/Output Speed Sensors

Courtesy of DAIMLERCHRYSLER CORP.
