Cruise Control Cables: Notes

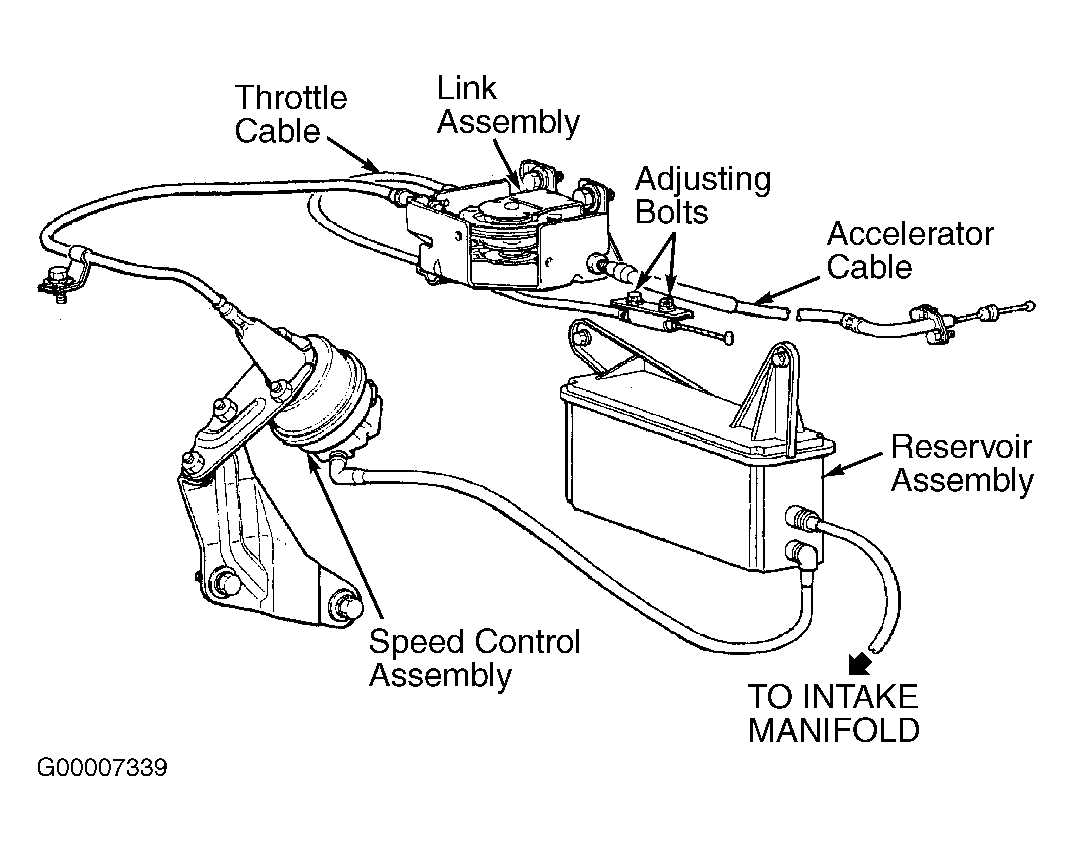

Remove link assembly protective cover. Ensure play of each cable located within the link assembly is within specification. See CRUISE CONTROL CABLE PLAY table. See Fig 1. If there is no play or play is excessive, adjust as necessary.
CRUISE CONTROL CABLE PLAY
| Cable | In. (mm) | ||
|---|---|---|---|
| Accelerator | .08-.12 (2-3) | ||
| Throttle | .04-.08 (1-2) | ||
| Cruise Control | (1) | ||
|
|||
