Latch Striker: Removal

WARNING: This page is about a different car, the 2003 Dodge Intrepid, 2003 Chrysler Intrepid, 2003 Chrysler Concorde, and 2003 Chrysler 300M. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open front door.
  2. Mark location of door latch striker on B-pillar to assist installation alignment.
  3. Remove bolts holding striker to B-pillar (Fig 1 ).
  4. Remove door latch striker from vehicle.

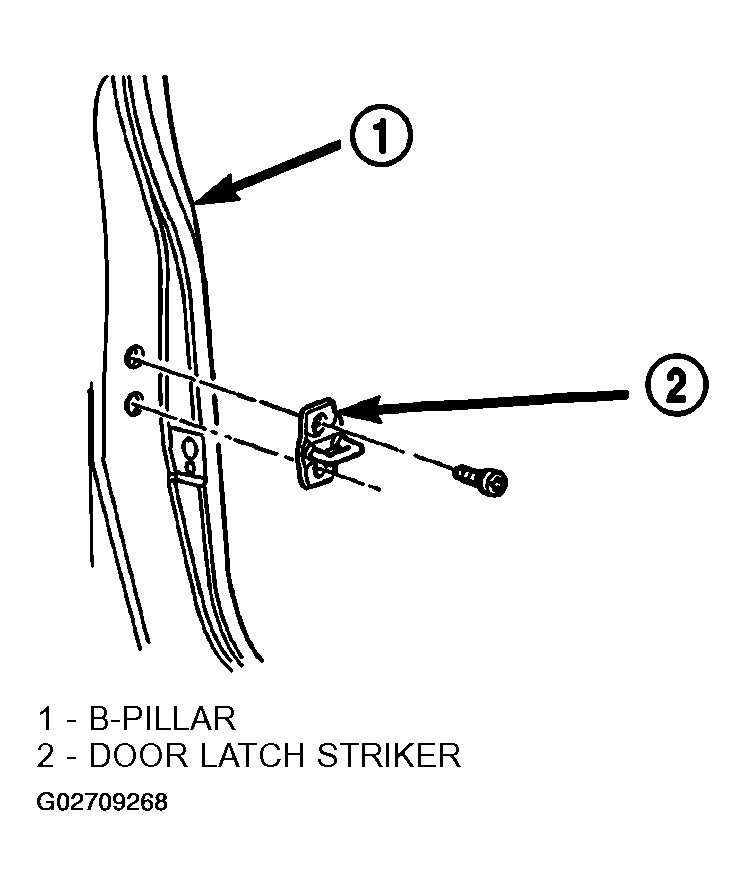

    Fig 1: Removing Front Door Latch Striker
    G02709268Courtesy of DAIMLERCHRYSLER CORP.
