Power Amplifier
Power Amplifier

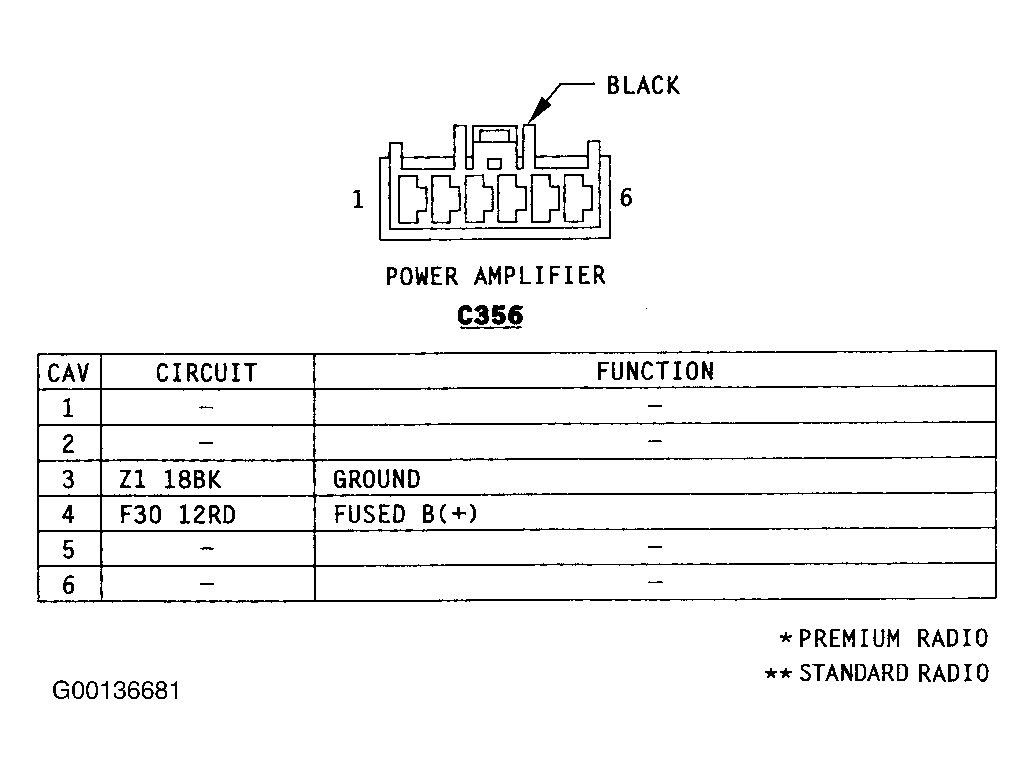

Fig 1: Identifying Power Amplifier C356 Connector Pinout (1995)
Courtesy of CHRYSLER CORP.

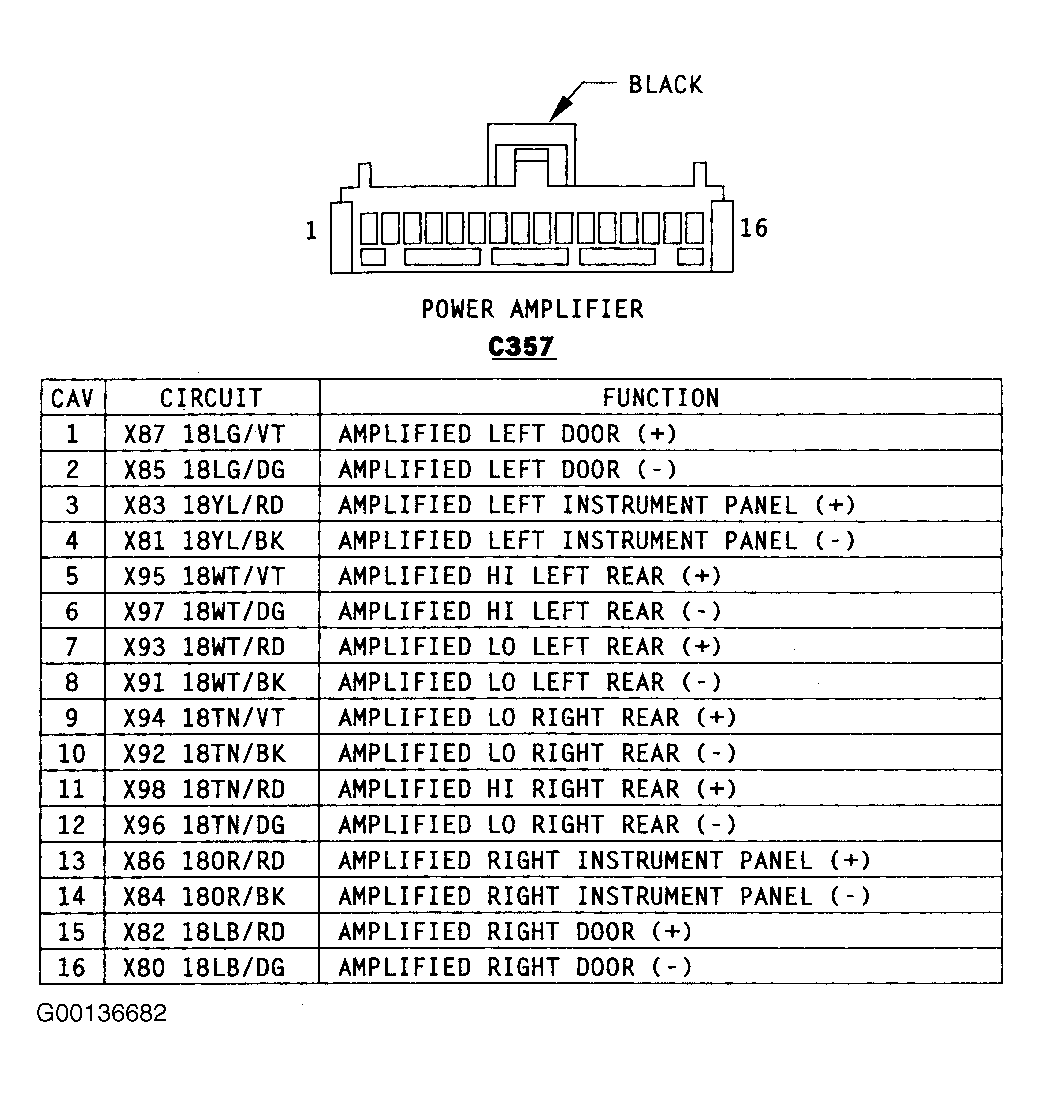

Fig 2: Identifying Power Amplifier C357 Connector Pinout (1995)
Courtesy of CHRYSLER CORP.

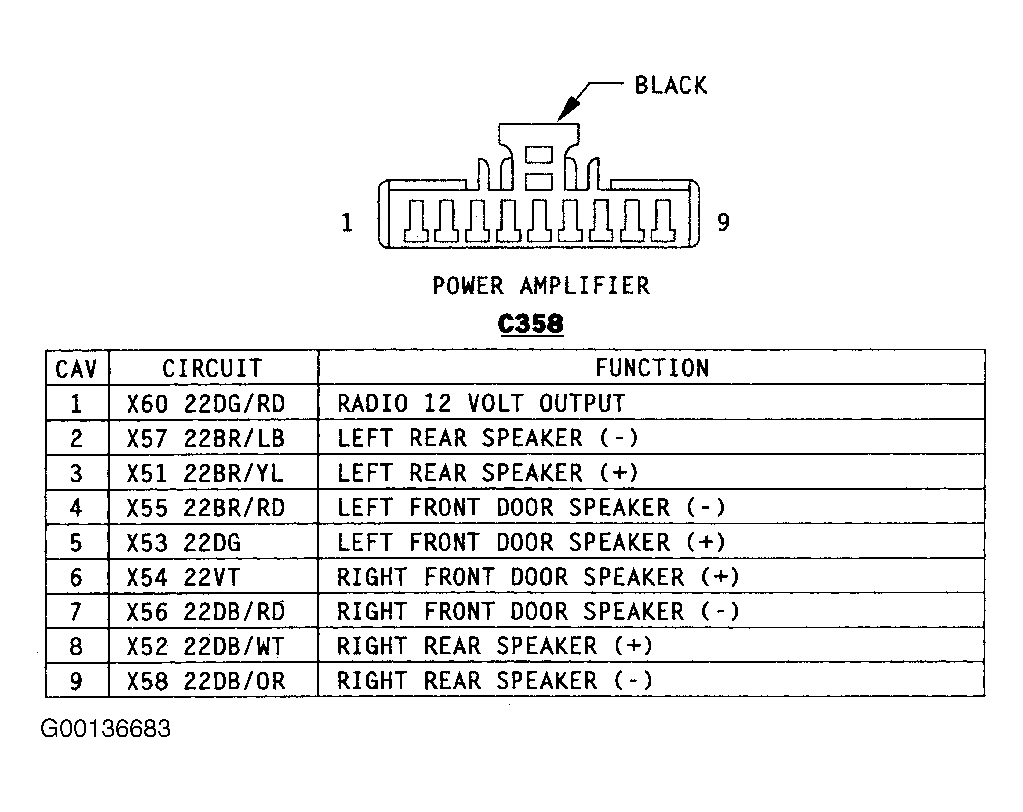

Fig 3: Identifying Power Amplifier C358 Connector Pinout (1995)
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
