Test 21

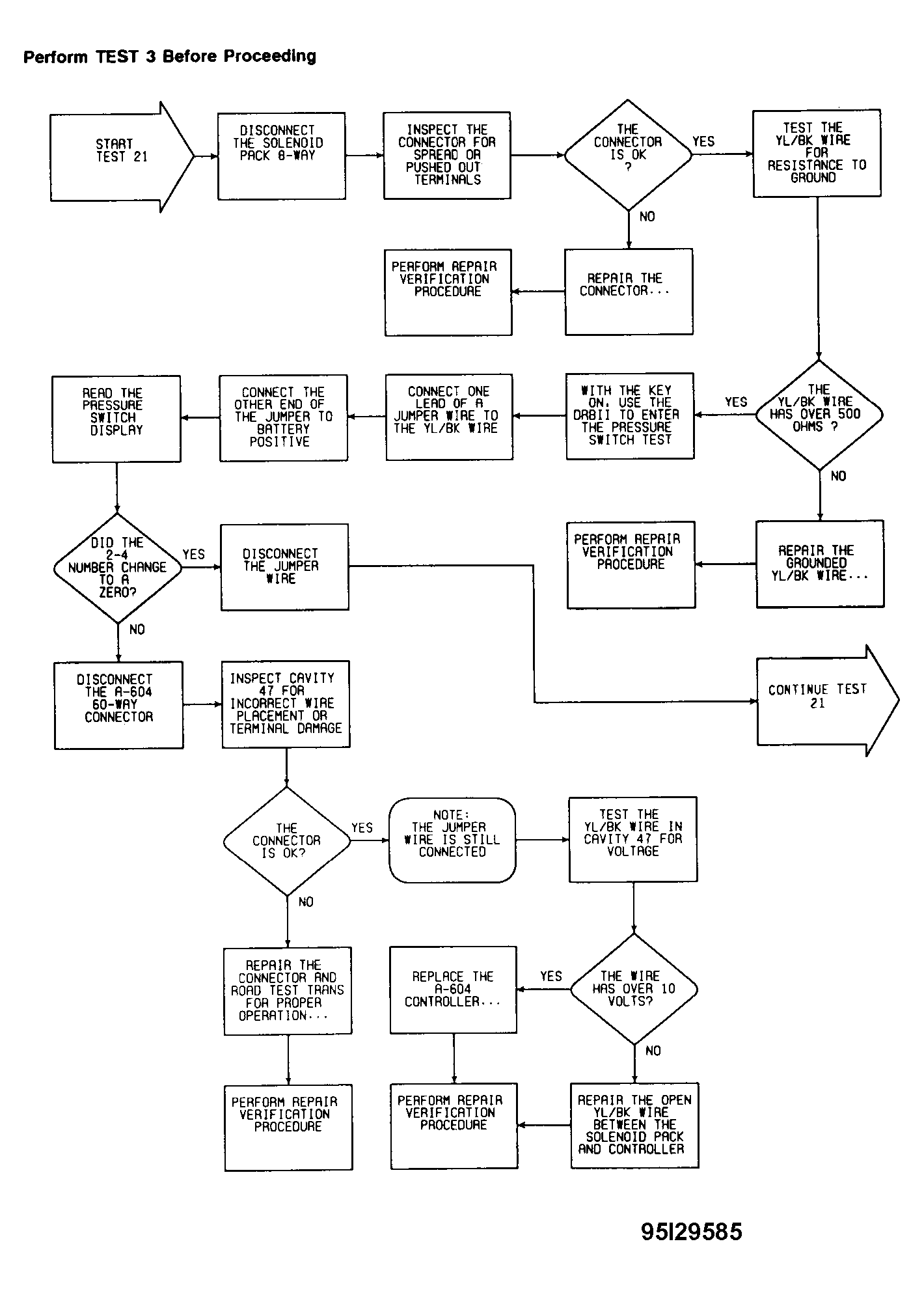

Fig 1: Test-21 Test For Code 27 - All Pressure Switch Circuits (1 of 3)

Courtesy of CHRYSLER MOTOR CORP.

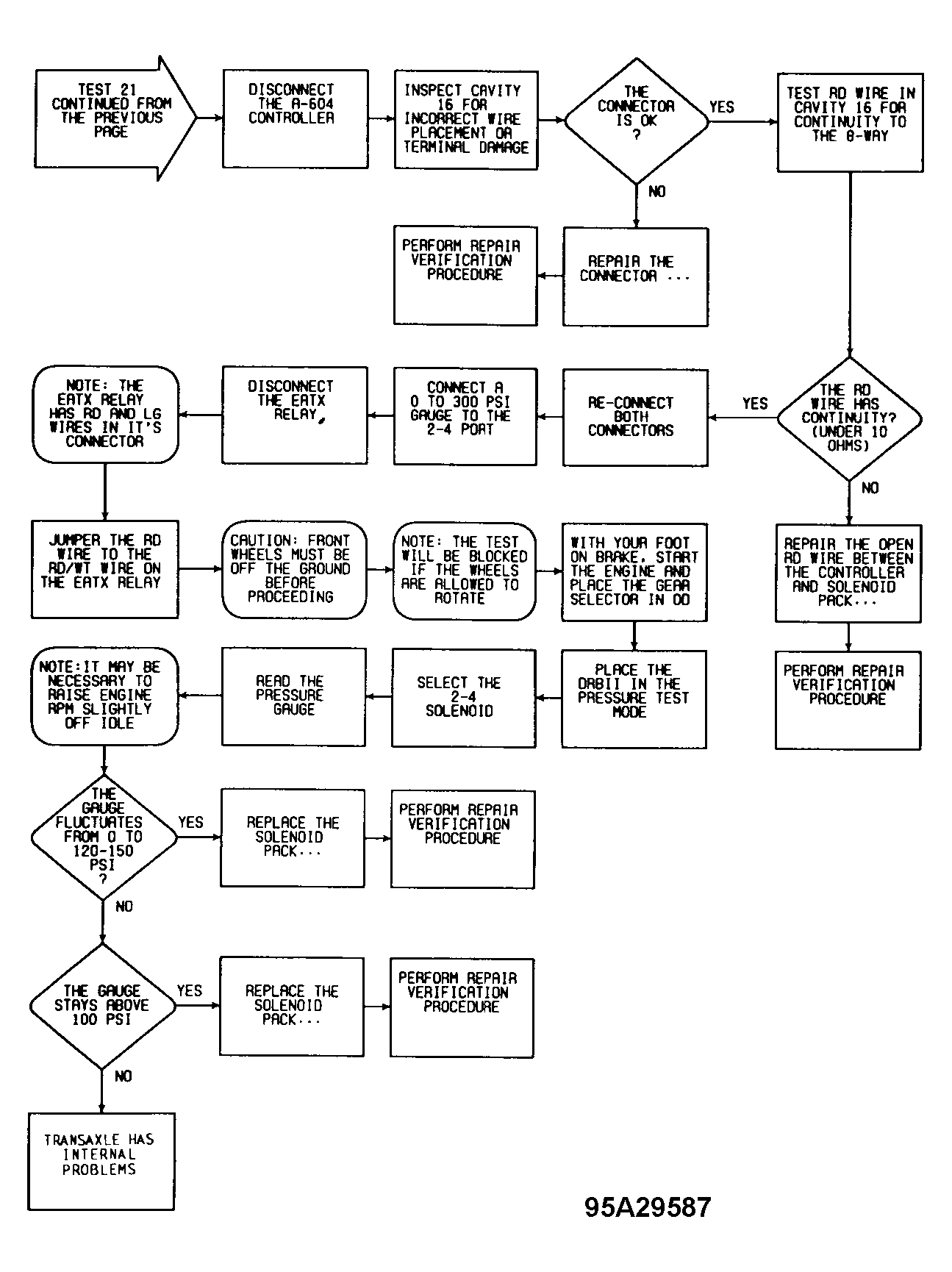

Fig 2: Test-21 Test For Code 27 - All Pressure Switch Circuits (2 of 3)

Courtesy of CHRYSLER MOTOR CORP.

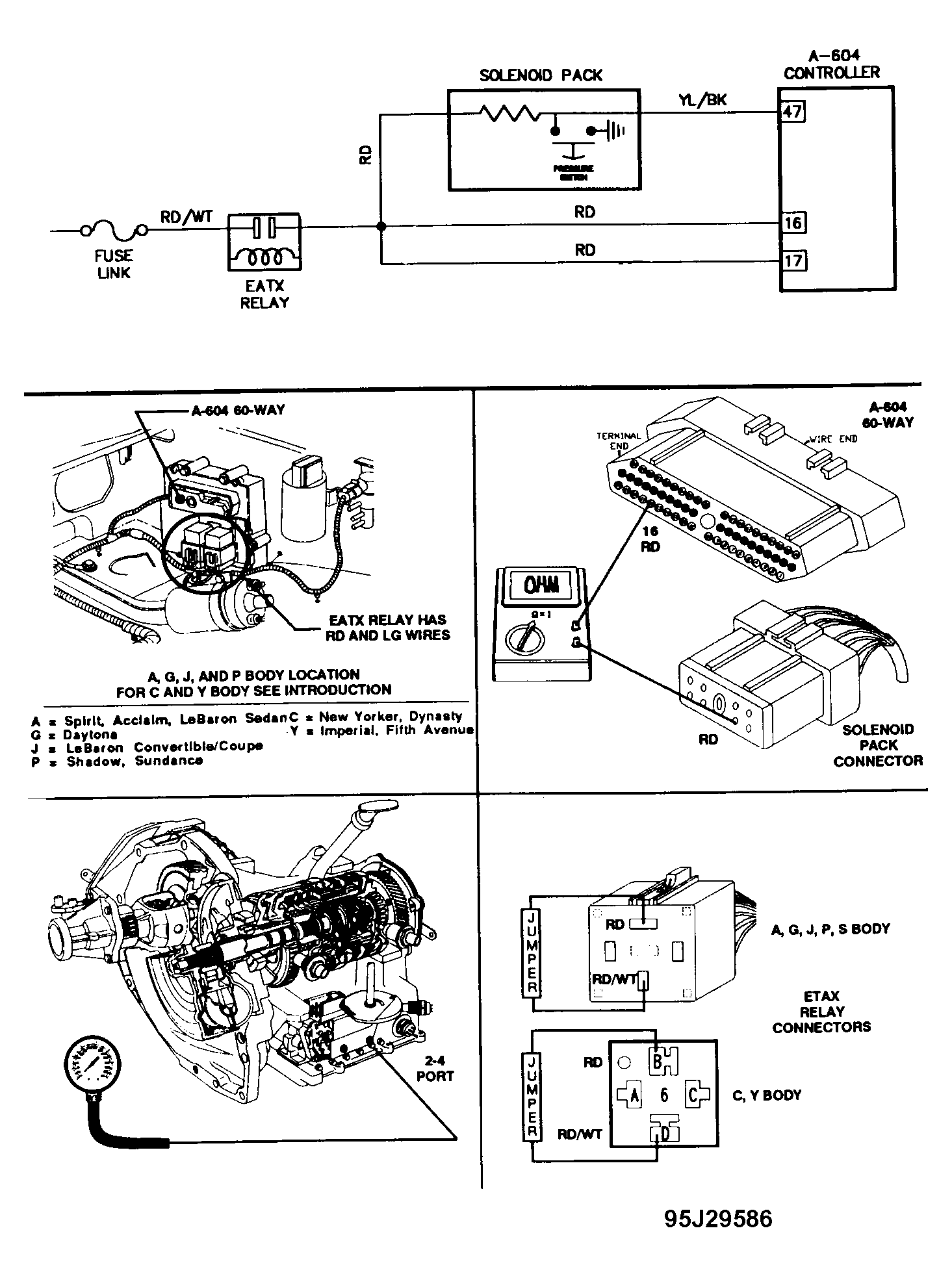

Fig 3: Test-21 Test For Code 27 - All Pressure Switch Circuits (3 of 3)

Courtesy of CHRYSLER MOTOR CORP.
