Test 17

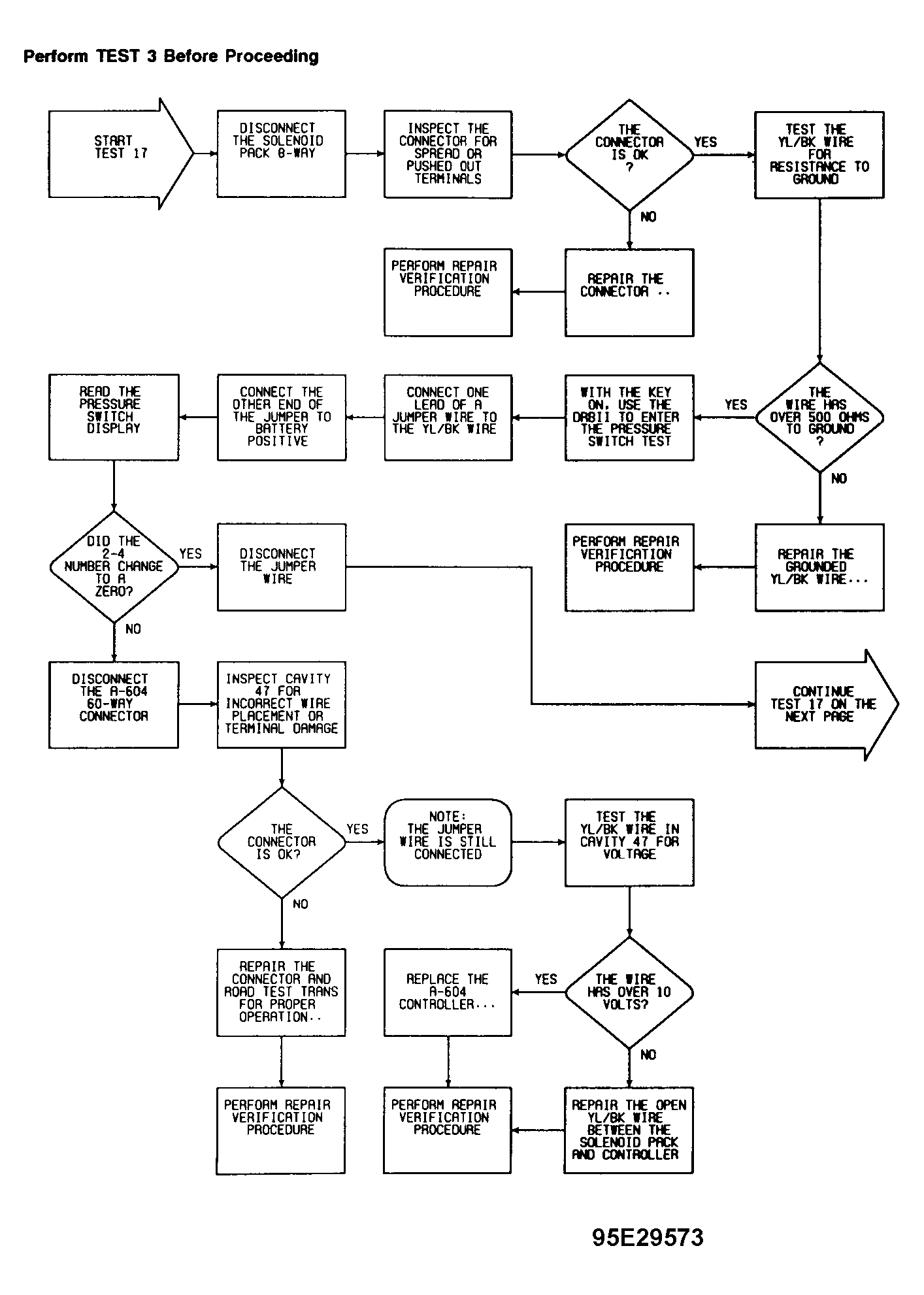

Fig 1: Test-17 Test For Code 23 - 2-4/OD Pressure Switch Circuit (1 of 3)
G95E29573Courtesy of CHRYSLER MOTOR CORP.

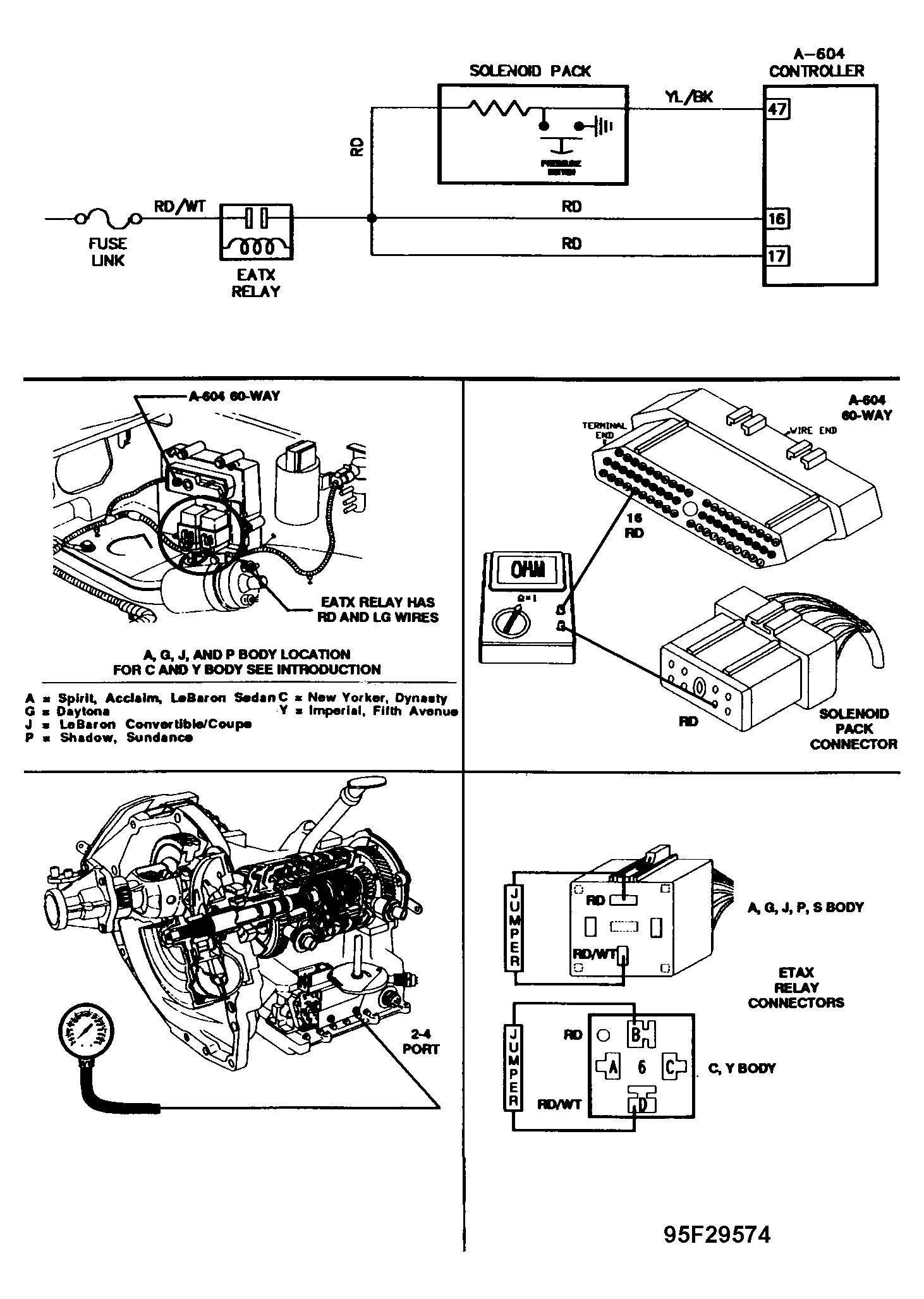

Fig 2: Test-17 Test For Code 23 - 2-4/OD Pressure Switch Circuit (2 of 3)
G95F29574Courtesy of CHRYSLER MOTOR CORP.

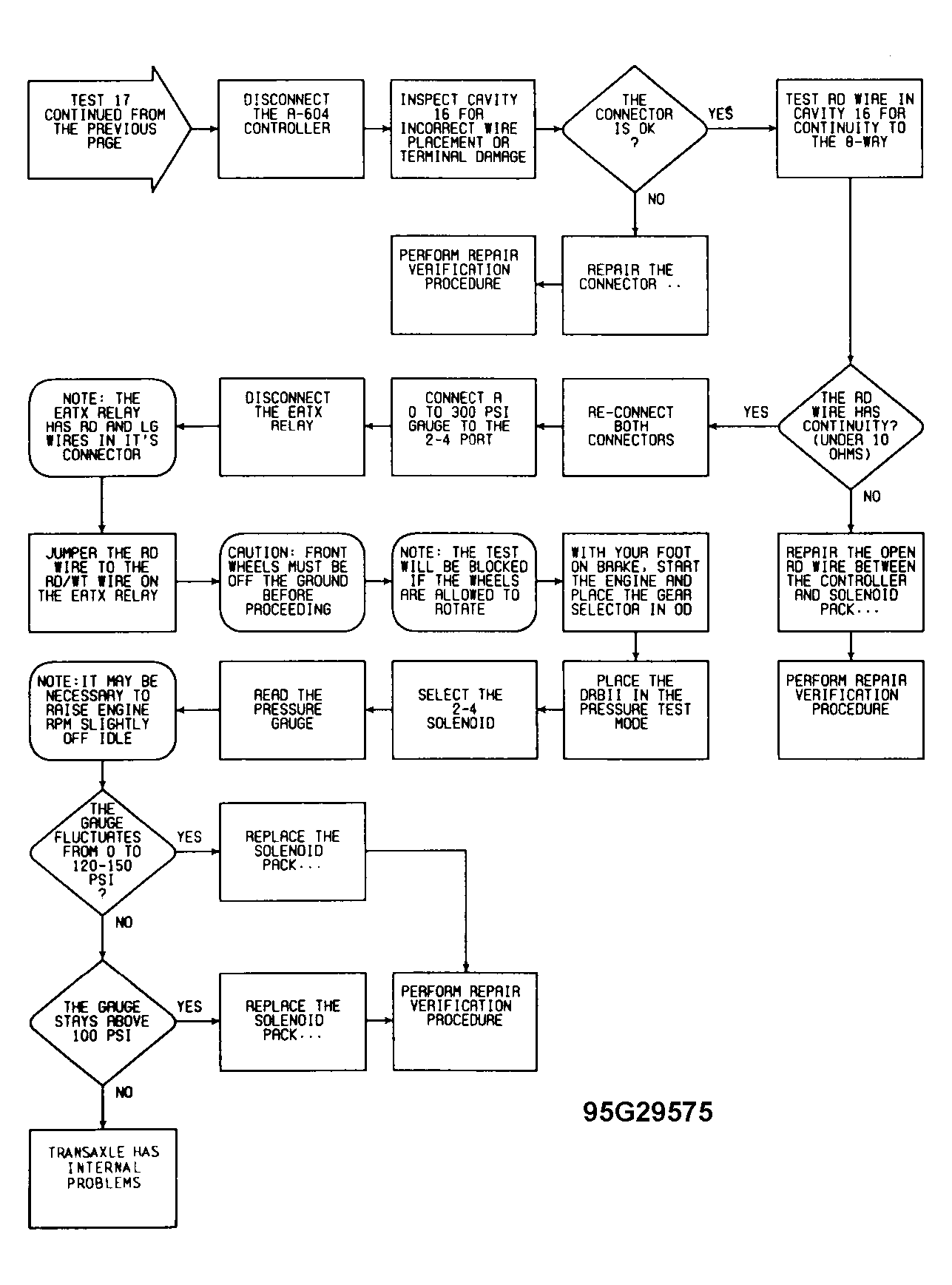

Fig 3: Test-17 Test For Code 23 - 2-4/OD Pressure Switch Circuit (3 of 3)
G95G29575Courtesy of CHRYSLER MOTOR CORP.
