Test 12

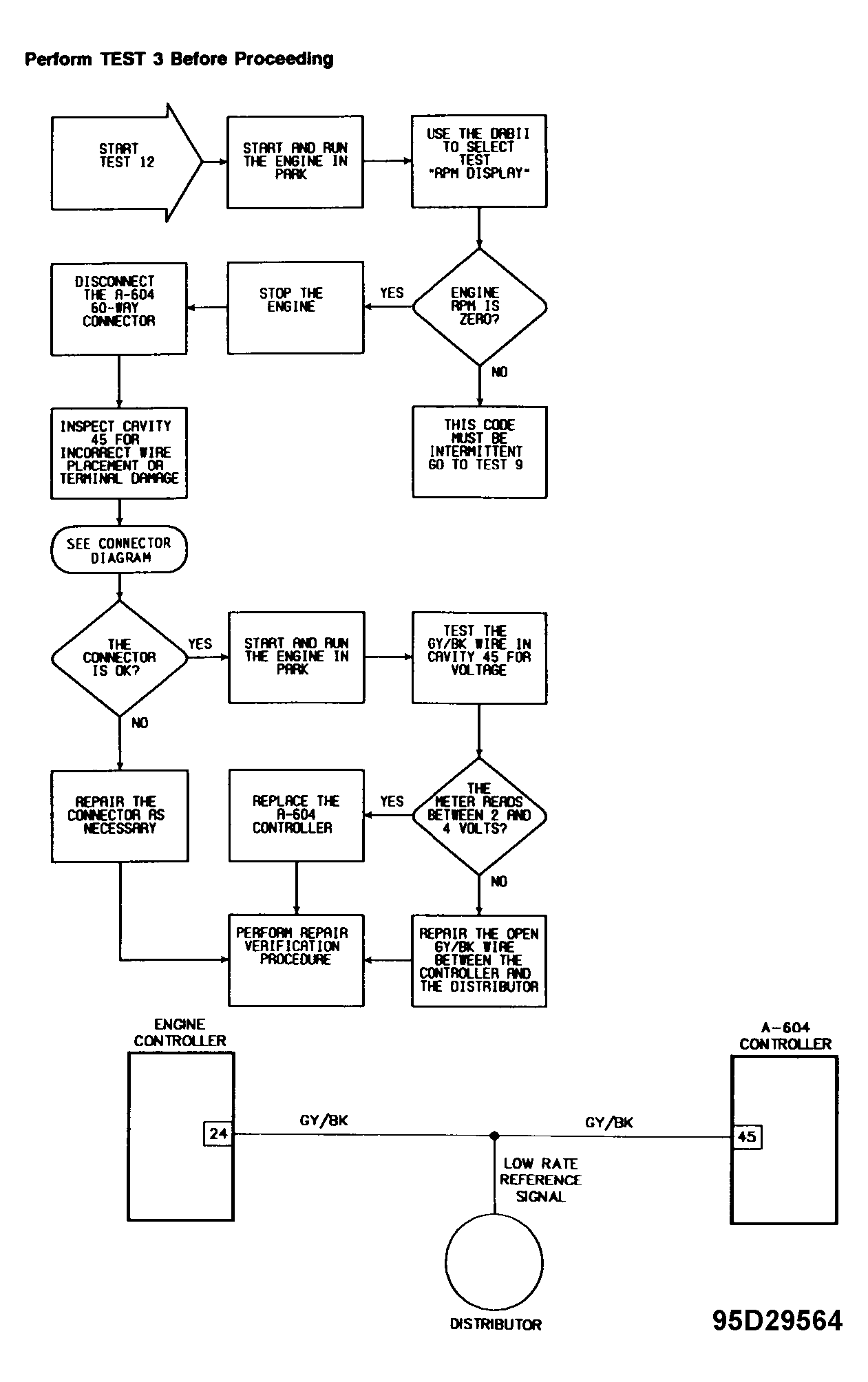

Fig 1: Test-12 Test For Code 18 - Engine Speed Sensor Output

G95D29564

Courtesy of CHRYSLER MOTOR CORP.
